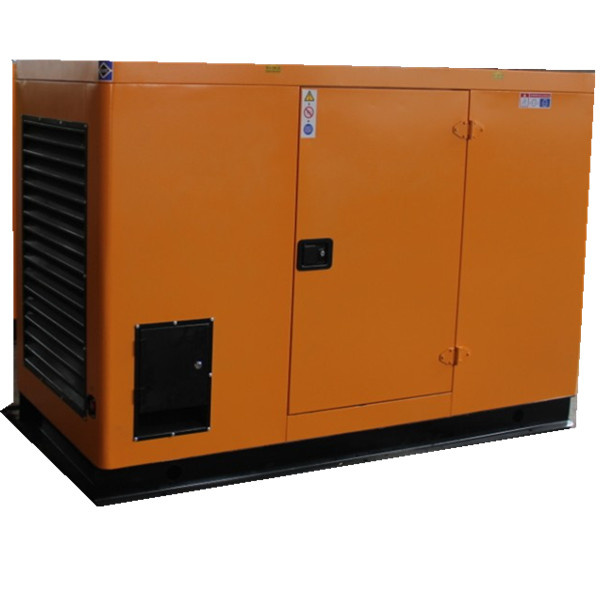

50kVA Silent Diesel Generator Set with Cummins Engine
Description & Feature:
Control Systems:
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
ATS(Fully Automatic) is the configuration with LCD automatic control panel for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.
Soundproof Canopy
All metal canopy parts painted by electrostatic polyester power paint
Soundproof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintenance and operate
Protection of the Environment
Base fuel tank
Base frame including position for forklift and crane
Integral fuel tank
Daily fuel tank continuously supply for 8-24 hours
Fuel tank easy to maintain and clean
Anti-vibration pads are flexed between engine and alternator.
Split type fuel tank
Daily fuel tank continuously supply for 8-24 hours
Easy to maintain and clean
Increase oil
Control protection System
High water temperature
Low oil pressure
Over and under speed
Over current
Under/Over generator voltage
Start and stop failure
Low and high battery voltage
Charge fail
Emergency stop
Optional Configuration
Alternator: Stamford, Stamford, Marathon, Shanghai Lingyu...
Control: Deepsea, Comap, Smartgen, ATS, or regular control panel
Fuel Tank: Base fuel tank, Split type fuel tank,
Soundproof canopy
Mobile Trailer
Canopy
|
Diesel Generator Set Technology Parameters |
|
Type of Set |
KC-40-GF |
|
Frequency(Hz)/Speed (rpm) |
50 / 1500 |
|
Startup mode |
DC24V Electric start |
|
Power (KVA) |
50 |
|
Output Voltage(V) |
400 / 230 |
|
Maximum continuous output current(A) |
72 |
|
Noise LP7m (dB) |
≤85 |
|
Dimensions for set(LXBXH)(mm) |
2600*850*1650 |
|
Weight for set(KG) |
1600 |
|
Dimensions for set(LXBXH)(mm) (with silent canopy) |
2400*1000*1560 |
|
Weight for set(KG)(with silent canopy) |
500 |
|
Diesel Engine Parameters |
|
Engine |
Cummins (Dongfeng) |
|
Type |
4BTA3.9-G2 |
|
Power(KVA) |
62.5-68 |
|
Air discharge (L) |
3.92 |
|
Number of cylinder |
4 |
|
Configuration |
In-line |
|
Type of governor |
Electronic |
|
Stroke |
4 |
|
Rated speed(rpm) |
1500 |
|
Boke/Stroke(mm) |
102/120 |
|
Compression ratio |
16.5:1 |
|
Consumption of fuel (g/kw.h) |
≤210 |
|
Volume of Lub.oil(L) |
11 |
|
Aspiration |
turbocharging |
|
Alternator Parameters |
|
Alternator |
Stamford (Wuxi) |
|
Type |
UCI224D |
|
Engine Power (KVA) |
50 |
|
Voltage Control Mode |
AVR |
|
Rated Voltage (V) |
400 / 230 |
|
Frequency Regulation Ratio(%) |
50HZ / ≤±0.5(Steady-state) |
|
Fluctuate Ratio(%) |
≤±0.5 |
|
Insulation Grade |
H |
|
Excitation mode |
Brushless |
|
Phase number / Connection mode |
Three-phase four wire / "Y" type winding |
|
Efficiency |
0.953 |
|
Voltage Regulation Ratio (%) |
≤±0.5(Steady-state) |
|
Voltage Fluctuate Ratio(%) |
≤±0.5 |
|
Protection Grade |
IP23 |
