This system is a special design system for hybrid using, which is adopted the automobile permanent magnet generator more improve generator efficiency, and equipped with carboform blades so that it can bear strong wind speed, suitable install at seaside or desert area
Technical Parameter:
1. Wind turbine
Rated voltage: 14/28VDC for choice
Rotor diameter: 1.8m
No. Of Blades: 3 PCS
Start wind speed: 3m/s
Cut-in wind speed: 4.0m/s
Cut-out wind speed: 12m/s
2\Hybrid controller
Rated charge voltage: 14/28 VDC
Rated current: 35/18 A
Max. Charge current: 40/20 A
Over charge protect voltage: 14.5/29VDC
Charge recover voltage: 14/28VDC
Over-load voltage: 10.5/21VDC
Over-load recovery: 12/24Vdc
3. Max. Solar power input: 300W
|
Model |
FD-300 |
FD-400 |
FD-500 |
|
Rated power |
300W |
400W |
500W |
|
Maximun power |
330W |
430w |
530w |
|
Rated voltage |
12/24/48V |
12/24/48v |
12/24/48v |
|
Start-up wind turbine |
2.5m/s |
2.5m/s |
2.5m/s |
|
Rated wind speed |
10m/s |
10m/s |
10m/s |
|
Survival wind turbine |
45m/s |
45m/s |
45m/s |
|
Top net weight |
13kg |
13.5kg |
14kg |
|
Wheel diameter |
1.8m |
1.8m |
1.8m |
|
Number of blades |
3 |
|
Blades material |
Nylon fiber |
|
generator |
Three phase permanent magnet ac synchronous generator |
|
magnet |
NdFeB |
|
Generator case |
Casting aluminum alloy |
|
Control system |
Electromagnet/wind wheel yaw |
|
Speed regulation |
Automatically adjust windward direction |
|
Working temperature |
-40°C - 80°C |
|
Design life |
20 y |
|
Gross weight |
16kg |
|
Package Dimension |
950x400x215mm |
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;

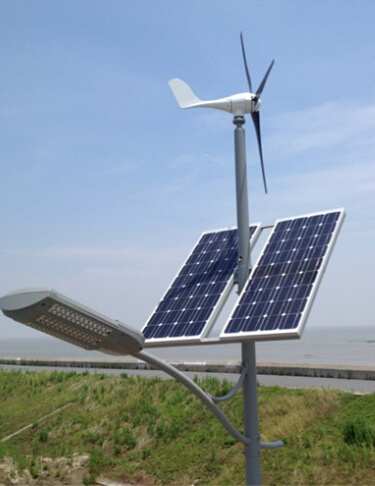

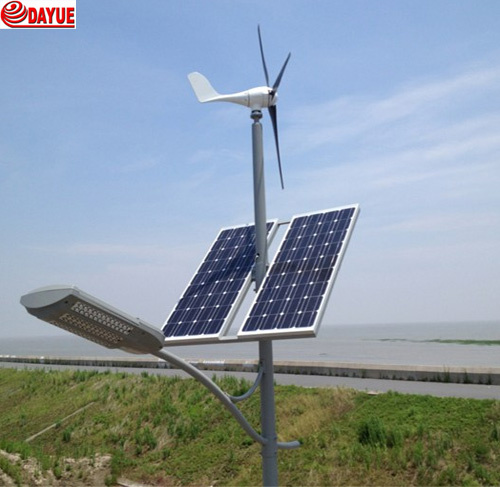

There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.

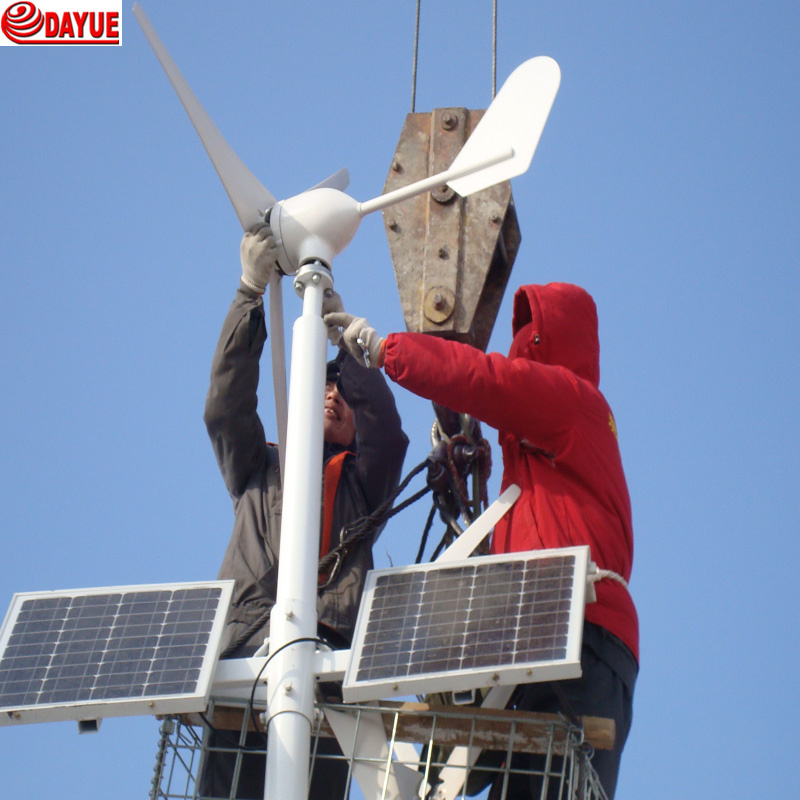

If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
