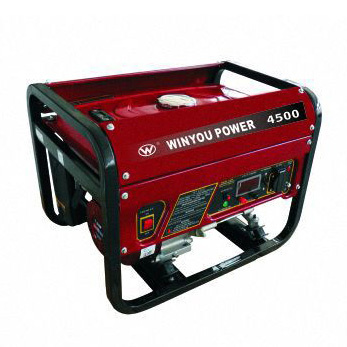

1. 6.5/7kw gasoline Power generator with Electric Start and wheels
2. Low consumption
3. Low vibration/nosie
4. 6.5HP Oil aler
6.5/7kw gasoline power generator with Electric Start and wheels kits
Features and benefits:
6.5/7kw generator with CE/ISO 9001/GS/O certificate
1)It reduce the fuel consumption, stronger the durability and longer the life largely.
2)DC output will be offered as request
3)They possess the feature of starting fast, running steadily and reliable, shocking light, can save the money and time of maintain and mending for you.
4)They are suitable for lighting purposes, stove, refrigerators and so on
|
Model No. |
WY3.5GF-3/3.5GF-4 |
WY4GF-3/4GF-4 |
WY6GF-3/6GF-4 |
Generator
|
Noise(7meters away) |
70db |
72db |
75db |
Rated output frequency |
50hz |
50hz |
50hz |
Rated output voltage |
220v |
220v |
220v |
Rated ouput power |
3.5kw |
4.0kw |
6.0kw |
Max Output Power |
3.8kw |
4.5kw |
6.5kw |
Gasoline Engine
|
Engine Model |
177F/177FD |
182F/182FD |
190F/190FD |
Engine type |
4-stroke, 25 ″ inclinded
single -clinder, air-cooled |
4-stroke, 25 ″ inclinded
single -clinder, air-cooled |
BorexStroke (mm) |
77x58 |
82x64 |
90x66 |
Displacement(ml) |
270 |
337 |
420 |
Compression Ratio |
8.2: 1 |
8.0: 1 |
8.2: 1 |
Theoretical Maximum
Output Power |
6.6kw/3600rpm |
8.0kw/3600rpm |
10.5kw/3600rpm |
Rated output power |
5.4kw/3600rpm |
7.1kw/3600rpm |
8.5kw/3600rpm |
Continuouse Operating |
11.9hr |
40hr |
8.3hr |
Horse Power |
9Hp |
10Hp |
15Hp |
Max Torque |
15.5N. m/3000rpm |
21N. m/3000rpm |
24N. m/3000rpm |
Ignition system |
Non-contact Transistorized
Magneto(TCL) |
Start System |
Recoil Start /Electric Start |
Air Cleaner |
Semi-dry type /Oil bath type |
Fuel Tank Capacity |
25L |
25L |
25L |
Fuel Consumption |
2.1L/hr |
2.45L/h |
3.0L/h |
Oil Capacity |
1.1L |
1.1L |
1.1L |
Packing
Detail |
Dimension (LXWXH)mm |
735x555x580 |
735x565x590 |
735x565x590 |
Net Weight |
67/69KG |
77/79KG |
83/85KG |
60hz-------
Model |
WY5500 |
WY6500 |
WY7500 |
WY8000 |
Engine Specs |
Model |
177F |
188F |
190F |
192F |
Horsepower@3600rpm |
9hp |
13hp |
15hp |
16hp |
Displacement |
270ml |
389ml |
420ml |
435ml |
Starting |
Recoil |
Recoil |
Recoil |
Recoil |
Noise(7 meters amay ) (db) |
69 |
72 |
74 |
74 |
Generator Specs |
Rated Frequency(Hz) |
60 |
60 |
60 |
60 |
Rated Voltage (v) |
220 |
220 |
220 |
220 |
Rated Power output(KVA) |
5 |
6 |
7 |
7.5 |
Max. Power Output(KVA) |
5.5 |
6.5 |
7.5 |
8 |
Standard Feature |
Large-capacity air-cleaner |
Yes |
Yes |
Yes |
Yes |
Large-capacity fuel tank |
Yes |
Yes |
Yes |
Yes |
Large-capacity muffler |
Yes |
Yes |
Yes |
Yes |
Fuel indicator |
Yes |
Yes |
Yes |
Yes |
Voltmeter |
Yes |
Yes |
Yes |
Yes |
AVR |
Yes |
Yes |
Yes |
Yes |
Oil alert system |
Yes |
Yes |
Yes |
Yes |
Circuit breaker |
Yes |
Yes |
Yes |
Yes |
Carton dimension |
730x575x
595 |
730x575x595 |
730x575x595 |
730x575x595 |
Container QTY(20Q/40Q) |
96/256 |
96/256 |
96/256 |
96/256 |
Winyou - Chongqing Winyou Power Co., Ltd, located in Chongqing, China, is a leading manufacturer of power and garden equipment including gasoline and diesel engines, generators, water pumps, pressure washers, lawn mowers, tillers, etc with a variety of technical features.Winyou team have been working in this industry for over ten years with commitment to provide customers with quality, dependability and value.The pursuit of technological innovation and customer satisfaction is always the target of the team.Winyou power and garden products have the following features:
Meeting with local safety and environment standards;
Being designed to well-established and proven specifications;
Being reliable, durable and easy to start;
Having been tested and certified by well-known laboratories;
Coming with comprehensive manufacturer's warranties and services;
Let Winyou power your world!
