| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Model No. | WY3.5GF-3/3.5GF-4 | WY4GF-3/4GF-4 | WY6GF-3/6GF-4 | |
|
Generator |
Noise(7meters away) | 70db | 72db | 75db |
| Rated output frequency | 50hz | 50hz | 50hz | |
| Rated output voltage | 220v | 220v | 220v | |
| Rated ouput power | 3.5kw | 4.0kw | 6.0kw | |
| Max Output Power | 3.8kw | 4.5kw | 6.5kw | |
|
Gasoline Engine |
Engine Model | 177F/177FD | 182F/182FD | 190F/190FD |
| Engine type |
4-stroke, 25 ″ inclinded single -clinder, air-cooled |
4-stroke, 25 ″ inclinded single -clinder, air-cooled |
||
| BorexStroke (mm) | 77x58 | 82x64 | 90x66 | |
| Displacement(ml) | 270 | 337 | 420 | |
| Compression Ratio | 8.2: 1 | 8.0: 1 | 8.2: 1 | |
|
Theoretical Maximum Output Power |
6.6kw/3600rpm | 8.0kw/3600rpm | 10.5kw/3600rpm | |
| Rated output power | 5.4kw/3600rpm | 7.1kw/3600rpm | 8.5kw/3600rpm | |
| Continuouse Operating | 11.9hr | 40hr | 8.3hr | |
| Horse Power | 9Hp | 10Hp | 15Hp | |
| Max Torque | 15.5N. m/3000rpm | 21N. m/3000rpm | 24N. m/3000rpm | |
| Ignition system |
Non-contact Transistorized Magneto(TCL) |
|||
| Start System | Recoil Start /Electric Start | |||
| Air Cleaner | Semi-dry type /Oil bath type | |||
| Fuel Tank Capacity | 25L | 25L | 25L | |
| Fuel Consumption | 2.1L/hr | 2.45L/h | 3.0L/h | |
| Oil Capacity | 1.1L | 1.1L | 1.1L | |
|
Packing Detail |
Dimension (LXWXH)mm | 735x555x580 | 735x565x590 | 735x565x590 |
| Net Weight | 67/69KG | 77/79KG | 83/85KG | |
| Model | WY1200 | WY2200 | WY3500 | WY4500 |
|
PICTURES |
Bitmap | Bitmap | Bitmap | Bitmap |
| Engine Specs | ||||
| Model | 156F | 168FA | 168FB | 170F |
| Horsepower@3600rpm | 3.0hp | 5.5hp | 6.5hp | 7.0hp |
| Displacement | 97.7ml | 163mlml | 196ml | 208ml |
| Starting | Recoil | Recoil | Recoil | Recoil |
| Noise(7 meters amay ) (db) | 63 | 63 | 65 | 65 |
| Generator Specs | ||||
| Rated Frequency(Hz) | 60 | 60 | 60 | 60 |
| Rated Voltage (v) | 220 | 220 | 220 | 220 |
| Rated Power output(KVA) | 1 | 1.8 | 3 | 4 |
| Max. Power Output(KVA) | 1.2 | 2.2 | 3.5 | 4.5 |
| Standard Feature | ||||
| Large-capacity air-cleaner | Yes | Yes | Yes | Yes |
| Large-capacity fuel tank | Yes | Yes | Yes | Yes |
| Large-capacity muffler | Yes | Yes | Yes | Yes |
| Fuel indicator | Yes | Yes | Yes | Yes |
| Voltmeter | Yes | Yes | Yes | Yes |
| AVR | Yes | Yes | Yes | Yes |
| Oil alert system | Yes | Yes | Yes | Yes |
| Circuit breaker | Yes | Yes | Yes | Yes |
| Carton dimension(mm) | 460x365x440 | 645x490x490 | 645x490x490 | 645x490x490 |
| Container QTY(20Q/40Q) | 390/780 | 390/780 | 160/420 | 160/420 |

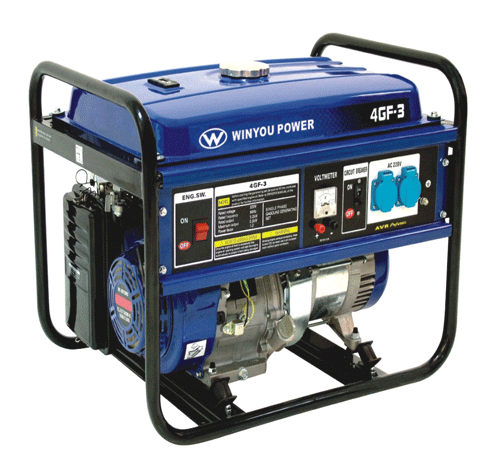

| Prod Model: | WY4GF-3/4GF-4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | One Year, with Spare Parts |
| Starter: | Electric Start/Recoil |
| Engine: | Petrol/Gasoline, Horizontal Shaft |
| Output Type: | AC Single Phase |
