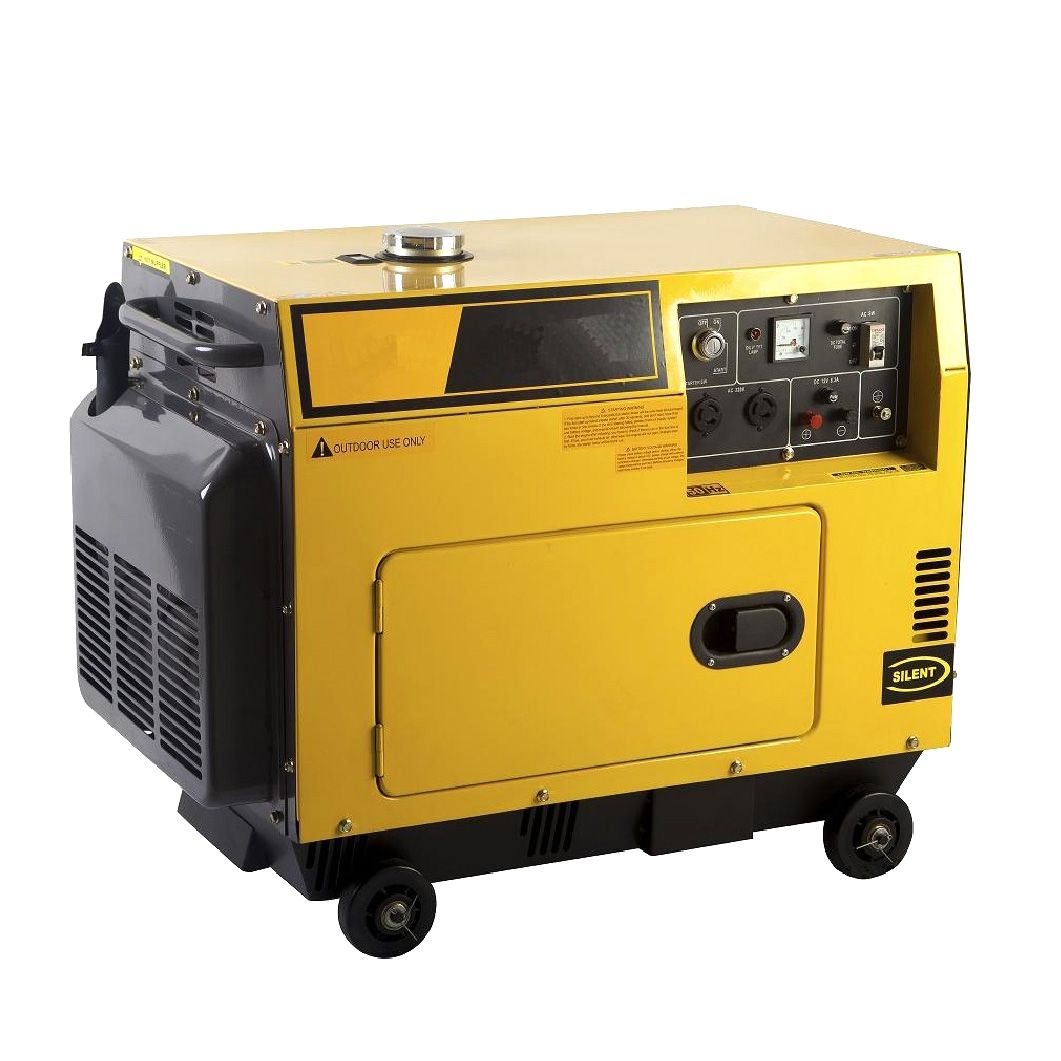

6.0kva silent portable diesel generator--wind cooling
* Easier and more convenient electric starter
* New AVR(Automatic Voltage Regulator)
Stablizes the output power
* Low oil level alarming system will automatically
Stop the generator when lube oil is less than the set value
* A traditional open frame generator with a rugged and durable frame
MODEL |
WD D6500X3/E3/T3/TA3 |
Genrator |
Rated frequency |
Hz |
50 |
60 |
Rated output |
KVA |
5.5 |
6.3 |
Max. output |
kVA |
6 |
7 |
Rated Voltage |
V |
230/400 |
240/416 |
Rated current |
A |
7.9 |
8.7 |
Rated rotation speed |
rpm |
3000 |
3600 |
Phase NO. |
|
Three phase four line, "Y" connection |
Power factor |
|
0.8(lag) |
Insulation Grade |
|
B |
Pole number |
|
2 |
Excitation mode |
|
Self-excitation and constant voltage(AVR) |
Panel Type |
|
X3/E3/T3:General Panel TA3:Digital Panel |
Output |
Voltagge |
V |
230/400 |
240/416 |
Receptacle |
|
One singl-phase & one three-phase receptacles |
Connection pole |
|
Without |
DC12V output |
|
Without |
Overall dimension: L×W×H |
mm |
X3/E3:720×492×650 T3/TA3:912×532×740 |
Dry weight |
Kg |
X3:95 E3:100 T3:171 TA3:171 |
Working assorting weight |
Kg |
X3:110 E3:115 T3:187 TA3:187 |
Noise level(7m) |
dB(A) |
X3/E3:79 T3/TA3:72 |
Structure type |
|
X3/E3:Open frame T3/TA3:Silent |
Engine |
Engine Model |
|
WD 186FA |
Engine Type |
|
Single cylinder, vertical, four-stroke, direct injection |
Cylinder NO.-bore×stroke |
mm |
1-86×72 |
Displacement |
ml |
418 |
Rated power |
KW |
5.7/3000 |
6.3/3600 |
Compression ratio |
|
19:1 |
Rated rotation speed |
r/min |
3000 |
3600 |
Combustion system |
|
_ |
Cooling system |
|
Air cooled |
Lubrication system |
|
pressure splashed |
Starting system |
|
X3: Recoil starter E3/T3/TA3: Electric starter |
Fuel type |
|
0#(summer)-10#(winter)-35#(chillness)diesel |
Lube oil brand |
|
SAE10W30(above CD grade) |
Capacity of cooling water |
L |
Without |
Lube capacity |
L |
1.65 |
Starting motor capacity |
V-kW |
12V 0.8kW |
Charging generator capacity |
V-A |
12V 3A |
Battery capacity |
V-Ah |
12V 36AH |
Fuel consumption |
g/kW.h |
275.1 |
281.5 |
Fuel tank capacity |
L |
X3/E3:15 T3/TA3:16 |
Continous running time |
h |
X3/E3:8 T3/TA3:9.5 |
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
