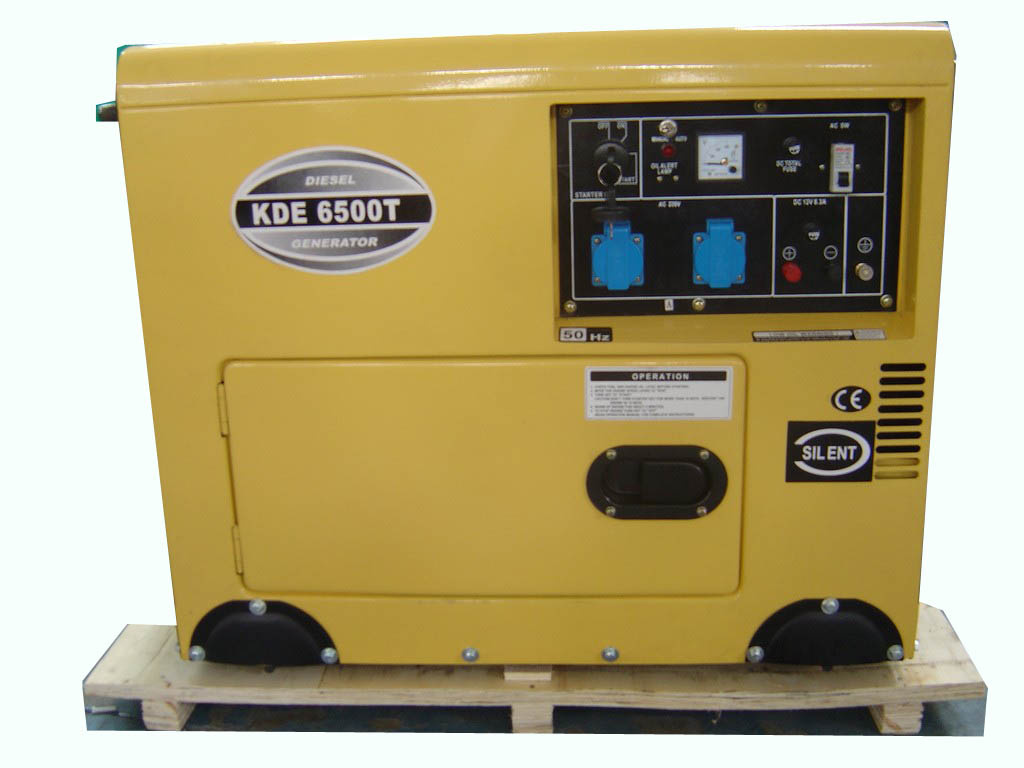

KDE6500T CE Approved 5KW Slient generator
FrequencyHZ 50 60
Output power (kVA) 4.5 5
Max. power (kVA) 5 5.5
Voltage (V) 115/230 120/240
Current (A) 39.1/19.6 41.7/20.8
Rated speed (r/min) 3000 3600
Phase Single Phase
Power factor 1
Excitation system Self-excited constant voltage(AVR)
Noise level7mdBA Type T:72
Fuel tank capacity(L) Type T:15
Structure Type T: silent
Panel Ordinary Panel
Output socket Two
Output terminal post No
DC12V output Terminal post
Net weight (kg) Type T:158
Dimension (L*W*H)(mm) T:970*558*768
Engine model KA186FA
Engine type Single-cylinder, vertical, four-stroke, air-cooled, direct injection
Cylinder Bore Diameter X stroke(mm) 86X72
Displacement (L) 0.418
Power (kW) 5.7/3000 6.3/3600
Fuel consumption rate(g.kW/h) 275.1 281.5
Compression ratio 19
Lubrication system Pressure splash Type
Engine starting system Type T: Electric starter
Diesel oil model Summer:0#, Winter:-10#
Lube oil model SAE10W-30 (above CD grade)
Lube oil capacity (L) 1.65
Battery capacity (V-AH) 12V-36Ah
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
