This vertical turbine is adopted maglev axis and can be used for on-grid and off-grid, we also supply complete system including the grid tie controller, grid tie inverter ,free standing tower or hydraulic tower optional .
2. Wind Turbine Models Optional For Your House
- 1KW, 2KW, 3KW Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc. pls note that it is difficult to use this unit power air condition or bigger water pump ,as well as electric water heater etc .
- 5KW, 10KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-2 sets of air condition with 1 or 1.5P, and all of normal home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.
PS: if you want to know clearly and completely the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-5KW wind turbine complete installing steps and working conditions.

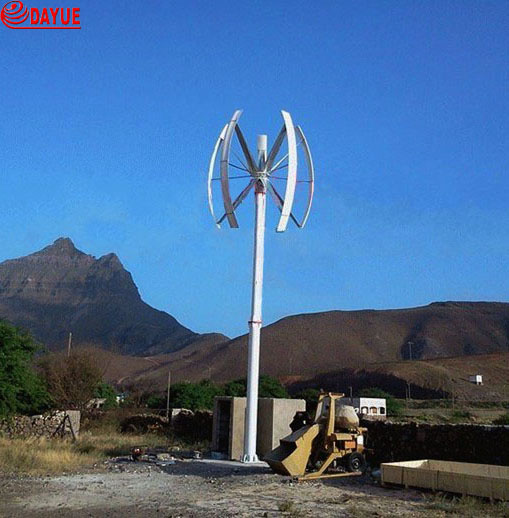

5kw Vertical Axis Wind Turbine (FDV-5kW)
This vertical axist wind turbine can be used for on-grid or off-grid, there're on-grid and off-grid controller and inverter we supply for this turbine.
2. Wind Turbine Models Optional For Your House
- 1KW, 2KW, 3KW Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc. pls note that it is difficult to use this unit power air condition or bigger water pump ,as well as electric water heater etc .
- 5KW, 10KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-2 sets of air condition with 1 or 1.5P, and all of normal home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.
1.JD and FDV Series Wind Turbine Features :
-FDV-1KW-5KW VAWT (Vertical axis) which is running from 2m/s- 25m/s wind speed ,it is adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop.
-JD-1KW-5KW HAWT (variable pitch blades) wind turbine can run from 3m/s -25m/s wind speed ,
it can be braked by disc-brake mechnism for automatic or manual way , it is a high quality ,high safety and high power generation efficiency wind system
- 5KW, 10KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-2 sets of air condition with 1 or 1.5P, and all of normal home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.
Numbers of Blade | 5 pcs |
Material of Blade | FRP Complex Resin |
Diameter of Wind Rotor | 6m |
Start (out-in) wind speed | 2.5m/s |
Wind Rotor height | 3.9m |
Security wind speed | 50m/s |
Wind energy ratio | 45% |
Generator rated power | 5KW |
Max output power | 7.5KW |
Generator Type | Three phase Permanent magnet generator |
Output power from Generator | 0-415V |
Charging voltage | 240Vdc |
Output voltage of Inverter | Single phase 220-240Vac/50HZ or 110-130Vac /60HZ |
Stop method | By manual or Automatic Brake |
Tower type | Galvanized Free Standing Tower, hydraulic tower for optional |
Tower height | Standard height is 12m, and therere 15m, 18m, 20m for optional |
Charging control | Intelligent control full-automatically (with overcharge protection) |
Inverter power supply | Pure sine wave |
Battery Matching (off-grid system) | 20Pcs 12V-150AH Lead-acid or colloid batteries |
Grid tied inverter matching | 10KW Grid tied inverter( or 1 X Windy boy 6000A) |
Time of charging (off-grid type) | About 12 hours |
Packing Details | Parts' Name | Dimension | Gross Weight |
Blades and connection pole | 4100× 1400× 950 mm | 292kgs |
Tower and accessory | 8100× 430× 400mm | 1380kgs |
Wind Turbine & accessory | 2100× 255× 103 mm | 230kgs |
Controller | 385× 517× 272 mm | 80kgs |
PS: if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-5KW wind turbine complete installing steps and working conditions.
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
