Company specializes in designing and manufacturing medium-small-sized gasoline generators, Diesel Generator Set, electric generators, air compressors, all kinds of motors, gasoline power pumps and woodworking machinery, mortise machinery; Not only company has more than 50 technicians and engineers with high degree, a professional training managing backbone team with modern controlling system, but also has advanced automatic test equipment for electrical performance and software system in products exploitation and design. And we will always insist on the ISO9001, UL, GS, CE managing in all-directions.
|
Model |

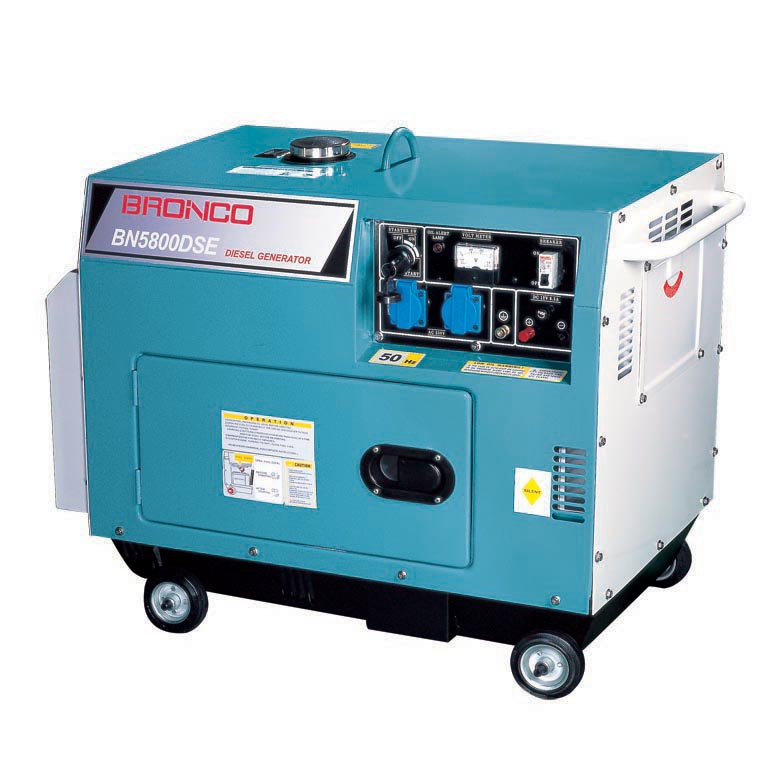

BN5800DSE/B |
|
Generator |
Rated Frequency (Hz) |
50 |
60 |
|
Rated power (Kw) |
4.5 |
5 |
|
Max. Power(KW) |
5 |
5.5 |
|
Rated Voltage (V) |
120,220,230,240,110/220,120/240 |
|
DC Output |
12V/8.3A |
|
Phase Number |
Single |
|
Excitation Mode |
Self-excitation and constant voltage |
|
Power Factor (cos) |
1 |
|
Engine |
Engine Model |
186FA |
|
Bore Stroke(mm) |
86*72 |
|
Displacement (cc) |
418 |
|
Rated Speed (R/Min) |
3000 |
3600 |
|
Fuel Consumption(G/KW.H) |
360 |
|
Fuel Tank Capacity (L/US.Gal) |
15/3.96 |
|
Continuous Running Time (HR) |
8 |
|
Unit |
Starting system |
Electric start |
|
Noise Level(dBA/7m) |
72 |
|
Net weight (kg/lbs) |
165/363.8 |
|
Dimension(L*W*H) (mm)/(inch) |
930*520*685 |
|
36.6*20.5*27.0 |
|
Packing (mm)/(inch) |
950*550*770 |
|
37.4*21.7*30.3 |
|
Container Qty (20FT/40FT/40HQ) |
48/96/144 |
Bronco (Zhejiang) Electric Machinery Manufacturing Co., Ltd. is located in the beautiful Taizhou Economic Development Zone, where occupies an area of 40, 000 square meters.
BRONCO is a company that combines the development, manufacturing, and marketing of gasoline generators, diesel generators, water pumps, air compressors.
We possess advanced production testing equipment and a modern quality management system, and have always implemented comprehensive quality control through strict adherence to ISO9001 standards. Furthermore, our products have also passed GE, CE, EMC certification.
The company has adopted horizontal integration, and product development is both supported by scientific research institutions and LED by the demands of the market. We actively incorporate advanced technology, materials and production processes so as to constantly develop new products - some of which already meet the highest standards within China.
Our products are sold throughout the world in regions such as Europe, America, the Middle East, Southeast Asia, and Africa, where we have built up a complete sales network. In Dubai, the economic heart of the Middle East, we have created a sales branch, and have won the trust and support of customers through our outstanding products and consummate service.
