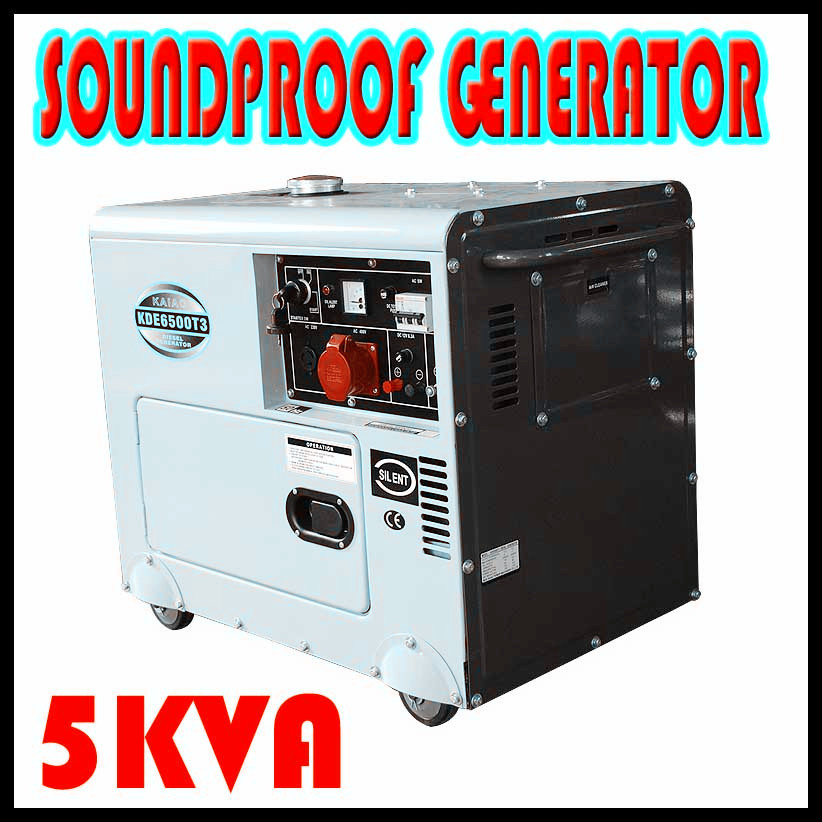

This series of portable diesel generator set are manufactured by Kaiao power.
Brief introduction:
Portable
Small scale, portable design with open-frame suit for many working conditions, such as camping, home, field...
More Silent
Equipe with high quality muffler, reduce some noise till 77dB, does not affact normal life and work. The generators cover with soundproof hood with completely closed construction attach sound absorption cotton to reduce the noise significantly, but also keep the rain, dust and water, rust, fire as well.
Feature
This one is the common type of this series, with AVR(Automatic Voltage Regulator)-which ensure steady voltage output and protect the machine against the over load-, low oil pressure alarm system, -which protect the machine from abrading-, also it can be installed by electric starting with storage battery.
Ground system is equipped to secure the human safety. ATS system ca automatically switch between main power and backup generator. Also it can be installed remote starter.
The enlarged all-in-one fuel tank lengthens the every run time.
Other
All the end of line connection are arranged orderly in the control panel make maintence more convenient.
Clear panel and customized sockets, is easy for operating.
This series are certificated with CE, ISO9001.
| Diesel generator set KDE6500T3 |
| Model | KDE6500T3 |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 5.5 | 6.3 |
| Max. Power(KVA) | 6 | 7 |
| Voltage (V) | 230/400 | 240/416 |
| Current (A) | 7.9 | 8.7 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Three |
| Power factor(cosφ) | 0.8 |
| Excitation system | Self-excited constant voltage |
| Noise level (7m) | DB (A): 77 |
| Fuel tank capacity (L) | 15 |
| Structure | Silent |
| Panel | Ordinary |
| Outputsocket | Two |
| DC12V output | Terminal post |
| Engine Model | KA186FAE |
| Bore*stroke (mm) | 86 *72 |
| Displacement (L) | 0.418 |
| Power (KW) | 5.7/3000 | 6.3/3600 |
| Fuel consumption rate (g. KW/h) | 275.1 | 281.5 |
| Compression ratio | 19 |
| Lubrication system | Spring |
| Engine starting system | Electric starter |
| Diesel oil model | Summer: 0#, winter: -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.65 |
| Battery capacity(V-AH) | 12V-36Ah |
| Net weight (KG) | 170 |
| Dimension(L*W*H) | 970×560×770 |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
