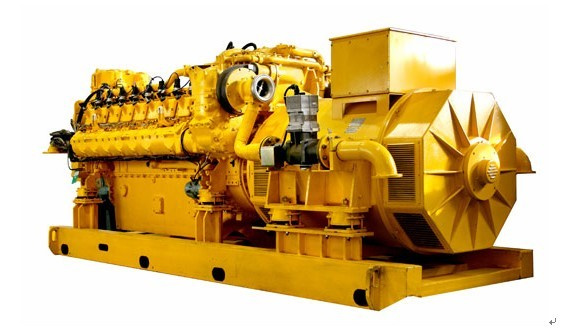

575kVA Agriculture Biogas Generator Set
Main characteristics of BS gas generating sets:
1. Good quality:
A>. Standard configuration: Commins engine, Faraday alternator.
B>. Mixing system. We used USA IMPOC. The world top and famous brand. To make sure the gas and the air mixed sufficiently. The gas was burned entirely, so we have more efficiency.
C>. Adopting up-to-date highly capable ignition system, American Altronic gnition, so the engine ignition will be more reliable, punctual, and easier to start and the ignition plug has longer life(more than 1000 hours).
D>. Control System
Brand: Deepsea
Model: DSE7320
Capacity: Over-speed, oil pressure, water temperature, charge failure, the fault display, high water temperature, low oil pressure, start failure, hand start control, distal start control and ect.
It's good quality and intelligent.
E>. We add the back-fire relief valve, BZR etc to make the genset working more safely.
2. Efficiency, Economical and low-cost running:
A>. The genset electrical efficency: 38-39%
B>. It can generate electricity 1.9KWH/1 cube standard biogas
C>. Low oil onsumption: 0.3-1.2g/kw. H, (according to the power)
D>. Longer overhaul time: More than 40000h for the 1500rpm engine.
E>. Commins genset's actual power can get to 95% of the rated power.
3. Longer lifetime:
All this above make our gensets has a life of over 30 years.
Our company is a professional manufacture of gas generator set, all our products are of good quality. Binshi power can produce various gas generator sets, such as natural gas gensets, biogas gensets, coal-gas gensets and LPG gensets. It blongs to new green environmental protection power to substitute those gensets powered by gasoline or diesel in the near future. Natural gas or other flammable gas can be esed well as fuel, which may be turned waste to treasure. Due to the advantage of convenient and safe operation, cost-effectiveness, low-emission pollution, and suitable for CHP, It will have a great prospect and application.
|
Parameter of 500kw/575 kva Binshi natural gas genset |
|
Model Number |
BCL500-G |
|
Brand Name |
BS |
|
Rated power |
500kw (575kva) |
|
Engine Type |
C12V159T(Commins) |
|
Alternator |
Leroysomer(Farady/Marathon availabe) |
|
Electrical efficency |
39% |
|
Oil consumption |
< 1.0g/kw. h |
|
Rated Voltage |
400V/230V |
|
Rated Speed |
1000RPM |
|
Rated Frequency |
50/60HZ |
|
Phase |
AC 3-Phase, 4 wire |
|
Total displacement |
35.5L |
|
Cylinder |
12V, 4 stroke |
|
Aspiration |
Natural |
|
Starting System |
DC 24V electric motor |
|
Cooling method |
water cooler+fan |
|
Size |
4400*1860*2400mm |
|
Weight |
7400kg |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
