Home Generator Products 50W/100W Hyacinth Wind Generator Portable Turbine of High Quality

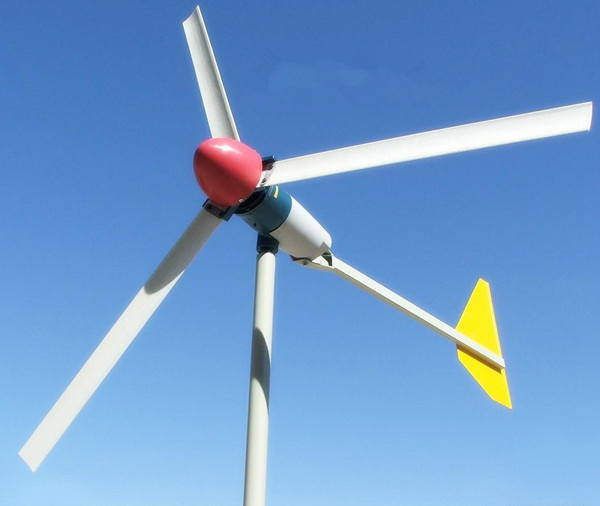

50W/100W Hyacinth Wind Generator Portable Turbine of High Quality

50W/100W Hyacinth Wind Generator Portable Turbine of High Quality
Price: US $ 200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Uniwill Group Limited, 25yrs Outstanding Service, Your Best Choice
400W wind generator is a powerful system with proven excellent performance and tracking record.
Product Characteristics:
1.Portable, using ultra-light composite materials and engineering plastics, the weight of 2500g, installation or disassembly in 3 minutes and a small space occupied
2.The machine head can be arbitrary rotated with anti-winding devices
3.Large capacity, to be Wind-Solar Hybrid  power supply system with solar cells, providing 0.6-1.5 degrees power in 24 hours to meet the need of portable computers, Instrument, mobile  phones and lighting.

Product Specification of hyacinth system
Rated power50W100W
Rated DC voltageDC 12V/24VDC 12V/24V
Rated current4.4A/2.2A8.8A/4.4A
Rated speed1050r/m860r/m
Max power65W115W
Number of blade3 pcs3 pcs
Starting wind speed3m/s3m/s
Cut-in wind speed3.5m/s3.5m/s
Cut-out wind speed15m/s15m/s
Security wind speed45m/s45m/s
Rated wind speed12m/s12m/s
EngineThree-phase permanent magnet generatorThree-phase permanent magnet generator
Rotor diameter830mm1050mm
Blade materialCarbon fiber reinforced plasticsCarbon fiber reinforced plastics
Output line anti-winding deviceOverall three-phase commutatorOverall three-phase commutator
Over-speed wind protectionTip stall protection + turned protection + Electromagnetic brakeTip stall protection + turned protection + Electromagnetic brake
Life span10 years10 years
Equipment surface protectionGalvanization plastic coatingGalvanization plastic coating
Working temperature-40C~70C-40C~70C
Packing materialCarton box and foam materialCarton box and foam material
packing dimension645*280*240mm645*280*240mm
Tower height3M(30mm zinced iron tube)3M(30mm zinced iron tube)
Packing materialCarton box and foam materialCarton box and foam material

Wind Generators Core Technique:
High Efficiency permanent-magnet generator;
Both Horizontal & Vertical Type;
Tiny friction between rotor and bearing housing;
Streamline wind turbine body and blade outline design;
High-rigidity FRP material, light and enduring lifetime;

Brand information:
Uniwill Wind Generator have outstanding advantage of long service life up to 25 years, allowing low wind speed of only 1m/s which makes 80% of areas be able to utilize wind energy. Uniwill have two types of wind generator: Horizontal and Vertical, compared with other brand wind generator, its generator small in size, lighter in weight, which is easy for transportation, but higher in efficiency with low noise level (less than 55db), and no intervention of neighboring residents.

Uniwill can provide wide range of wind generator from 200W to 50kW, all of them pass certificate of CE and ROHs, have been exported to Norway, Denmark, Kuwait, Italy, America, Brazil, Malaysia, Mauritius, Kenya, Congo and so on.
With different types of generators, Uniwill can provide wide range of applications, such as wind-solar lighting system, wind-solar power supply system for home use, BTS, island and on grid or off grid power station. We can provide whole system as a pack as well as designing, solution and installation guide with our rich engineering experiences and qualifications.

WE Provide:
The best price
The best products
The best Service
The most complete warranties
We possess core technology on main systems parts, such as solar panels, Wind Generators, Controllers, Inverters and Batteries. Have participated in many projects both in China and abroad, we accumulated rich engineering experience and qualifications; we provide whole system as a pack as well as designing, solution and installation guide.
Prod Model: Hyacinth
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Hyacinth
Rated DC Voltage: DC 12V/24V
Starting Wind Speed: 3m/S
Cut-in Wind Speed: 3.5m/S
Cut-out Wind Speed: 15m/S
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Number Of Blade: Three Blade
Phase: Three Phase
Power: 50W 100W
