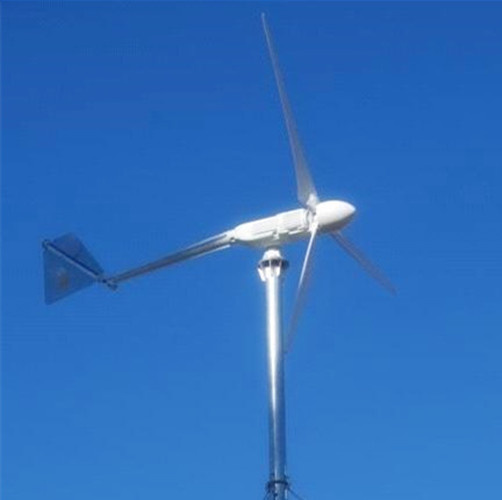

Product Specification and Price List for Wind King System
| Model | P-2000 | P-3000 |
| Name | Wind King | Wind King |
| Rated power | 2000W | 3000W |
| Rated DC voltage | DC 48V | DC 48V |
| Rated current | 42A | 62.5A |
| Rated speed | 374r/m | 310r/m |
| Max power | 2500W | 3500W |
| Number of blade | 3 pcs | 3 pcs |
| Starting wind speed | 3m/s | 3m/s |
| Cut-in wind speed | 3.5m/s | 3.5m/s |
| Cut-out wind speed | 18m/s | 18m/s |
| Security wind speed | 45m/s | 45m/s |
| Rated wind speed | 12m/s | 12m/s |
| Engine (generator) | Three-phase permanent magnet generator | Three-phase permanent magnet generator |
| Rotor diameter | 3200mm | 3700mm |
| Blade material (3blades) | FRP (fiber glass reinforced plastics) | FRP (fiber glass reinforced plastics) |
| Output line anti-winding device | Over all three-phase commutator | Over all three-phase commutator |
| Wind cap (wheel hub) | Centrifugal variable plasma control + Manual magnetic braking + Unloading pool brake |
| Over-speed wind protection | 15 years | 15 years |
| Life span | Galvanization plastic coating |
| Equipment surface protection | -45°C-70°C | -45°C-70°C |
| Working temperature | 108kg | 138kg |
| N.W. | Wooden case and foam material |
Wind Generators Core Technique:
High Efficiency permanent-magnet generator;
Both Horizontal & Vertical Type;
Tiny friction between rotor and bearing housing;
Streamline wind turbine body and blade outline design;
High-rigidity FRP material, light and enduring lifetime;
Brand information:
Uniwill Wind Generator have outstanding advantage of long service life up to 25 years, allowing low wind speed of only 1m/s which makes 80% of areas be able to utilize wind energy. Uniwill have two types of wind generator: Horizontal and Vertical, compared with other brand wind generator, its generator small in size, lighter in weight, which is easy for transportation, but higher in efficiency with low noise level (less than 55db), and no intervention of neighboring residents.
Uniwill can provide wide range of wind generator from 200W to 50kW, all of them pass certificate of CE and ROHs, have been exported to Norway, Denmark, Kuwait, Italy, America, Brazil, Malaysia, Mauritius, Kenya, Congo and so on.
With different types of generators, Uniwill can provide wide range of applications, such as wind-solar lighting system, wind-solar power supply system for home use, BTS, island and on grid or off grid power station. We can provide whole system as a pack as well as designing, solution and installation guide with our rich engineering experiences and qualifications.
