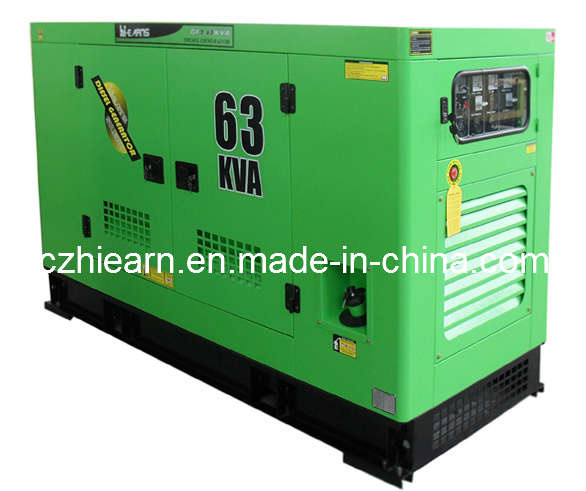

50kw Silent Diesel Generator Set (GF-63kVA) (GF2-50KW)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Diesel Generator Set (GF-63kVA)
1. Diff engines for your choice, such as Cummins, Perkins, Deutz and other Chinese brand engine weichai and so on.
2. Open frame or silent for your choice. Diff silent canopy for your choice, normal old canopy, new canopy, hiearns newest canopy, especially super silent canopy, 60-65dB at 7 meters.
3. We are factory, have our design and produce workshop and production line, greatly save expense for you.
4. CE, GS, EPA, RoHS, ISO, SONCAP and so on certificates.
|
MODEL |
GF- 65KVA |
|
Standby Power(50HZ ) |
52KW / 65KVA |
|
Prime Power(50HZ ) |
48KW / 60KVA |
|
Generator Ratings |
|
Voltage |
HZ |
Phase |
P.F(COSΦ) |
Standby Amps |
Standby Ratings (KW/KVA) |
Prime Ratings (KW/KVA) |
|
440/254 |
50 |
3 |
0.8 |
85 |
52/65 |
48/60 |
|
415/240 |
50 |
3 |
0.8 |
90 |
52/65 |
48/60 |
|
400/230 |
50 |
3 |
0.8 |
93 |
52/65 |
48/60 |
|
380/220 |
50 |
3 |
0.8 |
98 |
52/65 |
48/60 |
|
Prime Power(PRP): Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. |
|
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. |
|
ENGINE DATA |
|
Manufacturer/Model: |
DCEC Cummins 4BTA3.9-G2,4-cycle |
|
Air Intake System: |
Turbo,Water/Air DC |
|
Fuel System: |
AD type fuel pump |
|
Cylinder Arrangement: |
4 in line |
|
Displacement: |
3.9L |
|
Bore and Stroke: |
102×120(mm) |
|
Compression Ratio: |
16.5:1 |
|
Rated RPM: |
1500rpm |
|
Max.Standby Power at Rated RPM: |
65KW / 88.4HP |
|
Governor Type: |
RSV Mechanical(Std) / Electronic(Optional) |
|
Exhaust System |
|
Exhaust Gas Flow: |
14.8m3/min |
|
Exhaust Temperature: |
497ºC |
|
Max Back Pressure: |
10kPa |
|
Air Intake System |
|
Max Intake Restriction: |
6.2kPa |
|
Buring Capacity: |
5.9m3/min |
|
Intake Flow: |
158m3/min |
|
Fuel System |
|
100%(Prime Power) Load: |
216 g/Kw.h |
|
75%(Prime Power) Load: |
214 g/Kw.h |
|
75%(Prime Power) Load: |
221 g/Kw.h |
|
Oil System |
|
Total Oil Capacity: |
16.4L |
|
Oil Consumption: |
≤4g/kwh |
|
Engine Oil Tank Capacity: |
14.3L |
|
Oil Pressure at Rated RPM: |
350kPa |
|
Cooling System |
|
Total Coolant Capacity: |
24L |
|
Thermostat: |
83-95ºC |
|
Max Water Temperature: |
100ºC |
|
ALTERNATOR SPECIFICATION |
|
GENERAL DATA |
|
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards. |
|
Alternator Data |
|
Manufacturer: |
Stamford / Leroy somer / Engga / Marathon / Kaijieli / Dingol |
|
Number of Phase: |
3 |
|
Connecting Type: |
3 Phase and 4 Wires,"Y" type connecting |
|
Number of Bearing: |
1 |
|
Power Factor: |
0.8 |
|
Protection Grade: |
IP23 |
|
Altitude: |
≤1000m |
|
Exciter Type: |
Brushless,self-exciting |
|
Insulation Class,Temperature Rise: |
H/H |
|
Telephone Influence Factor(TIF): |
≤50 |
|
THF: |
≤2% |
|
Voltage Regulation,Steady State: |
≤±1% |
|
Alternator Capacity: |
60KVA |
|
Alternator Efficiencies: |
88.80% |
|
Air Cooling Flow: |
0.216m3/s |
|
GENERATING SET DATA |
|
Voltage Regulation: |
≥±5% |
|
Voltage Regulation,stead state: |
≤±1% |
|
Sudden Voltage Warp(100% Sudden Reduce): |
≤+25% |
|
Sudden Voltage Warp( Sudden Increase): |
≤-20% |
|
Voltage Stable Time(100% Sudden Reduce): |
≤6S |
|
Voltage Stable Time(Sudden Increase): |
≤6S |
|
Frequency Regulation,Stead State: |
≤5% |
|
Frequency Waving: |
≤1.5% |
|
Sudden Frequency Warp(100% Sudden Reduce): |
≤+12% |
|
Sudden Frequency Warp(Sudden Increase): |
≤-10% |
|
Frequency Recovery Time(100% Sudden Reduce): |
≤5S |
|
Frequency Recovery Time(Sudden Increase): |
≤5S |
|
Options |
|
Engine |
Control System |
|
Battery Charger 3.5A & 7A |
Remote Control Panel |
|
Oil Heater |
Auto Transfer Switch(ATS) |
|
|
Paralleling System |
|
Alternator |
Data |
|
Alternator Heater |
Engine Parts Drawing List |
|
|
Spare Parts |
|
Dimension & Weight |
|
Open Type |
Soundproof Type |
|
Overall Size:1800(mm)×750(mm)×1450(mm) |
Overall Size:2400(mm)×1000(mm)×1450(mm) |
|
Weight:930kg |
Weight:1450kg |
| Prod Model: |
GF2-63KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Model: |
Cummins 4BTA3.9-G2 |
| Engine Cylinder: |
4 Cylinder |
| Generator Output: |
50kw/63kVA |
| Voltage: |
220/380/400 |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |
