CCS, EIAPP certificate
CE, ISO APPROVED

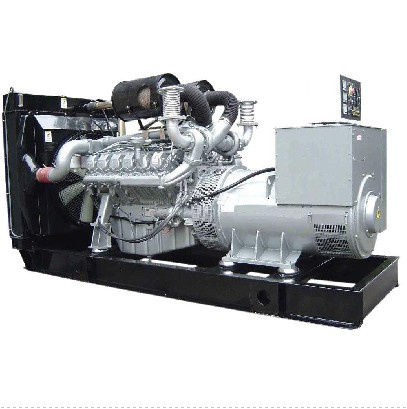

Coupled with Deutz diesel engine and Stamford
Or Marathon alternator
24V DC start motor and storage battery
Brushless, Self-excited, IP23, insulation class H alternator
Key start panel control system as standard, digital auto-start panel is optional
Optional open type or silent type.
All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail.
|
Engine Model |
TD226B-4D |
|
Configuration |
4 cycle, 4 cylinders in line |
|
Aspiration |
Turbochargerd |
|
Bore× Stroke |
105x120 mm |
|
Rated speed |
1500rpm |
|
Displacement |
4.0 L |
|
Prime Power |
60KW |
|
Speed Governor |
Mechanical/Electronic |
|
Cooling System |
Closed water-cooled |
|
Speed Stability (%) |
≤ 5% |
|
Fuel Consumption at 100% Load |
≤ 208g/kw. h |
|
Starter Motor |
DC24V, |
|
Generator Model |
CCFJ50J |
|
Prime power |
50KW |
|
Standby power |
55KW |
|
Voltage |
380V/220V |
|
Frequency |
50HZ/1500 rpm |
|
Power factor |
0.8(lag) |
|
Governor type |
Electric |
|
Brand |
MARATHON |
|
Alternator Model |
MP-50-4 |
|
Capacity |
50KW |
|
Voltage |
220/380V |
|
Frequency & Speed |
50HZ/1500RPM |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage Adjust range |
≥ 5% |
|
Voltage Regulation NL-FL |
≤ ± 0.5% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
