Products OF Generating set we can offer:
As a big generator OEM factory specialized in manufacturing, sales and leasing Services. We can provide Electric Generator, Diesel Generator, Portable Generator, Silent Generator, Natural Gas Generator etc. Under the brands of CUMMINS, DEUZT, CAT, SHANGCHAI(SEDC), YUCHAI etc. With power ranging 0.65-3000kVA. AC alternator under the brand of STAMFORD, MARATHON, FARADAY etc. We also offer spare parts for SFH, SEDC and HINO.
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system

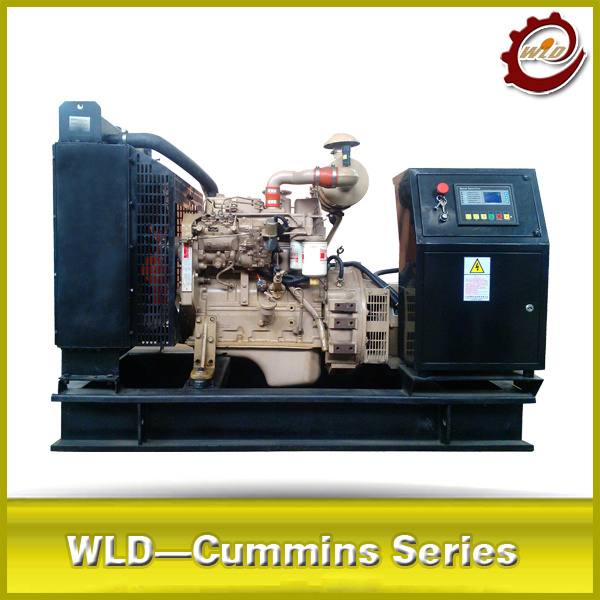

50kw Cummins electric power generator Specification : |
Genset Modle |
DC50 |
Dimension(mm) |
1900×820×1480 |
Weight(kg) |
1050 |
Prime Power(kw/kva) |
50/63 |
Standby Power(kw/kva) |
55/69 |
Rated current (A) |
90 |
Powerfactor(CosPhi) |
0.8 |
Altitude |
≤1000m |
Base Fuel Tank |
Eight hours(Standard) |
Engine Features: |
Engine model |
4BT3.9-G2 |
Type of Governor |
Electronic governor |
Type |
4 cyclinder in line |
Bore*Stroke(mm) |
102*120 |
Compression ratio" |
17:1 |
Voltageregulation |
±0.5% |
fuel consumption rate(g/kw.h) |
≤209g/kw.h |
Alternator Features: |
brand |
Stamford, Simens, Marathon, Farady at option |
Voltage control |
AVR |
Numberofphase |
3 |
Overspeed |
2250RPM |
Excitertype |
AREP |
Insulation class |
H |
protection class |
IP22/IP23 |
Totalharmonics (TGH/THC) |
< 3.5 % |
Waveform NEMA = TIF |
<50 |
Waveform I.E.C. = THF |
<2% |
Bearing |
single |
Coupling |
Direct |
