As a big generator OEM factory with 19-year export experience. We can pupply Diesel silent Generator, Moving Tailer Generator, Electric Generator, Natural Gas Generator under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer spare parts for SFH, SEDC and HINO.
Hundreds in stock for immediate delivery.
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system

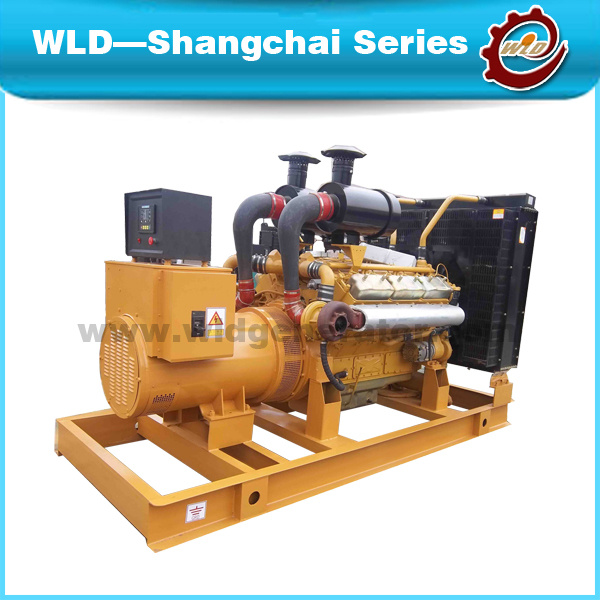

64kw/80kva electric power generator Specification : |
Genset Modle |
DS50 |
Dimension(mm) |
2200*800*1350 |
Weight(kg) |
1600 |
Prime Power(KW) |
64kw/80kva |
Standby Power |
70kw/88kva |
Rated current (A) |
115.2 |
Powerfactor(CosPhi) |
0.8 |
Altitude |
≤1000m |
Base Fuel Tank |
Eight hours(Standard) |
Engine Features: |
Engine model |
G128ZLD |
Type of Governor |
mechanical governor |
Type |
4 cyclinder in line |
Bore*Stroke(mm) |
135*150 |
Compression ratio" |
17:1 |
Voltageregulation |
±0.5% |
fuel consumption rate(g/kw.h) |
≤200g/kw.h |
Alternator Features: |
brand |
Stamford, Simens, Marathon, Farady at option |
Voltage control |
AVR |
Numberofphase |
3 |
Overspeed |
2250RPM |
Excitertype |
AREP |
Insulation class |
H |
protection class |
IP22/IP23 |
Totalharmonics (TGH/THC) |
< 3.5 % |
Waveform NEMA = TIF |
<50 |
Waveform I.E.C. = THF |
<2% |
Bearing |
single |
Coupling |
Direct |
