| Price: | US $ 1set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
Engine of generator power plants: silent generator
Model: 4BTA39-G2
Origin: Manufactured by Dongfeng Engine Co., Ltd
Start Model: DC24V electric start
Steady Speed Droop:≤1%
6 cylinders ,in-line,4 stroke
Engine Technical Datasheet
In-line, 6 Cylinder, 4 Cycle, Turbo Diesel Engine | |
Bore×Stroke | 102mm×120mm |
Displacement | 5.9 Liters |
Compression Ration | 17.5:1 |
Rated Speed | 1500r/min (1800r/min) |
Rated Power | 90/92kW(100kW) |
Standby Power | 100kW(110kW) |
Fuel Injection Pump | A Injection Pump |
Governor | Electrical Governor RSV Mechanical Governor |
Steady Speed Droop | ≤1%(Electrical Governor) ≤6%(Mechanical Governor) |
Lubricant Capacity | 16 Liters |
Coolant Capacity | 11 Liters(Engine Only) |
Net Weight | 399kg |
Wet Weight | 425kg |
Overall Dimension(L×W×H) | 996mm×711mm×992mm |
Coolant Intake Size | Φ58mm |
Coolant Outlet Size | Φ45mm |
Flywheel/Flywheel Housing | SAE3#/SAE3# or SAE2#/SAE2# |
Cooling Way | Positive Water Cooling Cycle |
Technical Datasheet
Speed | 1500r/min(50Hz) | 1800r/min(60Hz) |
Output Power | Engine Output | Engine Output |
Standby Power | 40kW | 44kW |
Prime Power | 50/40KW | 40kW |
ac generator head:
Brand: Leadtech
model: LTG274J
Matertials:100%copper
Freqency&Speed:50HZ,1500RPM
Insulation&Protection:H, IP22
Rated Voltage: 230/400V
Frequency regulation: ≤±0.5 %(stable)
Voltage regulator: standard AVR
brushless,self-excited,AC synchronous, single bearing
auto start control system:
Brand:Smartgen 6110 or Smartgen 6120(with ATS) optional. Customers can also select other brand such as HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 etc.
(1)Widely used in all types of generator automatic control system for compact structure,advanced circuits,simple connections and high reliability.
(2)LCD display,automatic control, Chinese and English display interface. Can be adjust from front panel, or use the PC through programming interface, also can use a PC via RSR485 interface and monitoring.
(3) Function:high water temperature, low oil pressure, low speed and over load protection,etc.
Silencer
Intermal high-efficent prevent silencer. which can reduce the niise in outlet smoking vent

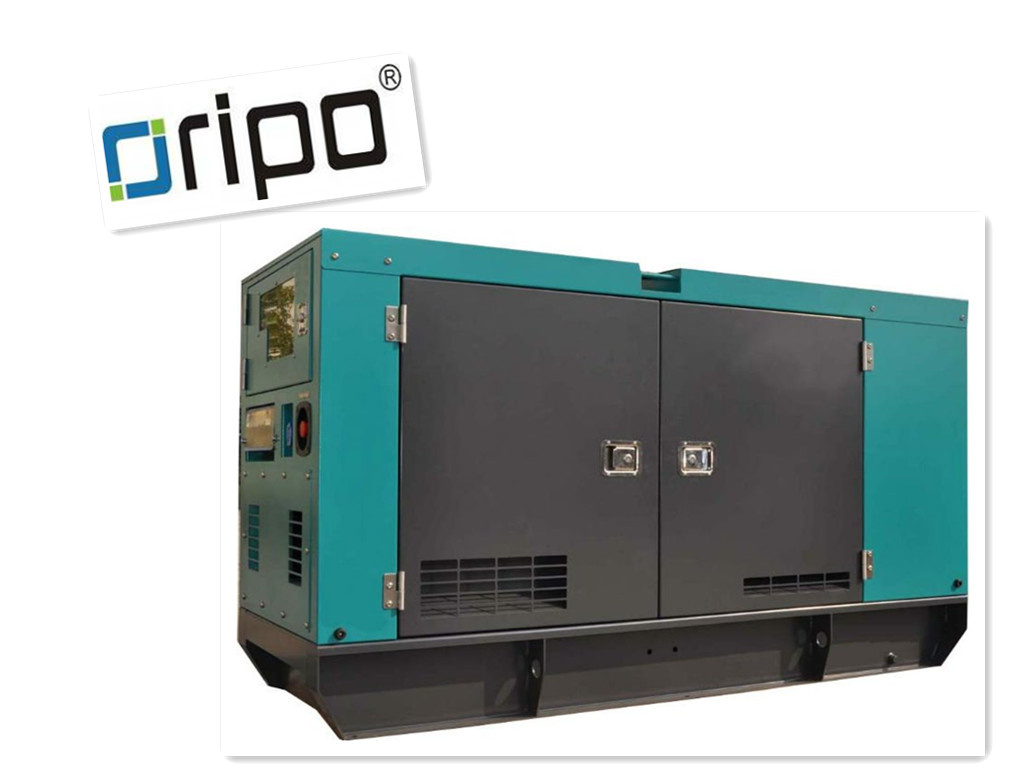

Super Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Guarantee and after sale service;
Warranty:One Year or 1000 running hours, whichever comes first. with more than one hundred maintenance shops all over worldwide, it is very easy to find the spare parts and get technology support.
24hours technical support by E-mail
testing :
All generator sets are gone through rigorous testing before being released to the market place, include 50%load,75% load,100% load,110% load and all protection fuctions (over speed, high water temperature, low oil pressure, battery change fail, emergency stop)

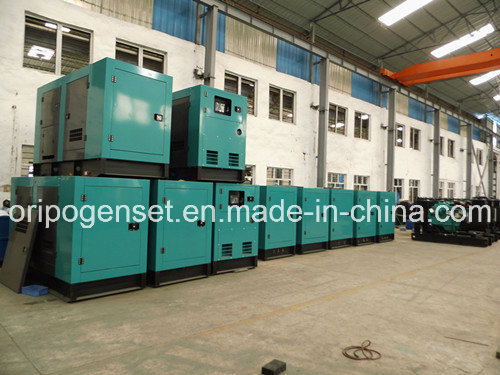

Warmly welcome to our factory for visit:
1.From Guangzhou Baiyun International airport to Oripo:
a.It takes about 1 hour by car/taxi,it is about 58 kilometer;
b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour.
2.From Canton fair complex to Oripo:
a. It takes about 30 minutes by car / taxi, it is about 32 kilometer;
b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a taxi to Oripo, It will take about 1 hour.

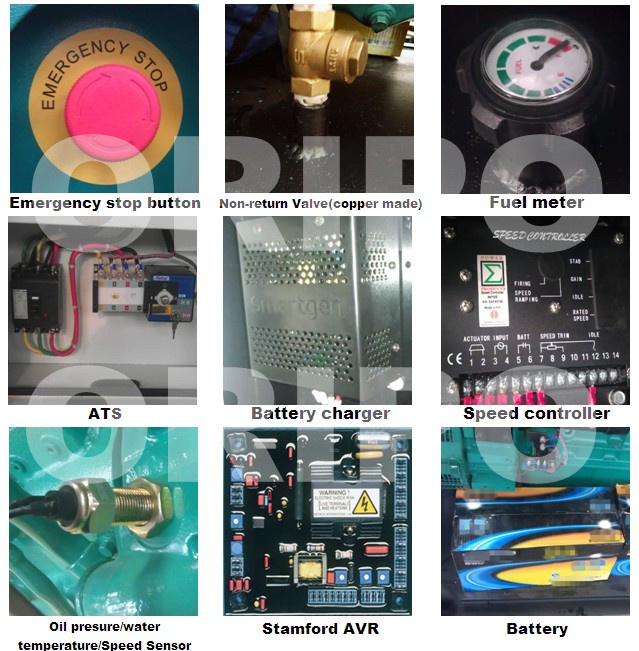

| Standard Parts: New brand Electric governor Jointventure Cummins Engine and 100% copper brushless self excited alternator Based fuel tank for 8 hours working(Silent type only) Single-bearing generator again drops; Intelligent LED display control panel(Smartgen 6110) Emergency stop button Electric start and 24v charger; Standard air filter, oil filter, fuel filter;Cooling water tank; High-efficient silencer Exhaust elbow & Storage battery Steel base-frame against vibration; Soft pipe for fuel and handle for lube going-out; Operation& Maintenance manual. Cummins Tool kit | |||||||||
| Optional parts: 1, Jacket water heater 2, oil heater 3, Diesel heater 4, Parallel connection cabinet system 5, ATS 6, AMF/MCCB | |||||||||
| Price based on FOB Foshan/Guangzhou,china | |||||||||
| Payment terms: By T/T 30% in advance and the balance 70% shall be paid before shipment. | |||||||||
| Quotation valid : within one month from the date of quote | |||||||||
| Package: 1 set packed by plyfilm (If pack by plywood, need to added charges accordingly) | |||||||||
| Delivery time:on about 20days |
| Prod Model: | OCL50 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Self-Starting Diesel Generator |
| Installation Method: | Portable |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
