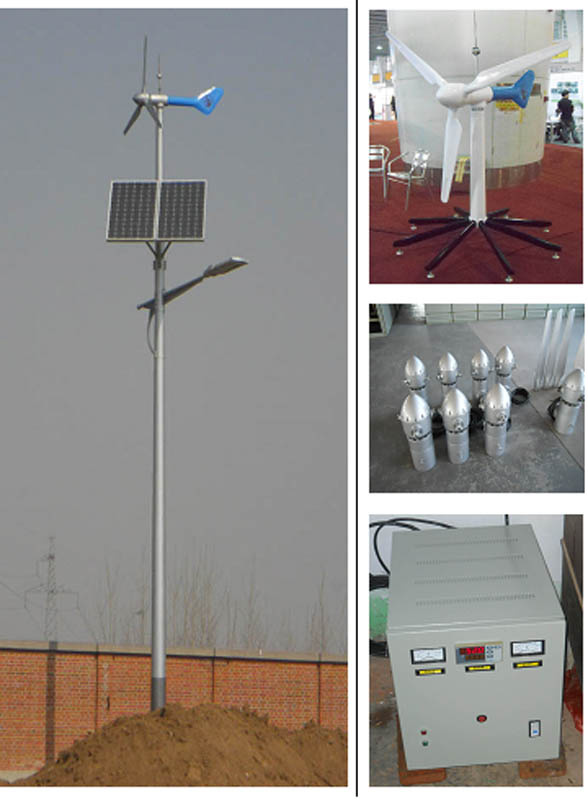

This 500W home use wind turbine generator system with good appearance and pitch control system,
This wind turbine system with the bes price, It is a economic type generator and practicability, and this wind turbine with pitch control system,
This 500W home use wind turbine generaor can be mixed with the solar panel;
Introduction:
The generator is PMG type, the start wind speed is lower 2.0-2.5; The working speed is 2...5-25M/S; The rated power is 500W, the mix power is 650W;
|
MSFD_500W technical parameter |
|
Rated power(W) |
500 |
Blades material |
FRP/3 |
|
Max power (W) |
650 |
Speed regulation |
|
Variable pitch & brake system |
|
Rated wind speed(m/s) |
7 |
Generator type |
|
Three-phase AC PM |
|
Startup wind speed(m/s) |
2 |
Tower height (m) |
9M(optional) |
|
Working speed(m/s) |
2.5~25 |
Tower style |
Guyed standing tower |
|
Survival wind(m/s) |
45 |
Control Mode |
Pitch+brake |
|
Rated rpm(r/min) |
450 |
Pitch Mode |
Synchronous Centrifugal |
|
Blade diameter (m) |
2.8 |
Brake Mode |
Manually operated |
|
Rated Voltage |
DC24 |
Yaw Mode |
By rudder self |
|
Turbine main body weightkg |
80 |
Working Voltage |
AC220V/380 |
|
Power supply method |
Three-phase whole-wave bridge rectifier constant DC charger |
|
Battery bank(Optional) |
[12V.100AH]×2 |
Qingdao Minshen Wind Power Technology Co., Ltd. is a professional&high-tech company engaged in wind turbine generator, it founded in 2000 and located in laixi development zone in qingdao(close to 804 national road), convenient transportation through qingdao, yantai, weihai, weifang, such as port. Our company committed to research wind turbine and has advanced wind turbine design&manufacturing technology(a number of technology patents), advanced equipment, many superb experts.
The wind turbine generator which we can produce now include many kinds of horizontal and vertical axis wind turbines from 200W to 100kw. Rational product design, advanced technology, stable and reliable quality are our products characteristics, at the same time, our products have passed ISO9001-2008 international quality management system certification, CE product safety certification. Large-scale wind turbine can be used for the construction of wind and grid and the small wind turbine is the ideal power supply system for the scattered households, meteorological stations, posts, communities, plains, farms and so on. Products have exported to Africa, India, France, Russia and other countries. We have made a tremendous contribution for environmental protection and resource conservation.
For our company, the purpose is to serve the community and benefit to mankind. The spirit is to be pragmatic and aggressive; The philosophy is to keep promises and share benefits, our goal is to keep pace with the times and pursue the excellence. Then warmly welcome the domestic and foreign merchants to our company, we are looking forward to close cooperation hand in hand.
