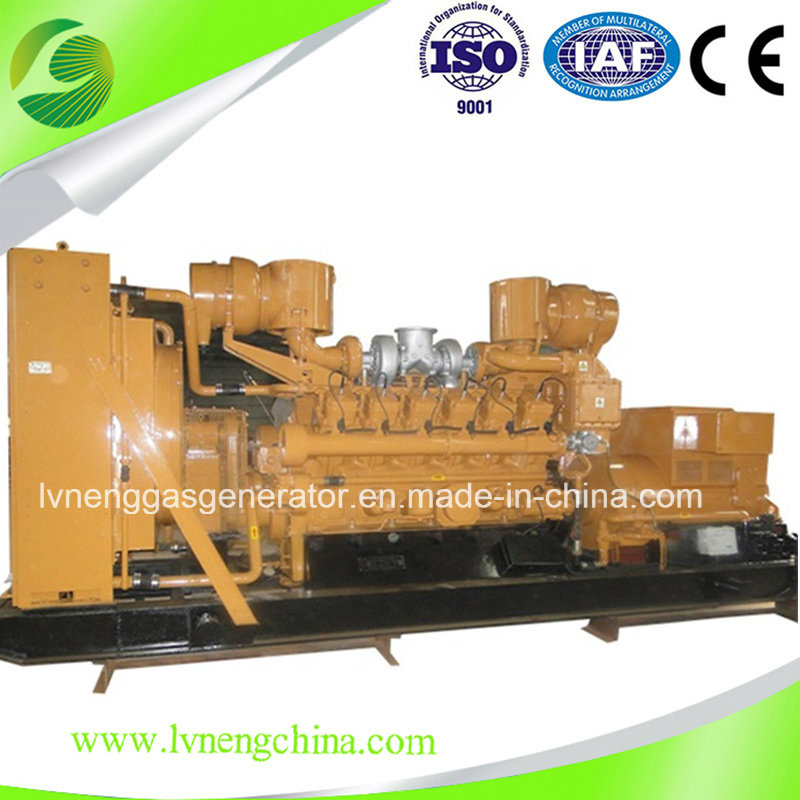

500KW Natural Gas Generator with CHP system 12V190 engine CE&ISO Lvneng
We have a sales staff can speak in Russian, If you from Russia, Kazakhstan , Ukraine, Belarus, Uzbekistan, and other countries,you can visit our Russian website: www.lvnengpower.ru. Contacts:
1.Product parameters:
| Parameter of Natural Gas Generator Set |
| Model Number (Engine Type) | LNNG500 |
| Brand Name | LVNENG |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.4L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |
2. Worksite requirements:
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~45ºC;
b) Relative humidity less than 90%(35ºC);
c) Site elevation not higher than 2000m;
d) For outdoor installation, simple rain shelter is required.
Its main index requirements are as follows:hardness:0.7~5.3me/L ;
chloride ion content:<150mg/L; PH≤7~8.5
3. Fuel gas requirement:
1m distance away from genset's pressure regulating valve of inlet
1)Temperature of biomass gas ≤40ºC;
2)Pressure of biomass gas 3~10kPa, velocity of pressure≤ 1kPa/min;
3)H2S≤200mg/Nm3;
4)NH3≤20mg/Nm3
5)Tar Content ≤20%mg/Nm3
6) Impurities particle size≤5μm; impurity content≤30mg/Nm3;
7)Moisture Content of biomass ≤40g/Nm3;Heat value more than 4.2MJ/Nm3
4.Company Information:
1) Over 15 years gas/diesel generator produced experience;
2) Main products include: diesel engines, biomass generator, natural gas generator , biogas generator ,
coal gas generator set, etc. Products arrange from 5kw-1100kw ;
3) Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 person.
4) CE,ISO9001:2008,ISO2001:1400 ,SGSetc.certificats approve and passed many patents.
5)Exported many countries such as: Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
6) We provide TURN-KEY project : like water removal system,H2S removal system,gasified equipment,
recovery system of exhaust heat,CCHP system etc.
7) Machine have long serive-life: more than 15 years.
5. Services:
1. Pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings: like power station floor plan, engineering flow sheet of circle cooling system, genset installation, genset foundation, electrical connection and some other technical support and more.
2. Sale service:
(1)We will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator.
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
