| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
| Engine Model | KT38-DM |
| Number of Cylinders | 12 cylinders in V |
| Cycle | 4 stroke |
| Aspiration | Turbocharged |
| Voltage | HZ | Phase |
P. F |
Output (KW) |
| 400/230V | 50 | 3 | 0.8 | 500 |
| Bore× Stroke | 159 x159 mm |
| Displacement | 37.5L |
| Compression ratio | 15.5: 1 |
| Prime Power/Speed | 560KW/1500rpm |
| Speed Governor | electrical |
| Cooling System | By heat exchanger |
| Fuel Consumption at 100% Load | 214 g/kw. h |
| Starter Motor | DC24V, |
| Alternator Model | MX-H-500-4 |
| Prime power | 500KW |
| Frequency/speed | 50HZ/1500rpm |
| Exciter type | Brushless, Self-excited |
| Power factor | 0.8 |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Phase / wire | 3 phase 4 wires |
|
engine start/stop engine coolant temperature oil pressure and temperature tachometer coolant temperature alarm oil pressure alarm battery charging indicator generator to be protection from overload and overheat |

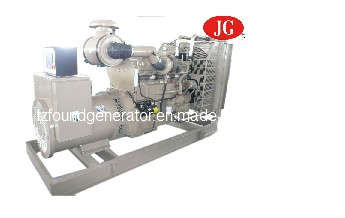

| Prod Model: | CCFJ500J |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ouput: | 500kw |
| Voltage: | 400/230V |
| Frequency: | 50/60Hz |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Micro-Computer Control Automatic Diesel Generator |
| Output Type: | AC 3phase |
