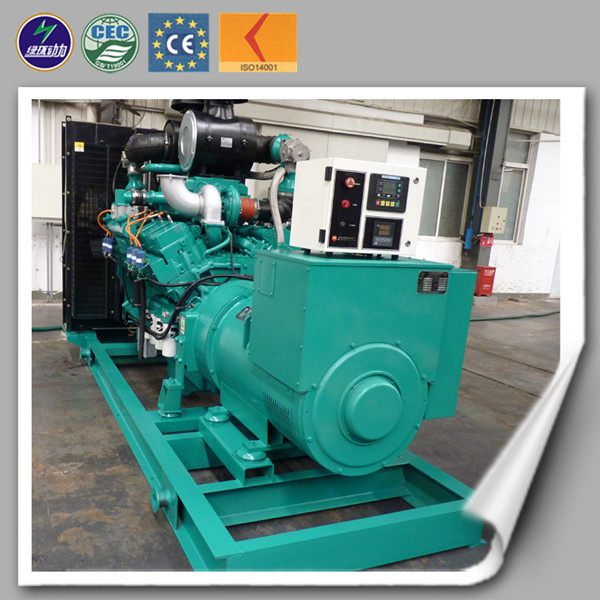

500kw cummins generator Cummins methane gas natural gas generator
Specifications
1. More than 10 years manufacture experience
2. International warranty service
3. Cummin Engine with Leroy Somer/Marathon/Stamford Generator
4. Certificate: ISO, CE
Lvhuan gas genset model
Genset Model | Engine Model | Alternator Model | Prime Power | Continuous power |
LHK24 | LH4B | LSA42.3VS3 | 24 | 20 |
LHK30 | LH4B | LSA42.3S4 | 30 | 24 |
LHK50 | LH6B | LSA43.2L65 | 50 | 40 |
LHK80 | LHN14 | LSA44.2VS45 | 80 | 64 |
LHK100 | LHN14 | LSA44.3M6 | 100 | 80 |
LHK120 | LHN14 | LSA44.2M95 | 120 | 100 |
LHK150 | LHNT14 | LSA46.2M5 | 150 | 120 |
LHK200 | LHNT14 | LSA46.2L6 | 200 | 160 |
LHK250 | LHKT19 | LSA46.2VL12 | 250 | 200 |
LHK300 | LHKT19 | LSA47.2VS2 | 300 | 240 |
LHK500 | LHKT38 | LSA49.1S4A | 500 | 400 |
Genset working condition
ACCEPTABLE WORKING CONDITIONS: | |
Ambient temperature : | -40°C~+45°C |
(antifreeze or hot water needed for below -20°C) | |
Relative humidity: | <90%(20°C) |
Altitude: | ≤1000m |
NORMAL WORKING CONDITIONS: | |
Genset can run at rated power on the condition: | |
Atmospheric Pressure: | 100kPa |
Ambient Temp: | 20°C |
Relative Humidity | 30%. |
APPLIED GAS: | Natural Gas, Biogas, Oil field gas |
Acceptable gas pipeline pressure: | 0.8~450kPa |
Engine inlet pressure: | 0.8~5.0kPa (80~500mmH2O) |
CH4 content: | for natural gas ≥75%; for biogas≥40% |
Sulphur content: | ≤400ppm |
Gas heat value: | ≥5500kcal/Nm3 (23MJ/Nm3 ) |
Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will lower the power efficiency. Gas doesn't include free water or free materials (the size of impurities should be less than 5μm.) |
Standard Scope of Supply
1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by Cummin with best quality |
2. Brand new brushless France Leroy Somer alternator, Marathon or Stamford |
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H |
4. Radiator for 40°C/50°C ambient temperature |
5. Ignition system adopted USA ALTRONIC |
6. Emergency stop mounted |
7. Battery,Battery cable and Battery charger |
8. Standard tool box |
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw ) |
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand) |
11. Testing report and maintenance manual. |
Option:
1 Sound-proof canopy , sound-proof container, Weather proof canopy |
2 Grid synchro panel |
3 Synchro panel between generators |
4 CHP unit/ co-generation system |
5 Remote radiator |
6 Auto oil filling system |
7 Water heater |
8 Oil heater |
9 Gas leaking detector |
10 Gas scrubber/biogas pre-treatment system |
11 ATS(Automatic transfer switch) |
Warranty:
12 months warranty covering all manufacturing defects
(Whichever comes first) since leaving China port, our company provides free easily-damaged parts for the faults caused by the quality of products or raw material, but exclude the damageableparts of engine due to customer's incorrect manmade operation. After expiration, our companyprovides spare parts with cost for maintenance forever.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
