Specifications

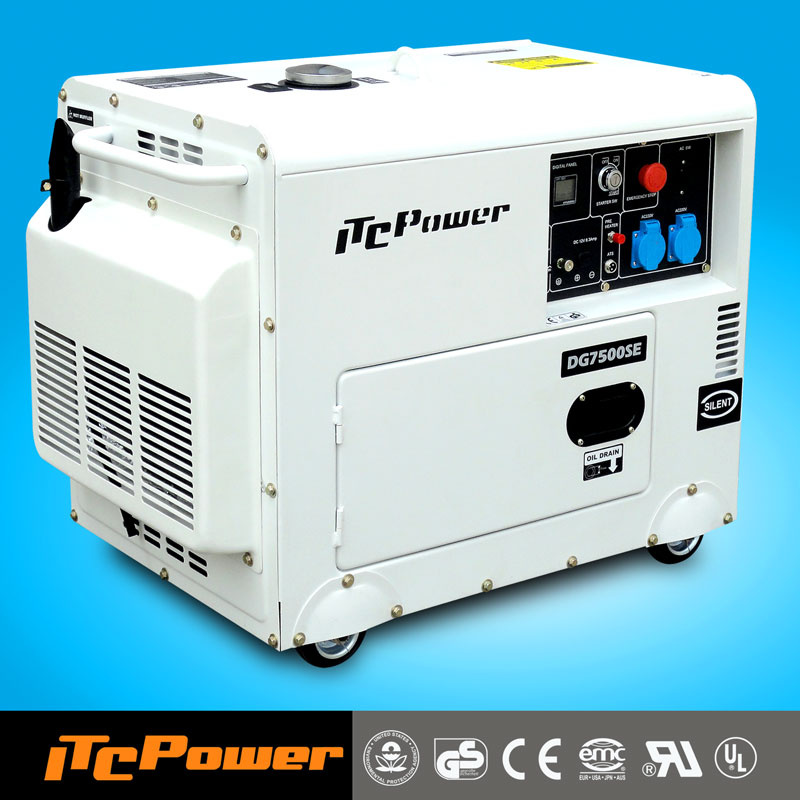

super soundproof,portable,easy move,HYUNDAI OEM,good spare part,green power generator, silent diesel genset
silent diesel genset,single cylinder generator 220v generator
Feature
- Canopied models for noise reduce performance
- Double base frame for reducing vibrations
- Larger fuel tank for longer autonomy
- Integrated wheel on canopies spare part
- V-Twin diesel engine in models DG12000SE/SE-3 green power genset
Control panel
- Overload protection through intensity control LED display.
- Leakage breaker 30mA for machine and person protection.
- Pre heating system for easier starting in cold conditions.
- LED digital display 4 functions.
- Emergency STOP button.
- DC 12v output 8,3A. silent soundproof electric generator
- Earth connection.
- ATS automatic start in Electric start models with optional Remote Control and Timmer.
Engine
- Diesel 4 stroke Direct injection Air cooled.
- Low oil alarm protection with automatic shuf off engine.
- V Twin cylinder engine in DHY12000LE/LE-3 models.
- Direct electronic injection system.
Alternator
- 100% Copper Winding.
- AVR automatic voltage regulation.
- Brush type alternator.
Model | DG6000SE | DG6000SE-3 | DG7500SE | DG7500SE-3 |
Frequency (Hz) | 50 | 50 | 50 | 50 |
Rated Power (kVA) | 4.5 | 5.6 | 5 | 6.25 |
Max.Power (kVA) | 5 | 6.25 | 5.5 | 6.9 |
Voltage (V) | 220 | 380/220 | 220 | 380/220 |
Current (A) | 25 | 16.4 | 27.5 | 18 |
Sockets | 2x16A | 1x16A / 1x32A | 2x16A | 1x16A / 1x32A |
Display | LED3 | LED3 | LED3 | LED3 |
Fuel Tank Capacity (L) | 15 / 30 | 15 / 30 | 15 / 30 | 15 / 30 |
Running Time (hr.) | 6.2 / 12.5 | 6.2 / 12.5 | 6 / 12 | 6 / 12 |
Noise Level behind
7 Meters (dBA) | 72 | 72 | 72 | 72 |
DC Output (V/A) | 12 / 8.3 | 12 / 8.3 | 12 / 8.3 | 12 / 8.3 |
Battery (Ah) | 30 | 30 | 30 | 30 |
Engine |
Engine Type | Diesel engine | Diesel engine | Diesel engine | Diesel engine |
Engine | D400E | D400E | D500E | D500E |
Power Output (HP) | 10 | 10 | 12 | 12 |
Start Method | Electric | Electric | Electric | Electric |
Displacement (cc) | 418 | 418 | 456 | 456 |
Oil Capacity (L) | 1.65 | 1.65 | 1.65 | 1.65 |
Alternator |
Alternator | AL5 | AL5-3 | AL6 | AL6-3 |
Rated Power (kVA) | 5 | 6.3 | 6 | 7.5 |
Power Factor (Cosφ) | 1 | 0.8 | 1 | 0.8 |
Voltage Regulation | AVR | AVR | AVR | AVR |
LOG.DATA |
N.W.(kg) | 152 | 152 | 156 | 156 |
G.W.(kg) | 164 | 164 | 168 | 168 |
Products Size(mm) | 920×520×740 | 920×520×740 | 920×520×740 | 920×520×740 |
Service assurance of generator and other machines |
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
ITC POWER Group is a company specialized in the development, manufacturing, importing and distribution for Generating Sets up to 500 kVA, Engines, Water Pumps and High Pressure Washers both gasoline and diesel powered.
We are Licensee Company for HYUNDAI brand generators for more than 35 countries all over the world.
ITC POWER has developed a large range of Generating Sets and Engine pumps in order to cover all needs for professional and consumers.
Our mission is to offer a complete range of products at competitive prices and excellent performances with the best After Sales Service at the same level as other well known brands in Europe and the US and in Japan.
To achieve this goal, we have established our own production facilities with own staff lo check "in situ" all the processes of assembly, settings and testing to make sure that the products delivered are the products expected for our customers quality wise. Each unit is tested one by one during the assembly process and more deeply before packing to assure a constant and controlled quality to our customers.
Another point of greatest attention is the After-Sales Service.
We have the most complete information available to our partners and distributors to have the best support for the maintenance and repair of our machines.
The firm was founded in Europe on 2001 by two partners with extensive experience in the international markets for machinery and especially the Generating Sets and Water Pumps.
The range is in constant evolution to meet the needs of our most exigent customers.
ITC POWER is present In 5 continents and more than 50 countries with Europe, America, Oceania and Africa as our main markets.
Our facilities with 120 persons, 20.000sq meters allow us to produce over 100.000 units per year.
