Prime Power | KVA / KW | 16 / 16 |
Standby Power | KVA / KW | 17.6 / 17.6 |
Power Factor |
| 1 |
Frequency | Hz | 50 |
Rate Voltage | V | 230 |
Rate Current | A | 69 |
Controller |
| DSE3110 |
Control Voltage | DC / V | 12 |
Battery Capacity | Ah | - |
Coolant Capacity | L | 15 |
Fuel Tank Capacity(Base frame) | L | - |
Fuel Consumption (25/50/75/100%) | L / hour | 5.7 |
Running Time | Hour | - |
Length | mm | 1400 |
Width(W) | mm | 780 |
Height(H) | mm | 1020 |
Weight net | Kg | 480 |
loading capacity (units/container) |
| 16/32/32 |
Sound @7 meter | dB | 65 |
Engine Model |
| 4DW91-29D |
Prime power | Kw | 21 |
Structure |
| 4 cylinder,inline |
Fuel type |
| Diesel |
Fuel consumption | L/Hour | 5.7 |
Lubricant consumption | L/Hour | 0.03 |
Governor |
| Mechanical |
Coolling |
| Water |
Lubricant capacity | L | 8 |
Air intake flow | m3/s | 6.5 |
Exhaust gas flow | m3/s | 4.6 |
Exhaust gas temperature | °C | 450 |
Exhaust gas back pressure | KPa | 5 |
Compression ratio |
| 17:01 |
Aspiration |
| Natrual |
Bore | mm | 90 |
Stroke |
| 100 |
Displacement | L | 2.54 |
SAE |
| 4 / 7.5 |
Dimension | mm | 920x610x760 |
Net weight | Kg | 240 |
Alternator Model |
| 184E |
Prime power | kVA | 16 |
Structure |
| 1 Bearing |
Excitation mode |
| Self-excitation |
Insulation class |
| H |
Protection class |
| IP23 |
TIF |
| <50% |
THF |
| <2% |
Air flow | m3/s | 0.095 |
AVR Model |
| SX460 |
LED Billboard trucks is produced after the rising of LED industry,which associated with LED industry.
It is combined car with LED display, with a 3D animation form to show people rich varity and real-time information.
It is a new transmission medium for mobile advertising.

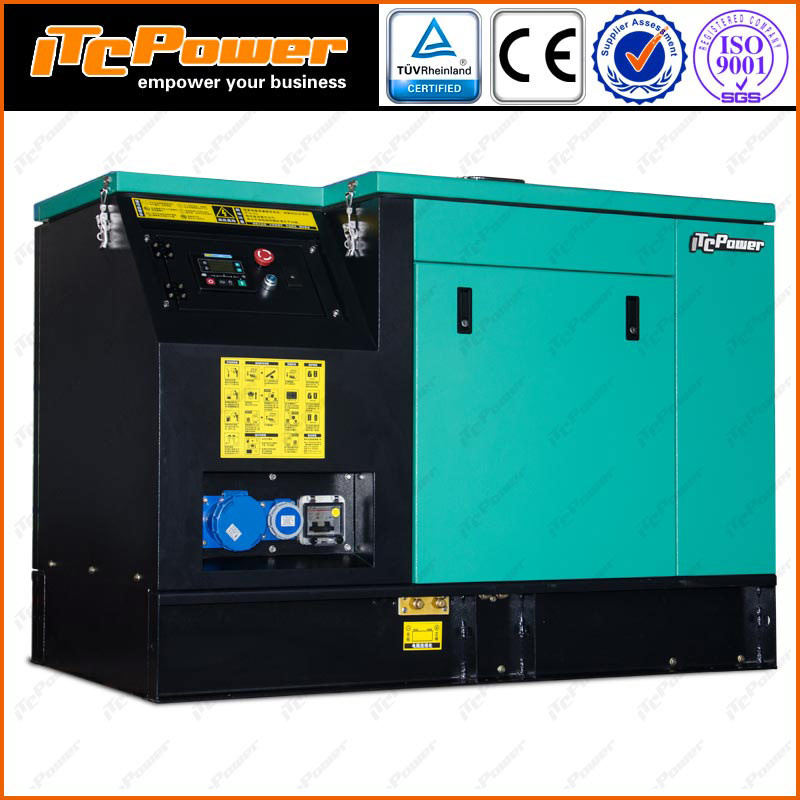

As the power supply equipment of Billboard trucks, ITCPOWER'S new silent vehicle generator has the following remarkable advantages:
strong load capacity
minimal noise,super soundproof
excellent heat dissipation
speed stability
high safety performance
save fuel
simple maintenance
intelligent control panel
Simple and convenient control panel for easy switch daily, multi function LED display table for clearly operation of equipments.
high quality sound sponge
High-tech insulation sponge can maximum absorb the noise of the machine without affecting heat dissipation at the same time.
faw engine
The most well-known high-quality domestic engine can greatly decrase the fuel consumption when supplying steady load power.
wooden case packing
Massive gluded wood box packing make the machine more safety in transit.
ITC POWER Group is a company specialized in the development, manufacturing, importing and distribution for Generating Sets up to 500 kVA, Engines, Water Pumps and High Pressure Washers both gasoline and diesel powered.
We are Licensee Company for HYUNDAI brand generators for more than 35 countries all over the world.
ITC POWER has developed a large range of Generating Sets and Engine pumps in order to cover all needs for professional and consumers.
Our mission is to offer a complete range of products at competitive prices and excellent performances with the best After Sales Service at the same level as other well known brands in Europe and the US and in Japan.
To achieve this goal, we have established our own production facilities with own staff lo check "in situ" all the processes of assembly, settings and testing to make sure that the products delivered are the products expected for our customers quality wise. Each unit is tested one by one during the assembly process and more deeply before packing to assure a constant and controlled quality to our customers.
Another point of greatest attention is the After-Sales Service.
We have the most complete information available to our partners and distributors to have the best support for the maintenance and repair of our machines.
The firm was founded in Europe on 2001 by two partners with extensive experience in the international markets for machinery and especially the Generating Sets and Water Pumps.
The range is in constant evolution to meet the needs of our most exigent customers.
ITC POWER is present In 5 continents and more than 50 countries with Europe, America, Oceania and Africa as our main markets.
Our facilities with 120 persons, 20.000sq meters allow us to produce over 100.000 units per year.
