Warning:
High voltage inside, not dispart.
Avoid collision and impact while moving.
Keep good ventilation while operation.
Moistureproof and waterproof
Keep away form children.
Optimal working scope:
Our mobile power station mainly use for Resistive load as household linghting, TV, fan, radio and computer. Not suitable for Capacitive load
As electric motor, refrigerator, air conditioning, Microwave and ovens.
In urgent case, our solar multifunction generator can connect with automobile battery to start automobile.
Operation:
Lighting function
Open the total power switch, if LED in yellow which indicate the battery capacity in good status, open the lighingt switch, the lighting lamp stat working; If LED turn red, the battery is in low voltage status, please charge immediately.
Output by AC function
Open the total power switch and AC switch in tandem, green LED lights, voltmeter indicate the current-voltage AC voltage. When not use AC, please turn AC switch off to save battery power.
Charge function
The power system has two ways of charge battery: Solar panels and AC adapter
Charge Notices
AC adapter charge: While AC power is available, please charge battery with AC Adapter.
Non-matching adapter shall not be used, Otherwise, the battery will damaged.
Solar charge
Place solar panel outdoors and remove all covering on surface of solar panels, make sure solar panels face sun in south direction to absorb sunlight fully, . Then plug the power line of the solar panels into " Solar charging& charging adapter " socket. The adopted solar panels with peak power range: 10W-80W. ( Monocrystalline or Polysilicon solar panels), and fully charge time vary with different solar panels.
If you want to increase the capacity of batteries, you can externally connect battery with supporting power line. The red line connect with positive pole of battery and the back line connect with negative pole of battery. If the car battery in low-voltage, you can connect with power station and activate motor.
Attention:
While charging, lighting or AC, always keep total power switch in ON position;
When the total power switch in ON position, yellow power LED will indicate the remained power Capacity; If the red power LED lighting, the battery is in low voltage status, please charge immediately.
While using AC power, the device loading must comply with specific loading style of our products, and power must be less than the rated output power of our products; (different models with different power, please pay attention)
When lighting switch is ON, the green LED will turn lighting, and lighting tubes will work at same time.
When AC switch opens, the green LED of AC is ON and will output 220V AC or AC 110V; When no AC output, please check whether two fuses are broken. Replace broken fuses with new ones immediately.
When battery LED turn red, please charge battery immediately. You can select solar panels or AC Adapter to charge battery. When the charge-display green LED is ON, means charge process is working well.
Kind Note
Don't leave Negative feedback without asking us for help. Please contact us first if you have any problem.
We strive to answer all messages as quickly as possible.
Thank you in advance for your patience.
Feedback
1. Our system automatically returns feedback once it is left for us
2 In order to provide you a better service, please treat the transaction fairly. Feedback is our life, before you leave a neutral or negative feedback, please do contact us to get a better solution. (It is impossible to drawback the evaluation in new Alixpress policy), because, we also consider a NEUTRAL feedback as a NEGATIVE feedback.
Contact Us
Please contact us with TradeManager
|

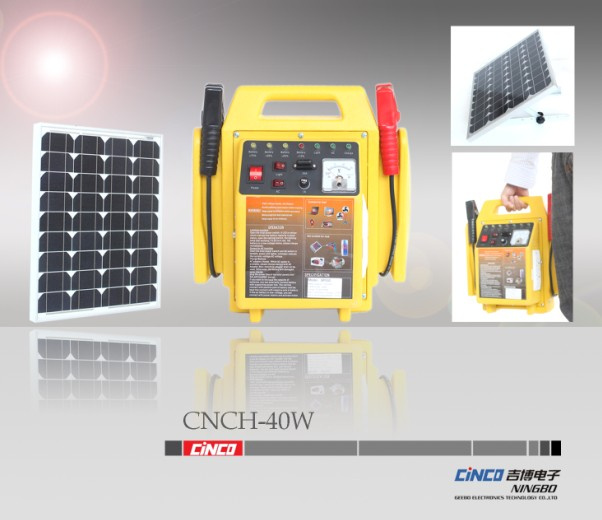

CNCH-40W |
Solar panels power |
40 Wp |
Charging Adapter |
12V/5A |
Solar panels charge current |
2.22A |
Battery voltage
/battery Capacity |
12V/20Ah |
Max.current of charging Adapter |
12V/5A |
Max. current of DC fuse |
40A |
Max. current of AC fuse |
250V/2A |
DC fluorescent lamp ( Replaceable ) |
DC12V/5W |
Output AC voltage/ Frequency |
220V/50Hz/60Hz, or 110V/50HZ/60Hz |
Voltage Meter |
Real-time display the output voltage |
Invevter power |
500W |
Output AC Wave |
Modify sine wave |
Battery voltage range |
10.0 -15.0 Vdc |
Inverter conversion efficiency |
≥90% |
Auto-protection |
Low/High-voltage,overload /short current protection |
Ambient temperature range |
-20ºC-60ºC |
Dimension |
350×170×360mm |
Picking dimension |
435×420×225mm |
