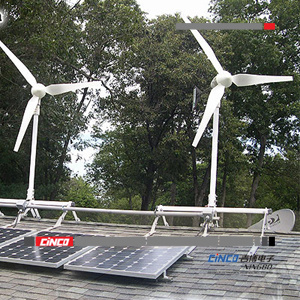

Wind Solar Hybrid System, 1KW Wind Solar Hybrid System Feature
High Efficiency Solar panel
Solar panel Lifetime: 25 years
Solar panel Warranty: 5 years
Wind turbine Optimum aerodynamic shape design: High efficiency, low noise.
Direct drive permanent magnet generator, low startup resistance moment, constant running ability of over loading 1.5 times, maintenance free for more than 30000 hour.
Safety control: Have aerodynamic brake, electric magnet brake, mechanical brake and manual stop mechanism.
Sealed slip ring, no cable twist; Carbon brush and slip ring clean; Good conductivity of electricity.
Streamline design, and good appearance.
Long acting anticorrosive treats.
Wind Solar Hybrid System, 1KW Wind Solar Hybrid System Specification
Model CNCHR-1KW
Solar Panel
Rated Power 75W*4
Power allowance ± 3%
Optimized working voltage Vm 17.2V
Optimized working current Im 4.36A
Open circuit voltage Voc 21.3V
Short circuit current Isc 4.88A
Module efficiency 13.30%
Withstanding voltage DC715V
Wind turbine
Rated Power (W) 1000W
Rated Voltage (DCV) 48V
Rated Current (A) 20A
Rotor Diameter(m) 2.7m
Start-up Wind Speed(m/s) 2.5m/s
Direction (Looking Downwind) Clockwise
Location Relative to Tower Upwind
Rated Wind Speed(m/s) 12m/s
Security Wind Speed(m/s) 35m/s
Protection Mode Yaw and Dumpload
Shell Material Aluminum Alloy
Blade Material GFRP
Blade Quantity 3PCS
Cinco Solar- the high and new technology enterprise, having long experience, specialize in the research, development, design, production and marketing of solar products and electronic environmental-protection products.
These lines cover solar power system, solar panel, solar controller, solar Inverter, etc.
We have a team of professors and senior engineers, who have devoted all their lives to do research and development in solar energy and environmental-protection products. We also have in our employment a team of marketing and management personnel, who are dedicated and experienced.
We market our products worldwide. As they are innovative, of high aesthetic value and yet, at competitive prices, they are very well received by our customers from all over the world.
