Parameter

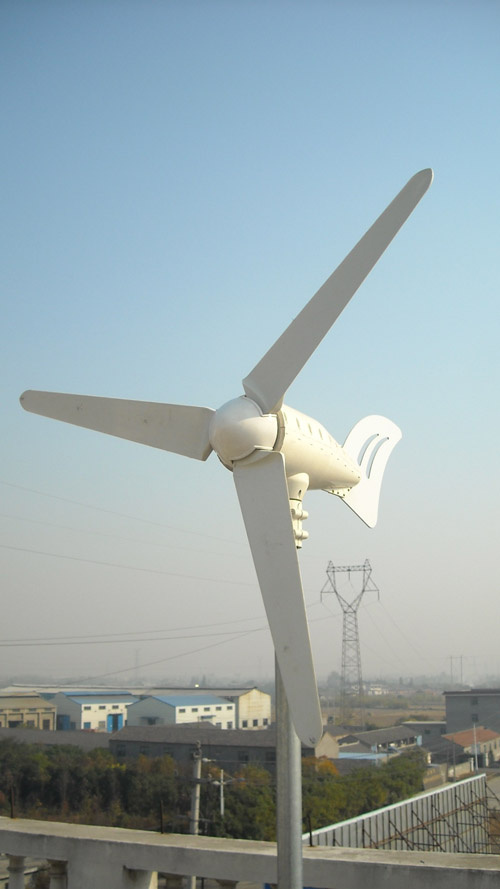

Model GuangMang
Rated power(W) 400
Rated voltage(V) 12/24
Rated current(A) 33/17
Rotor diameter(m) 1.5
Start-up wind speed (m/s) 2.5
Rated wind speed(m/s) 9.6
Survival wind speed(m/s) 35
Working form permanent magnet synchronous
Rotating direction Clockwise
Blade NO. ( piece) 3
Blade material Glass fiber reinforced plastic
Tower height (m) 6
Suggest supporting capacity battery 12V150AH * 2
Supporting inverter type Single-phase sine wave
Standard configuration price (USD)
Generator part 283
Blade part 55
In total 338
Optional accessories price (USD)
Solar-wind controller 93
Guy cable tower 85
|
Model |
GuangMang |
|
Rated power(W) |
400 |
|
Rated voltage(V) |
12/24 |
|
Rated current (A) |
33/17 |
|
Rotor diameter(m) |
1.5 |
|
Start-up wind speed (m/s) |
2.5 |
|
Rated wind speed(m/s) |
9.6 |
|
Survival wind speed(m/s) |
35 |
|
Working form |
permanent magnet synchronous |
|
Rotating direction |
Clockwise |
|
Blade NO. ( piece) |
3 |
|
Blade material |
Glass fiber reinforced plastic |
|
Tower height (m) |
6 |
|
Suggest supporting capacity battery |
12V150AH * 2 |
|
Supporting inverter type |
Single-phase sine wave |
|
Standard configuration price (USD) |
|
Generator part |
283 |
|
Blade part |
55 |
|
In total |
338 |
|
Optional accessories price (USD) |
|
Solar-wind controller |
93 |
|
Guy cable tower |
85 |
Yangzhou Shenzhou Wind-Driven Generator Co., Ltd. was established in 1996 and covers an area of 35, 000 square meters. The company is located nearby the Beijing-Hangzhou Grand Canal and be apart from the International Center of Shanghai around 250 km. It is a professional manufacturer which is dedicated on small and middle wind turbines. During these years' development and improvement, so far, the company has numerous professional and advanced manufacturing equipments and testing equipments, moreover, it has formed a supply chain cover design, manufacture, installation, commissioning, marketing and after-sales service system to create a professional production service. Our wind-driven generator covers from 300W to 50kw and other accessories to support generators. All products are available to quantify the production models to satisfy different customer groups' requirements. Meanwhile, the company has the first wind turbine laboratory for product testing in China, it provide favorable conditions of research and development for new technologies.
Moreover, the product models from 10kw to 50kw are designed without tail vane, which could automatic towards to wind intelligently by the control program, it will greatly enhance the product's stability, reliability and sustainability. This technology property rights held by and cooperate with Mitsubishi, Schneider, Omron and other international renowned brands in order to keep its advanced technology and leading position in the domestic market and oversea market. In the year of 2002, the company received two national invention patents and 3 utility model patents, and obtained the ISO9001 quality management system certification. In 2003, our company received the European CE certification with our good quality and reputation. Our products mainly exported to Europe and America, currently, we established a few sales agents prototype in those countries, and it will consolidate its foundation for further development and growth of the company.
