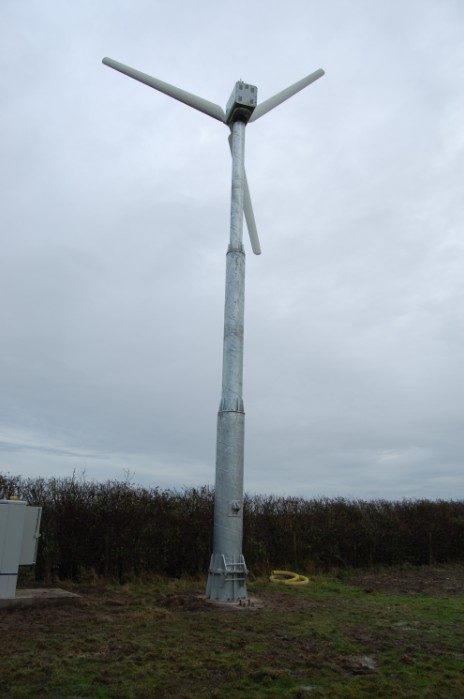

Tower:
Tower Height: 12m
Installation: Via hydraulic system without requiring for the crane
Material: Galvanized steel, three sections with different diameters, inserted into one section when transporting, which will save freight fees
Generator:
Type: Synchronous, 20 poles
Rating: 10KW, 180 rpm, 240DCV
Generator: Permanent magnet (ND-Fe-B)
Certificate: CE
Component Weight:
Tower: 1, 400 kgs Generator: 450 kgs
Blades: 80 kgs Operational Data:
Start-up wind speed: 2.5m/s
Rated wind speed: 10m/s
Cut-out wind speed: 20m/s
Survival wind speed: 45m/s
Rotor:
3 bladed, upwind
Diameter: 8.0m
Swept Area: 47.7 m2 Blades:
Fiberglass reinforced polyester
Technology: Via foaming
Protection Mode:
Yaw
Hydraulic brake
Dumpload
Manual/Automatic Controller:
Mitsubishi PLC
Schneider contactor
GPRS/ADSL remote control
Touch screen interface
Fiber glass
Yangzhou Shenzhou Wind-Driven Generator Co., Ltd. was established in 1996 and covers an area of 35, 000 square meters. The company is located nearby the Beijing-Hangzhou Grand Canal and be apart from the International Center of Shanghai around 250 km. It is a professional manufacturer which is dedicated on small and middle wind turbines. During these years' development and improvement, so far, the company has numerous professional and advanced manufacturing equipments and testing equipments, moreover, it has formed a supply chain cover design, manufacture, installation, commissioning, marketing and after-sales service system to create a professional production service. Our wind-driven generator covers from 300W to 50kw and other accessories to support generators. All products are available to quantify the production models to satisfy different customer groups' requirements. Meanwhile, the company has the first wind turbine laboratory for product testing in China, it provide favorable conditions of research and development for new technologies.
Moreover, the product models from 10kw to 50kw are designed without tail vane, which could automatic towards to wind intelligently by the control program, it will greatly enhance the product's stability, reliability and sustainability. This technology property rights held by and cooperate with Mitsubishi, Schneider, Omron and other international renowned brands in order to keep its advanced technology and leading position in the domestic market and oversea market. In the year of 2002, the company received two national invention patents and 3 utility model patents, and obtained the ISO9001 quality management system certification. In 2003, our company received the European CE certification with our good quality and reputation. Our products mainly exported to Europe and America, currently, we established a few sales agents prototype in those countries, and it will consolidate its foundation for further development and growth of the company.
