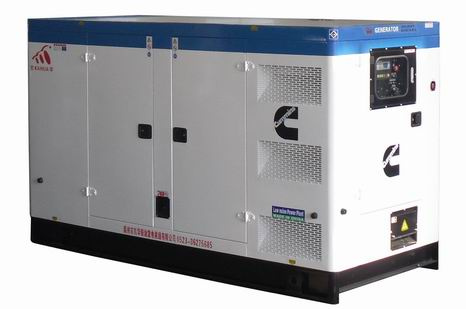

400kw CUMMINS Silent Type Diesel Generator
1. China made large generator
2. CE certification, ISO9001-2008 certification.
3. High reliability, easy maintenance, long continuous running time
4. Ideal for port, railway, industrial and mining.
5. The service to cover the world.
|
1. Specification of genset |
|
Gensets model |
KH-400GF |
|
Prime power |
500KVA |
|
Rated Voltage |
380/220V |
|
Rated frequency(HZ) |
50 |
|
Rated Speed |
1500rpm |
|
Power Factor(COS) |
0.8(lagging) |
|
Dimensions(mm) (L× W× H) |
3400x1250x1970 |
|
Net Weight(kg) |
3650 |
|
2. Specification of diesel engine |
|
Engine brand |
Cummins |
|
Engine model |
KTA19-G4 |
|
Number of Cylinders |
6 |
|
Cylinder arrangement |
Vertical in-line |
|
Cycle |
Four stroke |
|
Aspiration |
Turbocharged and Water/Air cooling |
|
Fuel System |
PT type fuel pump, EFC |
|
Bore× Stroke (mm× mm) |
159 x 159 |
|
Displacement (Liter) |
18.9 |
|
Compression Ratio |
14.5: 1 |
|
Speed Governor |
Electronic |
|
Cooling System |
Forced Water Cooling Cycle |
|
Total lubrication system capacity (L) |
50 |
|
Fuel Consumption at 100% Load (g/kwh) |
203 |
|
Starting Method |
DC24V electrical starting |
|
3. Specification of alternator |
|
Alternator brand |
Kaijieli(China-French joint venture Leory Somer technology) |
|
Alternator model |
TWGII354C |
|
Number of Phase |
3 |
|
Connecting Type |
3 Phase and 4 Wires |
|
Number of Bearing |
1 |
|
Protection Grade |
IP21 |
|
Altitude |
≤ 1000m |
|
Exciter Type |
Brushless , Self-exciting, AVR automatic voltage regulating, 100% Copper winding wire |
|
Insulation Class |
H |
|
Telephone Influence Factor (TIF) |
≤ 50 |
|
THF |
≤ 2% |
|
Voltage Regulation, Steady State |
≤ ± 1% |
|
Transient State Voltage |
≤ -15%+20% |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
