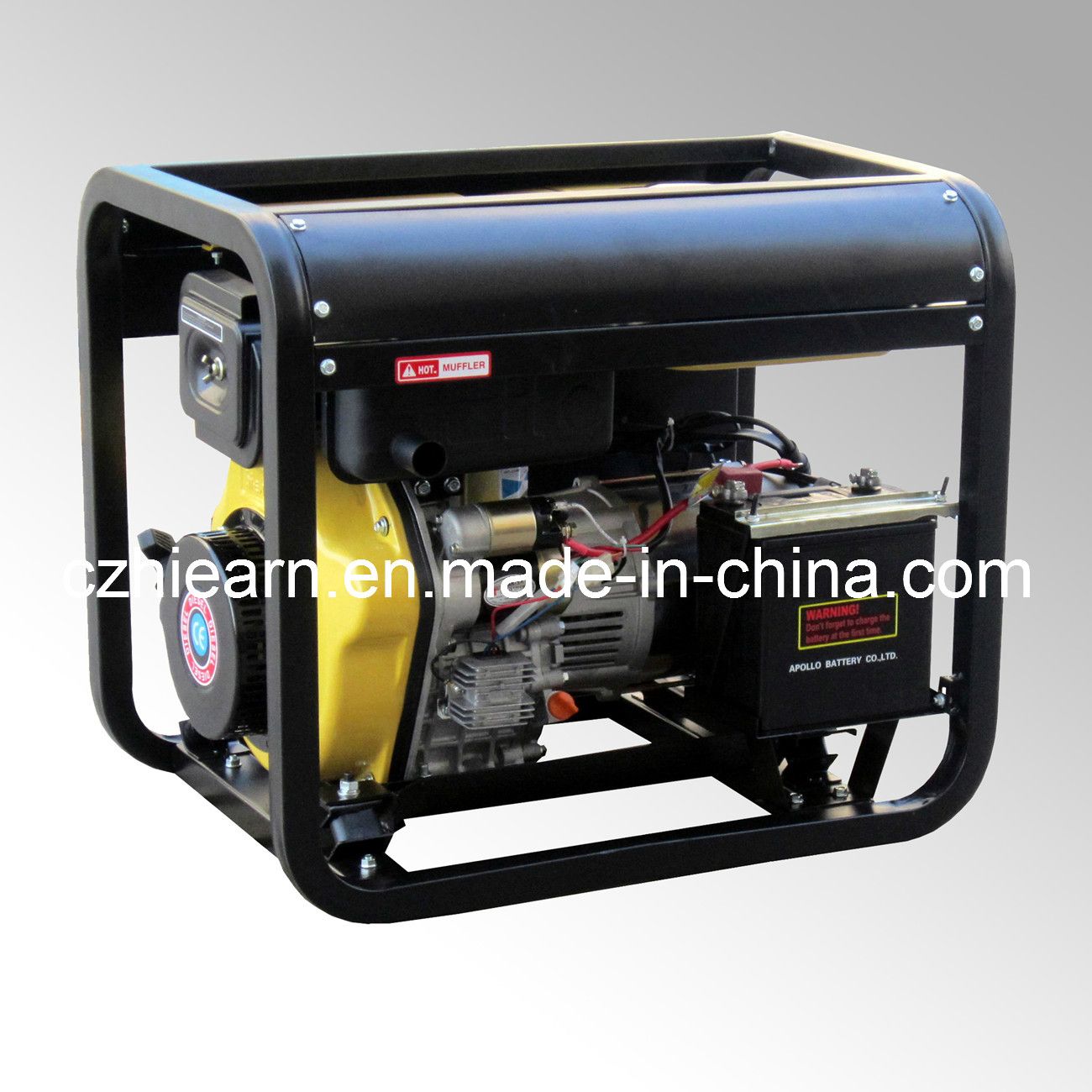

* Generator model: 4.2kw Emergency Generator (DG5000E)
*With 9 HP HR86F diesel engine and 100% copper alternator ensure a 4.2KW rated output, and 4.6KW max. Output! Open frame portable model, low weight can easy moving, applied by several families!
* All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard;
* Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!
* Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output
* 100% copper good brand alternator, every spare parts suppliers are choosed extremely strict, to control the quality well.
As a professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
|
generator |
model |
DG5000E |
|
Frequency(HZ) |
50 |
60 |
|
Max. Output (kw) |
4.5 |
5 |
|
Rated output (kw) |
4.2 |
4.5 |
|
Rated. AC voltage(V) |
120, 220, 230, 120/240 |
|
Power factor(cos& phi) |
cos& phi=1 |
|
DC output(V) |
12V/8.3A |
|
Phase |
Single phase |
|
Alternator type |
Self-excited, 2-pole, single phase alternator |
|
Starting system |
Recoil or Electric |
|
Operatong noise lecel(at 7m) |
75-80 |
|
Fuel tank capacity(L) |
12.5 |
|
Continues work(hr) |
6.5 |
6 |
|
engine |
Model |
HR186F |
|
Engine type |
Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
|
Bore*stroke(mm) |
86*70 |
|
Fuel |
0# or -10#light diesel oil |
|
Lubricatiom oil volume (l) |
1.65 |
|
Combustion system |
Direct lnjection |
|
standard features |
Voltmeter |
yes |
|
AC Output Socket |
2 |
|
AC circuit breaker |
yes |
|
Oil warning light |
yes |
|
Oil alert |
yes |
|
optional features |
DC circuit breaker |
Optional |
|
Calculagraph |
Optional |
|
Big Wheel |
Optional |
|
Three phase volatge |
Optional |
|
Current meter |
Optional |
|
ATS |
Optional |
|
Remote control |
Optional |
|
Welding |
Optional |
|
dimensions |
Dimension(L*W*H)(mm) |
755*520*625 |
|
Dry weight(kg) |
103 |
|
20FT |
96 |
