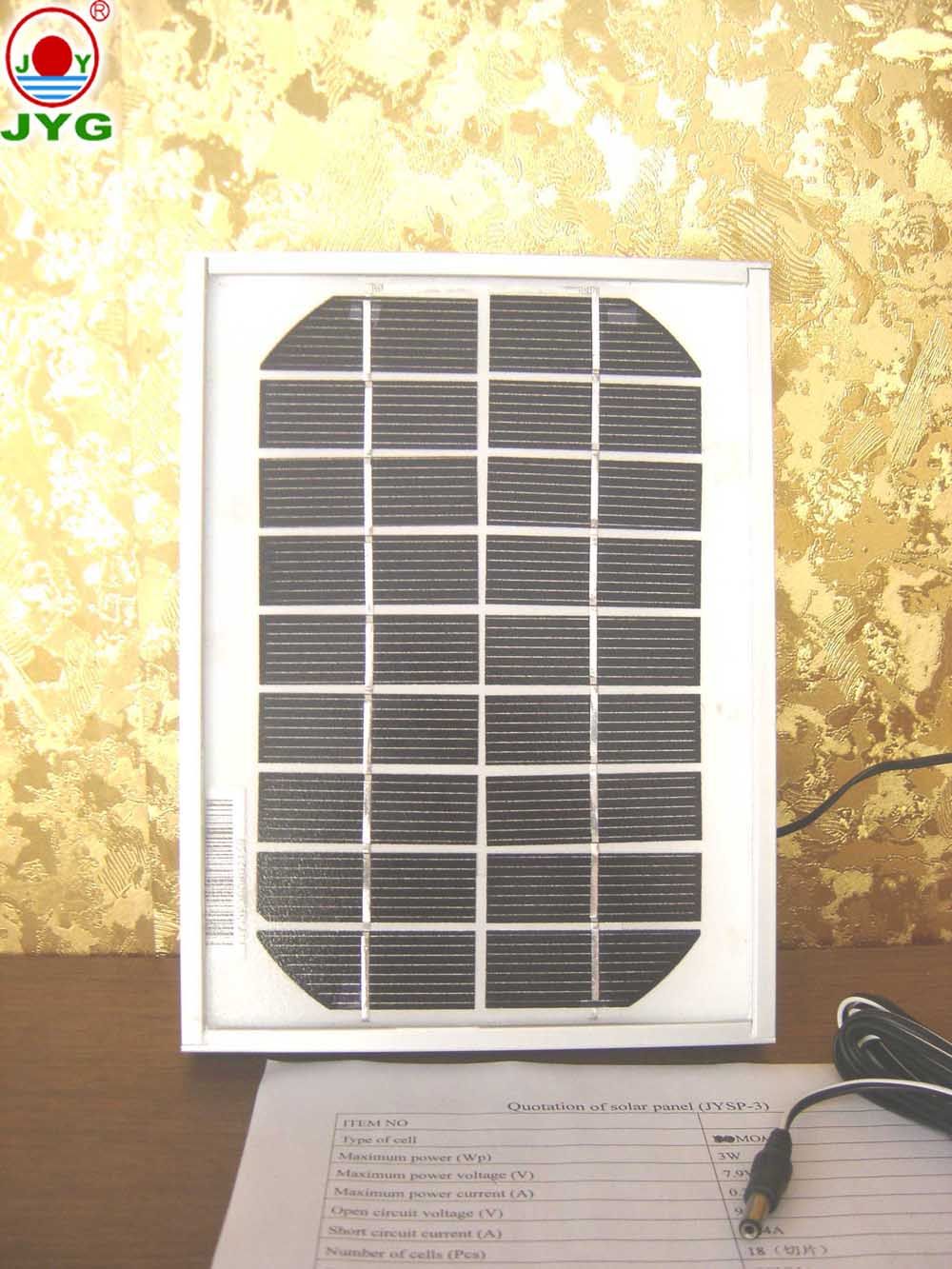

3w Solar Panels (JYSP-3W)

Name: 3w Solar Panels (JYSP-3W)
Brand: aboutgenerator.com
SKU: 621053502
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	Negotiable/Piece
Trade Terms:	S. S
Min Order:	10/Piece

Contact Supplier

Qingdao Jiaoyang Lamping Co., Ltd.

Showroom Product Company Profile

Mono/polycrystalline silicon cells crystalline silicon solar cell with high efficiency, high transmission rate and low iron tempered glass, anti- aging EVA and high frame resistant TPT to laminate, and anodized aluminum alloy. Products have high efficiency, long life, easy installation, high wind and hail impact resist-ance, etc. Advantages.
detailed descriptions:
Cell type: mono-crystalline
Number of cells and connections: 1.5pcs (125*125mm)
Maximum power(Pm): 3W
Minimum power tolerance: +/- 1%
Maximum power voltage (Vpm): 17.4V
Maximum power current (Ipm): 0.17A
Open circuit voltage(Voc): 21.4V
Maximum power current (Isc):0.17A
Module efficiency: 13.3%
Cell efficiency: ≥ 14.5
Weight: 0.5kg
Temperature coefficients: 25 degrees C, 1.5AM, 1000W/2
Power (Wp): -0.48/degrees C
Voltage (Voc): -0.37/degrees C
Short circuit current Tk(Isc): +0.10/degrees C
Maximum system voltage: 1,000V
Temperature: -40 to +85 degrees C
Frame: aluminium
Guarantee: 15 years warranty, 80% for 20 years

Specification for Mono-crystalline Silicon Solar Panel
Electricity performance data					Installation size			Module size	PCS/	N.W/	G.W/
Electricity performance data					Installation size			Module size	PCS/	PCS	CTN
Wp	Vmp	Imp	Voc	Isc	A	B	Aperture size(mm)	LWH(mm)	CTN	(Kg)	(Kg)
(W)	(V)	(A)	(V)	(A)	(mm)	(mm)	Aperture size(mm)	LWH(mm)	CTN	(Kg)	(Kg)
5W	17.5	0.29	21.5	0.32	126 mm	230 mm	4 —φ 6.4	266 × 276 × 28	10	1	12
10W	17.5	0.57	21.5	0.65	150 mm	320 mm	4 —φ 6.4	356 × 301 × 28	8	1.4	13
15W	17.5	0.86	21.5	0.97	116 mm	310 mm	4 —φ 6.4	346 × 426 × 28	8	2	18
20W	17.5	1.14	21.5	1.29	282 mm	310 mm	4 —φ 6.4	346 × 592 × 28	8	2.7	25
25W	17.5	1.43	21.5	1.61	366 mm	320 mm	4 —φ 6.4	356 × 676 × 28	8	3	25
30W	17.5	1.71	21.5	1.94	506 mm	320 mm	4 —φ 6.4	356 × 816 × 28	8	5	42
35 W	17.5	2	21.5	2.26	506 mm	320 mm	4 —φ 6.4	356 × 816 × 28	8	5	42
40W	17.5	2.29	21.5	2.58	266 mm	634 mm	4 —φ 6.4	670 × 576 × 28	8	5.5	46
45W	17.5	2.57	21.5	2.91	266 mm	634 mm	4 —φ 6.4	670 × 576 × 28	8	5.5	46
50W	17.5	2.86	21.5	3.23	570 mm	474 mm	4 —φ 6.4	510 × 880 × 40	6	6	39
55 W	17.5	3.14	21.5	3.55	570 mm	474 mm	4 —φ 6.4	510 × 880 × 40	6	6	39
60W	17.5	3.43	21.5	3.88	506 mm	634 mm	4 —φ 6.4	670 × 816 × 40	6	6.5	41
65 W	17.5	3.71	21.5	4.2	506mm	634mm	4 —φ 6.4	670 × 816 × 40	6	6.5	41
70 W	17.5	4	21.5	4.52	506mm	634mm	4 —φ 6.4	670 × 816 × 40	6	6.5	41
75W	17.5	4.29	21.5	4.84	680mm	634mm	4 —φ 6.4	670 × 990 × 40	6	7	45
80 W	17.5	4.57	21.5	5.17	680mm	634mm	4 —φ 6.4	670 × 990 × 35	6	7	45
85 W	17.5	4.86	21.5	5.49	888mm	512mm	4 —φ 6.4	670 × 990 × 35	6	8.5	53
90 W	17.5	5.14	21.5	5.81	888/444mm	512mm	4 —φ 6.4	670 × 990 × 35	6	8.5	53
100W	17.5	5.71	21.5	6.46	940/470mm	634mm	6/ φ 6.4	1580×808×35	2	16.5	37
110W	17.5	6.86	21.5	7.75	1166/583	634mm	6/ φ 6.4	1580×808×35	2	16.5	37
120W	17.5	6.86	21.5	7.75	1166/583mm	634mm	6/ φ 6.4	1580×808×35	2	16.5	37
130W	27	5.04	33.5	5.53	810/405mm	735mm	6/ φ 6.4	1580×808×35	2	16.5	37
140W	27	5.04	33.5	5.53	810/405mm	735mm	6/ φ 6.4	1580×808×35	2	16.5	37
150W	23.5	6.38	29	7.18	810/405mm	735mm	6/ φ 6.4	1580×808×35	2	16.5	37
150W	35	4.28	42	4.96	810/405mm	930mm	6/ φ 6.4	1580×808×35	2	16.5	37
165W	23.5	7.02	29	7.82	1270/635mm	765mm	6/ φ 6.4	1580×808×35	2	16.5	37
170W	35.5	4.79	42.6	5.37	810/405mm	930mm	6/ φ 6.4	1580×808×35	2	16.5	37
175W	36	4.86	43.2	5.45	1270/635mm	765mm	6/ φ 6.4	1580×808×35	2	16.5	37
180W	36.5	4.93	43.8	5.53	810/405mm	930mm	6/ φ 6.4	1580×808×35	2	16.5	37
185W	36.5	5.07	43.8	5.68	1270/635mm	765mm	6/ φ 6.4	1580×808×35	2	16.5	37
190W	36.8	5.16	44.2	5.78	810/405mm	735mm	6/ φ 6.4	1580×808×35	2	16.5	37
195W	36.8	5.3	44.2	5.94	810/405mm	930mm	6/ φ 6.4	1580×808×35	2	16.5	37

Prod Model:	JYSP-3W

JoySolar

Founded in 1984, specializes in developing and manufacturing customized solar products for a wide range of solar energy applications. Our main products are solar outdoor lights, solar modules and solar power systems.

Our experienced engineering team is committed to providing our customers with high quality solar powered products and excellent customer service. Our facilities are ISO 9001: 2008 certified, and our products comply with TUV, CE, and RoHS.

Our advanced engineering team researches, develops and manufactures best-of-breed solar outdoor lights and solar power ystems. Each components of our products are carefully designed, integrated and configured to ensure that you receive the most economic, reliable and efficient solar outdoor lights and solar power ystems.

We aim to provide energy saving and environmentally friendly solar powered products solutions at competitive prices around the world.

JoySolar Advantages

1. The Most Competitive Price

- As one of the leading manufacturers of solar outdoor lights, solar modules and solar power systems, JoySolar engineering team designs the most economic solar outdoor lights and solar power systems in many aspects (such as production cost, transportation cost, installation cost and maintainance cost ).
- JoySolar' solar outdoor lights and solar pwer systems with the most reasonable configurations and the best components sells outdoor lights and solar pwer systems at the most favorable prices in the industry.
- We pay attention to every component and work diligently to ensure that every step of the energy conversion process is maximized.
- We only use the best components so that we minimize the total cost of ownership for our customers.

2. JoySolar Solar Light for You

- JoySolar works with our customers to design the best solar powered solutions for their individual needs.
- We customize every solar lighting systems and solar power systems part by part to ensure it is the optimal choice for your environment, temperature as well as sunlight duration.
- There are hundreds of light fixtures and pole designs you can choose from.

3. Customer Service

- JoySolar offers you excellent customer service with highly competitive prices.
- Our sales and service team in China will provide you with attentive service along with durable and dependable solar outdoor lights and solar power systems.
