1) Alluminum Alloy material, lighter and beautiful
2) CE &ISO9001 approved
3) with slip ring and carbon brush to avoid twist
4) guy wired tower or free stand tower according the clients' requirement.
5) has exported to at least 80countries and areas.

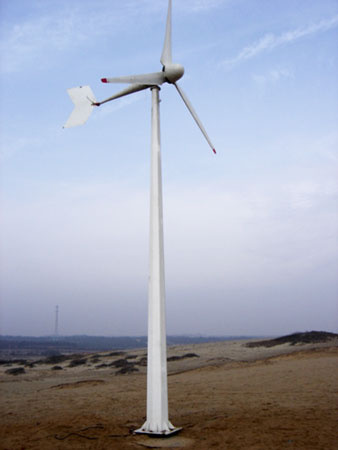

Model: 3000W wind turbine/generator
Blade dimetre: 5.0m
Rated rotated speed: 220r/m
Rated wind speed: 10m/s
Rated power: 3000W
Max Voltage: 4500W
Output Voltage: 220V
Start up wind speed: 3m/s
Operating power: 3-25m/s
Security wind speed: 40m/s
Height of tower: 9m
Weight of top section: 215kg
Inverter parametre: DC220V_the local general voltage
Guy mast tower: 133*5
FOB(Qingdao): 2500US Dollars
Capacity and quantity of battery(reference): 12V100AH 16PCS
CAN SUPPLY POWER FOR: AIR CONDITIONER, SMALL GAS STATION, TOLL GATE, REFRIGERATOR, WASHING MACHINE, WATERPUMP, ELECTRIC COOKER, COLOR TV, LIGHTING, ELECTRIC FAN AND CHARGING.
| Wind turbines specifications | Wind turbine description |
| Type of generator | Permanent – magnets-3phase AC |
| Model | 1 KW | 3KW |
| Blade diameter | 3.2 m | 5.0 m |
| Blades material | Fiber glass(FRP) | Fiber glass(FRP) |
| Rated Rotated speed | 200-400 (r/m) | 100-400(r/m) |
| Rated wind speed | 8 m /s | 10m /s |
| swept area m² | 8.0 m² | 19.63m² |
| Rated output power | 1000w | 3000w |
| Max power | 1500w | 4500 w |
| Output Voltage : DC | DC 48 V 50HZ/60HZ | DC 192V 50HZ/60HZ |
| Braking system | Electronic braking system | Electronic braking system |
| Startup wind speed : 3m/s | 3m /s | 3m /s |
| Work wind speed: 3-25m/s | 3-2 5 (m/s) | 3-2 5 (m/s) |
| Security wind speed | 40m /s | 40m /s |
| temperature | -40 -60 | -40 -60 |
| Rate-limiting mode | Rotating empennage + reluctance | Rotating empennage + reluctance |
| Total weight(kg) N.W | 156KG | 527KG |
| Total weight(kg) G.W | 192KG | 606KG |
We specialize in this field for several years, with the strength of wind turbines, with good quality and pretty competitive price. SHANDONG JIALI NEW ENERGY Co., Ltd founded in 1994, specialized in manufacturing wind turbines, the main products are 200W, 300W, 600W, 1KW, 2KW, 3KW, 5KW, 10KW, 20KW, 30KW, 50KW and 100KW wind turbines and small solar panels, wind solar hybrid systems. Products are exported to the United States, Germany, Britain, France, Pakistan, Indonesia, Mongolia, has a customers high praise.
