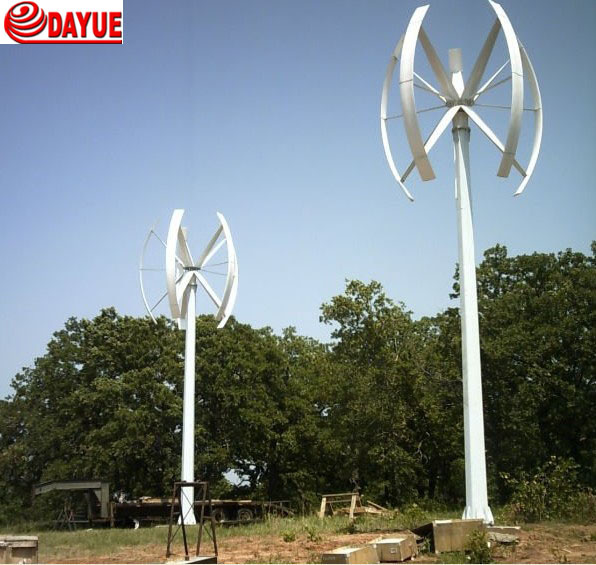

FDV-3KW Vertical Axis Wind Turbine1. This turbine is adopted maglev axis and can be used for on-grid and off-grid, there's on-grid and off-grid controller and inverter we supply for this turbine
2. With 3PCS carboform & FRP blades, which can withstand more than 50m/s wind gust
3. With electricmagnetic brake system
4. Equipped with the hybrid controller, which can connect 1/3 solar panel of rated power of wind turbine
5. Low noise (in 63dB, testing in tower base under more than 18m/s wind speed )
6. Easy installation, it can be installed on rooftop of users

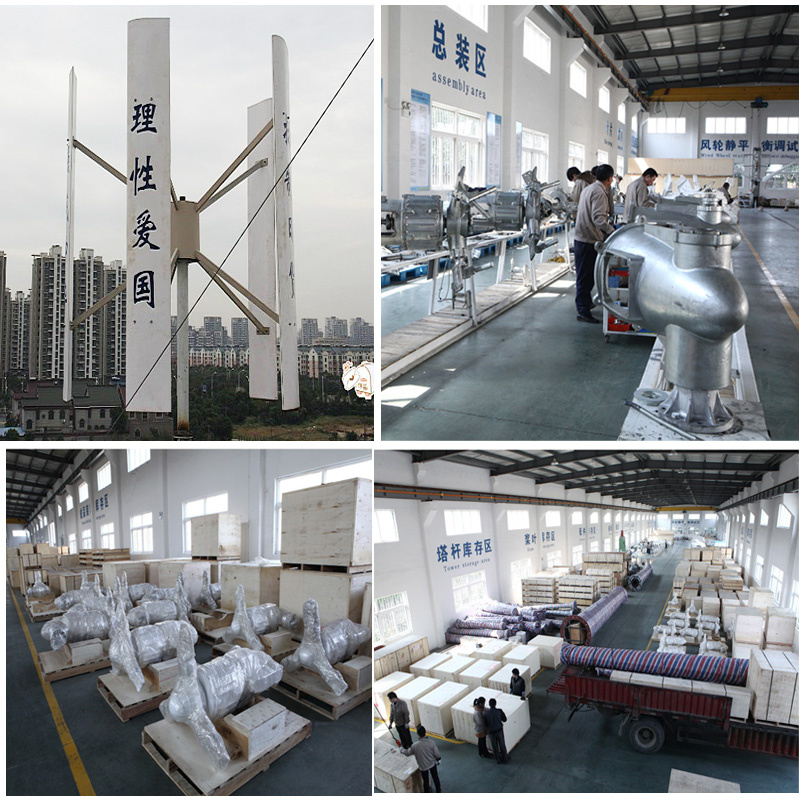

Factory view:
Model |
FDV-3000 |
Rated Power |
3000W |
Rotor diameter |
3m |
Height of blades |
3.6m |
Number of blades |
3 Pcs |
Rated rotor speed |
150r/min |
Rated wind speed |
9-11m/s |
Start-up wind speed |
2m/s |
Work wind speed |
3-25m/s |
Survival wind speed |
50m/s |
Generator Output voltage |
AC220V/380V |
Charge Voltage |
DC240V |
Inverter Output Voltage |
220Vac/50hz |
Tower type |
Free Standing Tower |
Height of tower |
8m, 10m, 12m, 15m height for selection
Hydraulic Tower and Free standing Tower Available |
Suggested Batteries |
20Pcs
12V100AH |
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
