| Price: | US $ 7500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

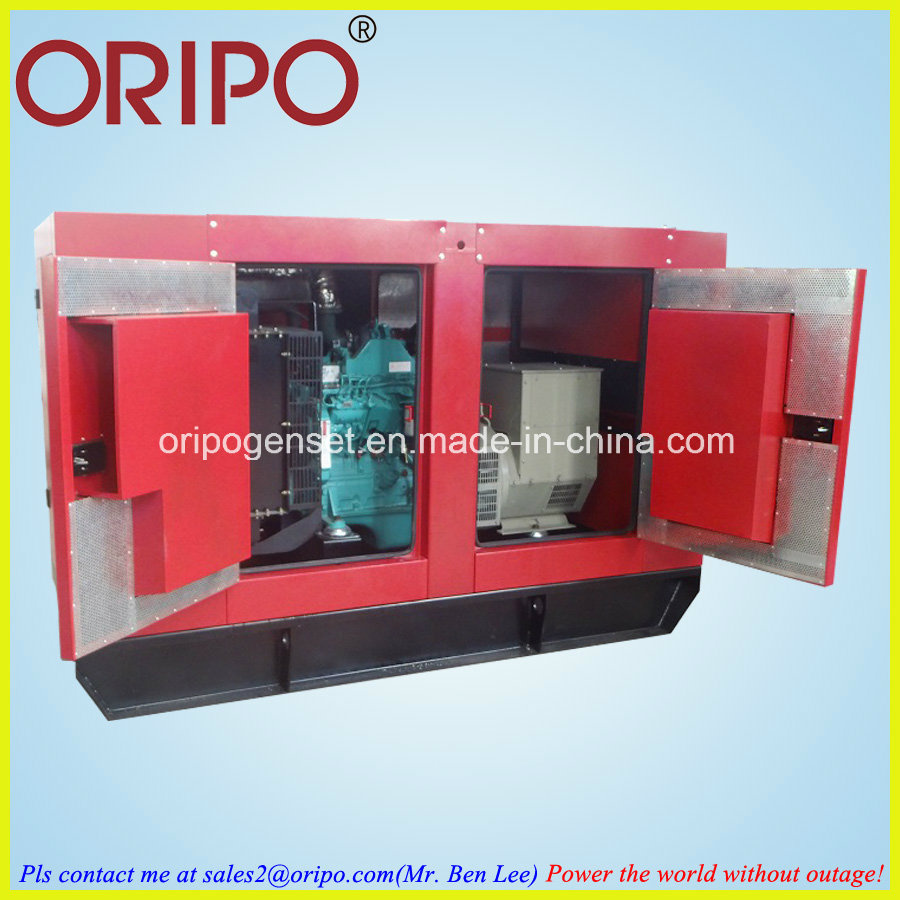

Generator For Sale Low Price of 38kva 30kw Open / Silent Generator Set
Product Features:
1. With Brand New Cummins Engine.
2. 100% Copper Alternator Generator.
3. Good Quality and Rapid Service.
4. Lasted 8 Hours Running Fuel Tank.
5. Fuel Less Generator.
6. If With ATS, Can Be Automatic Started When Out Of Electric Supply.
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER | ||
| KVA | KW | KVA | KW | ||||
| OCL-40 | 40 | 32 | 38 | 30 | 4BT3.9-G2 | LTG184H1 | 6110 |
220/380V, AC, 50Hz, 0.8PF (lag), Three phase four wires
Generator set specifications| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 215(8) |
| Starting Battery Capacity ,A/hrhhr | 60*2 |
| Total Coolant Capacity ,L | 21 |
| Fuel Capacity (base tank),L | N/A |

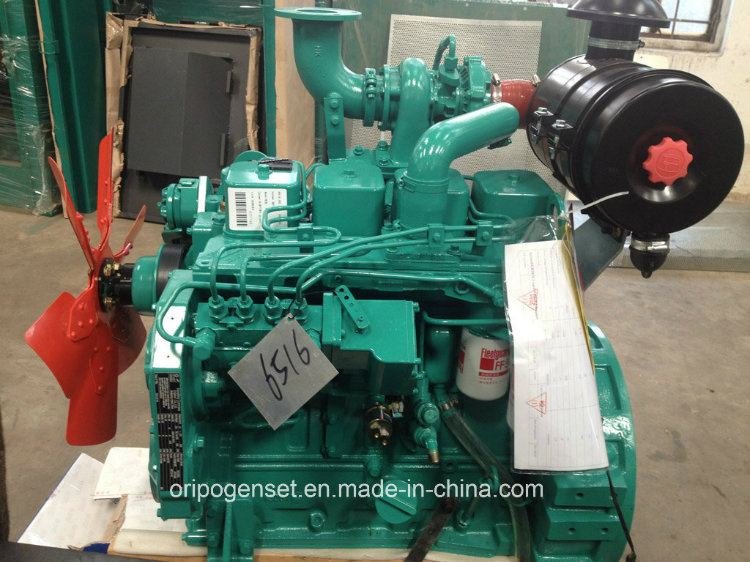

| Model | 4BT3.9-G2 |
| Type | In-line 4 Cylinder,4 Cycle |
| Displacement ,L | 3.9 |
| Compression Ration | 16.5:1 |
| Aspiration | Natural |
| Fuel System | A type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 102*120 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 11 |
| Coolant Capacity, L | 21 |
| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |
| Exhaust air flow | 6.48m3/min |
| Exhaust Temperature | 487ºC |
| Max Back Pressure | 10kPa |
| Max Intake Restriction | 6.35kPa |
| Burning Capacity | 2.69m3/min |
| Air Flow | 146m3/min |
| Total Lubricant Capacity | 11L |
| Lubricant Consumption | ≤4g/kwh |
| Engine Oil Tank Capacity | 9.5L |
| Oil Pressure at Rated Speed | 345kPa |
Company Profile:
Location:
Address: No.6 Front row of Chihua Industrial Zone, Chencun Town, Shunde District, Foshan City, Guangdong Province, China.
Contact person: Ben Lee Tel: +86-18923200499| Prod Model: | OCL-40 |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: | 50/60 Hz |
| Rated Power: | 38kVA/30kw |
| Rated Voltage: | 220/380V |
| Rated Current: | 54A |
| Air Intake System: | Turbocharged |
| Start System: | Electric Start with Battery Charger |
| Type: | Micro-Computer Control Automatic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
| Speed: | 1500/1800 Rpm |
