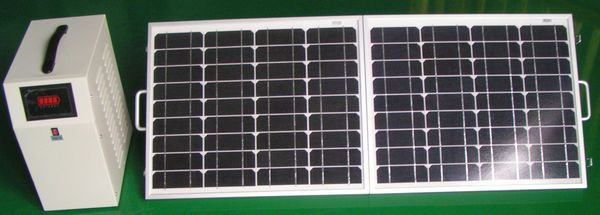

THE SYSTEM INCLUDES:
1) PV module: 60W conversion efficiency 14.5%
2) Control & inverter box, DC12V/AC220V, 300kw, pure sine wave:
3) 12V38AH sealed lead-acid battery
4) Leakage protector, lightning arrester (optional)
5) High quality cables for connection
SUPPLY POWER TO FOLLOWING APPLIANCES:
Energy saving lamp
Electric fan
Small refrigerator
Vacuum cleaner.
|
NESH-300 |
|
System Technical data: |
|
Capacity |
300W |
|
System voltage |
12VDC |
|
Input |
DC |
17.2V DC |
|
AC |
---------- |
|
Output |
DC |
12V /2A |
|
AC |
220V AC/50HZ |
|
Rated Output Power (300W) |
300W |
|
Inverter |
Output wave |
Moidfied sine wave |
|
Output voltage |
AC/220V |
|
Output frequency |
50HZ |
|
Precision of output frequency |
± 6% |
|
Solar panel |
Pmax |
60W |
|
Vmp |
17.5V |
|
Imp |
3.43A |
|
Battery |
Capacity |
12V38AH |
|
Protection |
Overload, Short Circuit, Reverse Polarity (Fuse) Over / Low Input Voltage |
No. 36 Research Institute of CETC is A FIRST CLASS Scientific Research Institute engaged in Technical Research & Equipment Development in the fields of Communication & Specialized communication. Specialized Fields comprises of broadly as Signal processing, RF Power, Antennas, Software & Computer Application, Wired & Wireless Communication, Chip Board Electronics, Solar Panel & Systems, Solar Applications & Configuration, etc. Our R & D Center is rated as a 1st Class Center in China, with considerations towards Green Energy, Environment Protection coupled with most Advanced Scientific Equipments to assist our Research Facilities, Design & Development Methods. Our Testing Equipments & Machinery are from high quality manufacturers from around the world and also from within China. We also have the largest setup for the lowest frequency Anechoic Chamber in China. Our Computer Aided Design Center (CAD), Simulation Laboratory, Testing Centre, Precision Component Manufacturing Center are considered the best in the industry.
New Energy Sector is the primary division of No. 36 Research Institute, which specializes in Design, Development, Manufacture, and Distribution of High Quality Solar Modules & Solar Application System and offers Technology Services. The products include High Efficiency Mono Crystalline & Polycrystalline Solar Panel ranging between 10 Watts & 300 Watts; Solar Power Generation Systems for Home & Commercial establishments for use with different appliances; Solar Off Network / Grid connected Power Generation Systems and customized products tailor made to specific requirements. The New Energy Sector is equiped with advanced testing and manufacturing devices to cater with and excellent product line. We are capable of conducting a thorough Analysis & Evaluation of Raw Materials, Performance & Finished Products. Our products have been Certified by bodies such as: TUV, CGC, and CE.
