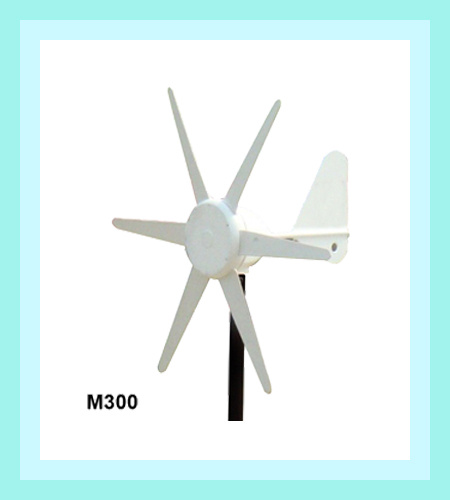

1. Fan-driven generator
2.15-20 work life
3. Start wind: 1m/s. NO noise
4. Easy installment
5. CE&RoHS
Product Description:
Adopt high-quality and high-strength permanent materials to ensure high energy conversion efficiency.
Adopt high-quality and high-strength aluminum alloy to make the unit light weight and easy installation.
The fiber-glass blades have the advantages of great intensity and excellent fatigue resistance.
Stainless steel shaft and screws to avoid rust and corrosion.
And the surface is coated with pollution-free material. Working environmental temperature from -20C-50C.
Electromagnetic brake is with the function of over-speed and over-current protection
|
Model |
M-300 |
|
Rated power(W) |
300 |
|
Rated voltage (DCV) |
12 or 24 |
|
Rated current(A) |
25 or 12.5 |
|
Rotor diameter(M) |
0.99 |
|
Start-up wind speed(m/s) |
1 |
|
Rated wind speed |
/ |
|
Security wind speed(m/s) |
45 |
|
wind turbine type |
permanent magnetism 2 phases DC generator |
|
Yaw mode |
mechanical |
|
wind turbine work life(year) |
15-20 |
|
Blade material |
fiber glass |
|
Blade quantity |
6 |
|
Guy cable tower height |
6 |
|
Matched inverter type |
sine wave |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
