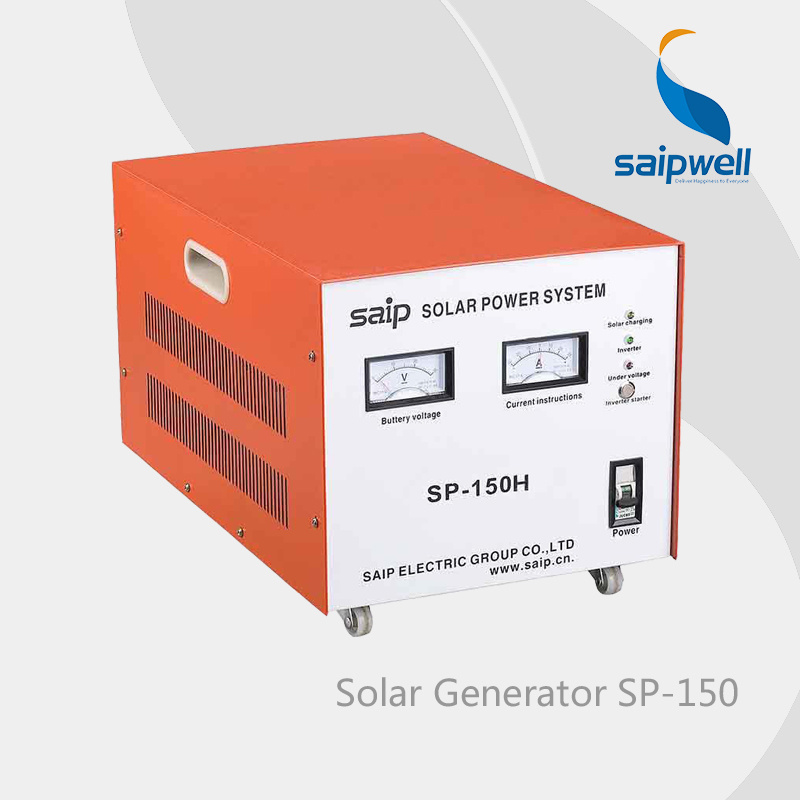

Saipwell Portable Household Solar System(SP-150H)
Packaging & Delivery
Packaging Detail: Standard export package
Delivery Detail: 3-7days
Product Specifications
2014 New Home Solar Power Electric Machine SP-150H
1. CE & RoSH
2. Simple structure
3. Energy saving
4. Protection settings
Product Features:
1. Simple structure, easy maintenance
2. Output for pure sine wave
3. Micro-computer chip controller, PWM regulator, automatic temperature compensation
4. Electronic insurance tube is replaced of fuse, surge and over-current protection
5. Protection is wide, over-voltage, under-voltage, overload, short-circuit protection, etc
6. High performance, especially used at home
7. Double Charge fuction: Solar and city power
ABOUT US
SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality, reasonable price, best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
Contact Us
Saipwell Electric Group Company Limited
Add: NO. 512, Wenchuan Road, Shanghai, 201906 China
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Model |
SP-150L |
SP-150H |
|
Capacity |
150VA |
150VA |
|
System Voltage |
|
12VDC |
12VDC |
|
Best Output Power Everyday |
|
173WH |
346WH |
|
Inverter |
Output Wave |
Pure Sine Wave |
Pure Sine Wave |
|
Output Voltage |
AC110V or 220V,DC12V |
AC110V or 220V,DC12V |
|
Output Frequency |
50Hz/60Hz |
50Hz/60Hz |
|
Precision Of Output Frequency |
±6% |
±6% |
|
Solar Panel |
Pmax |
50W |
100W |
|
Vmp |
17.5V |
17.5V |
|
Imp |
2.9A |
5.7A |
|
Battery |
Capacity |
12V75AH |
12V120AH |
Package Data:
|
Model |
SP-150L |
SP-150H |
|
Part |
Size (L x W x Hmm) |
Weight (Kg) |
Size (L x W x Hmm) |
Weight (Kg) |
|
Power Box |
450 x 380 x 655 |
68 |
450 x 295 x 255 |
60 |
|
Solar Panel |
850 x 610 x 60 |
6.5 |
1250 x 740 x 75 |
12 |
|
Solar Panel Bracket |
825 x 760 x 55 |
9.2 |
1460 x 85 x 75 |
13 |
|
Battery |
406 x 174 x 208 |
37 |
406 x 174 x 208 |
37
|
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
