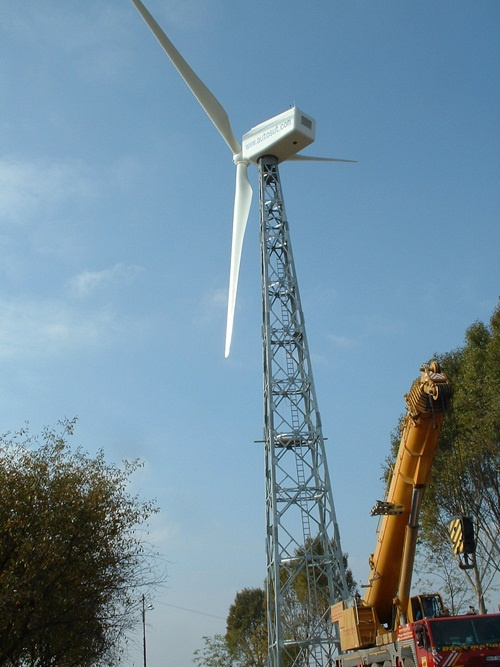

Our products has been sold to many countries, we have installed a 200KW wind turbine in Romania, that's our sample overthere, which is installed for a coming goverment project. These photos are taked several days ago! If you want, we also would like to invite you to have a look over there.
|
NO. |
Project |
Specification |
|
1 |
Turbine |
|
|
1.1 |
Type |
28/300 |
|
1.2 |
Rated power (kW) |
300 |
|
1.3 |
Power control |
Active blade pitch control |
|
1.5 |
Cut-in wind speed (m/s) |
3.5 |
|
1.6 |
Rated wind speed(m/s) |
14 |
|
1.7 |
Cut-out wind speed (m/s) |
25 |
|
1.8 |
Anti- maximum wind speed (m/s) |
60 |
|
1.9 |
Hub height(m) |
30 |
|
1.10 |
Designing service life (year) |
20 |
|
1.11 |
Operation environment |
-40~+50 |
|
2 |
Rotor |
|
|
2.1 |
Rotor diameter(m) |
28 |
|
2.2 |
Swept area (m ) |
615 |
|
2.3 |
Circum direction |
Horizontal axis upper wind clockwise |
|
2.4 |
Tilt angle (° ) |
4 |
|
2.5 |
Cone angle (° ) |
0 |
|
2.6 |
Rotor speed(variable)(rpm) |
28~44 |
|
2.7 |
Rated speed (rpm) |
40 |
|
2.8 |
Blade material |
Glass fiber composite(GFK) |
|
2.9 |
Number of blades |
3 |
|
2.10 |
Blade length (m) |
13.5 |
|
2.11 |
Blade weight (kg) |
1000 |
|
3 |
Gear box |
|
|
3.1 |
Type |
Parallel stage/planetary stage |
|
3.2 |
Ratio |
1: 25 |
|
3.3 |
Efficiency |
≥ 97% |
|
3.4 |
Rated power (kW) |
330 |
|
3.5 |
Lubricate mode |
Splash/forced lubrication |
|
4 |
Generator |
|
|
4.1 |
Type |
Asynchronous generator |
|
4.2 |
Rated power (kW) |
300 |
|
4.3 |
Rated voltage (V) |
AC400 |
|
4.4 |
Rated frequency (Hz) |
50 |
|
4.5 |
Rated speed (rpm) |
990 |
|
4.6 |
Protection class |
IP54 |
|
4.7 |
Isolation grade |
F |
|
5 |
Brake system |
|
|
5.1 |
Aerodynamic |
Blade pitching |
|
5.2 |
Mechanical |
Disc brake |
|
6 |
Yaw |
|
|
6.1 |
Control |
Initiative yaw |
|
6.2 |
Drive |
1 electro motor |
|
7 |
Control system |
|
|
7.1 |
Type |
PLC |
|
7.2 |
Monitor |
Remote control and center monitor for turbine in wind farm |
|
8 |
Converter |
IGBT converter |
|
9 |
Anti-thunder protection |
|
|
9.1 |
Anti-thunderDesign standard |
According to IEC1024-I design |
|
9.2 |
Anti-thunder way |
Blade tine Anti-thunder |
|
10 |
Tower |
|
|
10.1 |
Type |
Taper canister |
|
10.2 |
Height (m) |
35 |
|
11 |
Foundation |
Based on the report of the Geological Survey |
|
12 |
Weight |
|
|
12.1 |
Nacelle(t) (no include rotor) |
Approx 10 |
|
12.2 |
Rotor (incl Hub) (t) |
Approx 4 |
|
12.3 |
Tower (t) |
Approx 26 |
