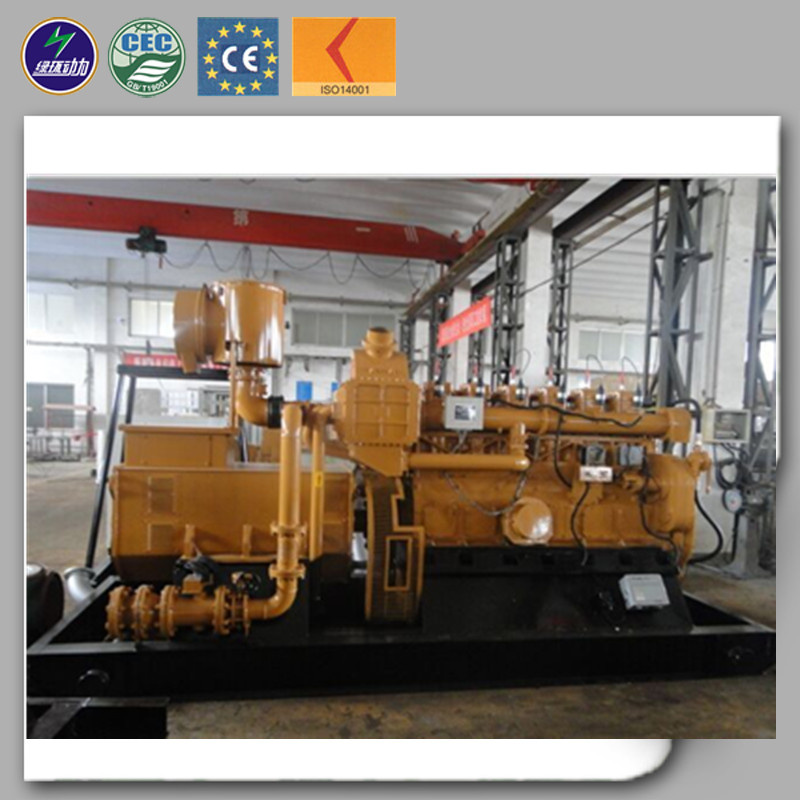

300kw Heat and Power Combined/High Efficient CE&ISO Biogas Generator Set Power Plant 6190 engine LVHUAN China to Russia
1.We have a sales staff can speak Russian, If you from Russia, kazakhstan , Ukraine, Belarus, Uzbekistan, And other countries,you can visit our Russian website: www.lvhuanpower.ru.
2.Requirements For Biogas Gas Genset Working Condition:
Within 1m from pressure regulating valve of gas intake
Gas temperature ≤ 40ºC
Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
H2S ≤ 200mg/Nm3
NH3 ≤ 20mg/Nm3
CH4 content ≥40%, changing rate ≤ 2%min
Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Moisture content ≤ 40g/Nm3
3.Advantage:
Strong structure & Strengthen accessories
Super performance of electric speed governer & Gas pressure regulation system
Auto voltage regulation & Stable working condition
Long using life and low-operation cost
Easy Start & Auto start
High quality & imported & accurate gas control system
Low requirement on gas heat value for easy generation
Strong control system anti-interference ability
4.Parameter of 300kw Biogas generator set:
Model |
LHBG300 |
Standard |
JB/T9583.1-99 |
Engine model |
LH6190 |
Alternator model |
Brushless /IP23/3PH 4Wire) |
Machine power |
240KW/300KVA |
Rate voltage |
400V / 220V (adjustable) |
Rate frequency |
50/60Hz |
Rate power factor |
0.8 |
Rate speed |
1500r/min |
Speed regulation mode |
Automatic |
Voltage regulation mode |
Automatic |
Operation model |
Auto/Manual |
Cooling mode |
Open/close water cooling |
Start mode |
24V DC electric motor |
5.Parameter of 300kw Biogas engine:
Engine mode |
LH6190 |
Sparking mode |
Sparking pl |
Gas mixing type |
IMPCO |
Heat Consumption |
≤10MJ/kW.h |
Cylinder number&type |
6 & Link |
EGT |
≤650ºC |
Cylinder diameter |
190mm |
Stroke |
210mm |
Displacement |
35.70L |
Lubrication |
Pressure and splash |
Rate speed |
1500rpm |
Cooling model |
Open/closed water cooling |
Emissions targets |
EU III |
Noise |
≤105dB
|
6.Company Introduction:
Since 2008
Factory area over 40000m2
Starff over 260 employees
Technicians over 100 people
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
