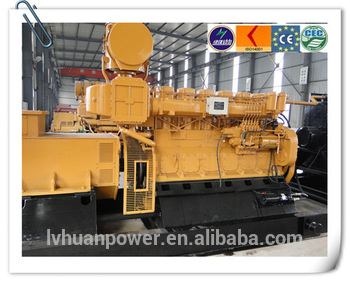

300kw Biomass Gas Generator Set Power Lvhuan From China to Russia

300kw Biomass Gas Generator Set Power Lvhuan from China to Russia


Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market.
With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.

Biomass is biological material derived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology.

Shandong Lvhuan Power Equipment Co.,Ltd is a pioneer and practitioner in green energy and renewable resources.

Main composition of biomass gas:
After being gasified, the basis of gas is CO(20%), H2(9%), CH4(12%),CO2(12%), N2(52%), The lower heating value is 5-6 MJ/Nm3.
Efficiency of gasification:1 kg dried material can generate 2 Nm3 gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.

Requirements for biomass gas:
Within 1m from pressure regulating value of gas intake;
Gas temperature<40ºC
The ratio of CH4 in natural gas >70%;
Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;
H2S≤200mg/Nm3;
NH3≤20mg/Nm3;
Tar content≤20mg/ Nm3;
Moisture content ≤40g/Nm3;
Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3
Heat value≥4.2MJ/Nm3


Parameters of Biomass Generator Set:
Model Number (Engine Type)	LHBMG300
Brand Name	LVHUAN
Prime Power/Standby Power	240KW/300KW
Rated Speed	1000/1200RPM
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1s
Heat consumption	≤9.8mj/kw.h
Lubricant consumption	≤1.6g/kw.h
Engine Capacity	32 L
Cylinder Number	6
Cylinder Bore	190mm
Stroke	210mm
Starting System	DC 24V electric motor
Cooling method	water cooler
Lubricant method	Passive and flying lubricant
Isolation class	H
Protection	IP23
Alternator	Siemens
Power Factor	0.8 lagging
Exciting method	brushless
Colour	your choice
Certificates	ISO 9001:2008, CE
Warranty	1 year or 1000 running hours which arrives first
Type	Open
Control system	Automatic alarm system
Size	5300x1970x2170mm(without canopy)
Weight	8200kg

Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression  ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system:EGS gas controller of American WOODWARD Company.
scope of application:Biogas generator set is widely used in the many area where can generate biogas,like rubbish landfill,livestock excrement disposal,industrial organism disposal.

1)Service:

1.pre-sale service:

(1)We will send our engineer to prospect the site of power station free to charge.

(2)According to the situation of site we can supply you many drawings:like power station floor plan,

engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.

2.Sale service:

(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.

(2)We will debug the generator set till it can generate power successfully.

(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.

3.After-sale service:

(1)Our every engineers are in charge of different area,we will response periodically and support you

technical service free of charge,

(2)For the quality problem, we will service for you free of charge during the guarantee period.

(3)One year guarantee period and lifetime service.

(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.

2)Accessories:

1.Application scope of the Accessories,such as 12v190,8v190,6190,6135 and other engine types.

2.All parts were from original factories or professional factories,complete in specification,keep good quality.
