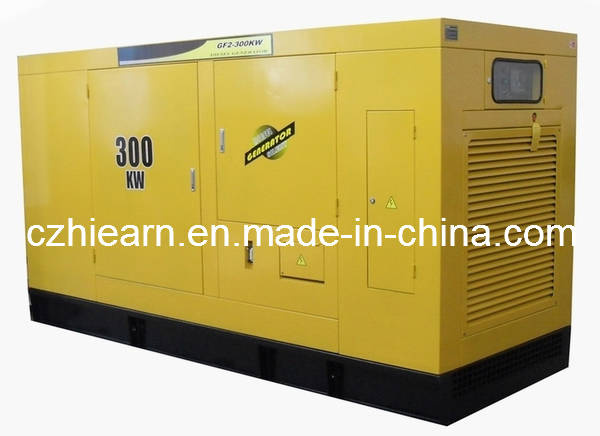

Diesel Generator (GF2-300KW)
1. Frequency(Hz): 50/60
2. Rated output: 300KW
3. Max. Output: 375KW
4. Rated voltage: 400/230
5. Rated currency: 540A
6. Phase: 3 phase 4 wire
7. Cylinders: 12
We are manufactory, Not trading company.
We can give the best service for my customer.
We have sales lots this type generator, We have enough experience.
Guarantee are one year. (according correct operation the generator)
Within in guarantee, everything will be Free spare parts.
I would appreciate for your any comments about our offer.
Including price, quality, service. No matter if it is positive answer,
It is grate helpful for us to meet your requirment.
Thanks!
|
ENGINE DATA |
|
Manufacturer/Model: |
CCEC Cummins NTA855-G2A,4-cycle |
|
Air Intake System: |
Turbo,Water/Air Cooling |
|
Fuel System: |
PT type fuel pump,EFC |
|
Cylinder Arrangement: |
6 in line |
|
Displacement: |
14L |
|
Bore and Stroke: |
140×152(mm) |
|
Compression Ratio: |
14.0:1 |
|
Rated RPM: |
1500rpm |
|
Max.Standby Power at Rated RPM: |
343KW / 466HP |
|
Governor Type: |
Electronic |
|
Exhaust System |
|
Exhaust Gas Flow: |
1126L/S |
|
Exhaust Temperature: |
563 degree |
|
Max Back Pressure: |
10kPa |
|
Air Intake System |
|
Max Intake Restriction: |
10kPa |
|
Buring Capacity: |
425m3/min |
|
Intake Flow: |
8180L/S |
|
Fuel System |
|
100%(Prime Power) Load: |
200.2 g/Kw.h |
|
75%(Prime Power) Load: |
203.5 g/Kw.h |
|
75%(Prime Power) Load: |
213.3 g/Kw.h |
|
Oil System |
|
Total Oil Capacity: |
36.7L |
|
Oil Consumption: |
0.24L/H |
|
Engine Oil Tank Capacity: |
34L |
|
Oil Pressure at Rated RPM: |
241-345kPa |
|
Cooling System |
|
Total Coolant Capacity: |
85L |
|
Thermostat: |
82-93 degree |
|
Max Water Temperature: |
104 degree |
|
|
|
|
|
|
|
|
|
ALTERNATOR SPECIFICATION |
|
GENERAL DATA |
|
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards. |
|
Alternator Data |
|
Manufacturer: |
Stamford / Leroy somer / Engga / Marathon / Kaijieli / Dingol |
|
Number of Phase: |
3 |
|
Connecting Type: |
3 Phase and 4 Wires,"Y" type connecting |
|
Number of Bearing: |
1 |
|
Power Factor: |
0.8 |
|
Protection Grade: |
IP23 |
|
Altitude: |
≤ 1000m |
|
Exciter Type: |
Brushless,self-exciting |
|
Insulation Class,Temperature Rise: |
H/H |
|
Telephone Influence Factor(TIF): |
< 50 |
|
THF: |
< 2% |
|
Voltage Regulation,Steady State: |
≤ ±1% |
|
Alternator Capacity: |
350KVA |
|
Alternator Efficiencies: |
93.50% |
|
Air Cooling Flow: |
0.8m3/s |
|
|
|
|
|
|
|
|
|
GENERATING SET DATA |
|
Voltage Regulation: |
≥ ± 5% |
|
Voltage Regulation,stead state: |
≤ ± 1% |
|
Sudden Voltage Warp(100% Sudden Reduce): |
≤ +25% |
|
Sudden Voltage Warp( Sudden Increase): |
≤ -20% |
|
Voltage Stable Time(100% Sudden Reduce): |
≤ 6S |
|
Voltage Stable Time(Sudden Increase): |
≤ 6S |
|
Frequency Regulation,Stead State: |
≤5 % |
|
Frequency Waving: |
≤1.5 % |
|
Sudden Frequency Warp(100% Sudden Reduce): |
≤ +12% |
|
Sudden Frequency Warp(Sudden Increase): |
≤ -10% |
|
Frequency Recovery Time(100% Sudden Reduce): |
≤ 5S |
|
Frequency Recovery Time(Sudden Increase): |
≤ 5S |
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.

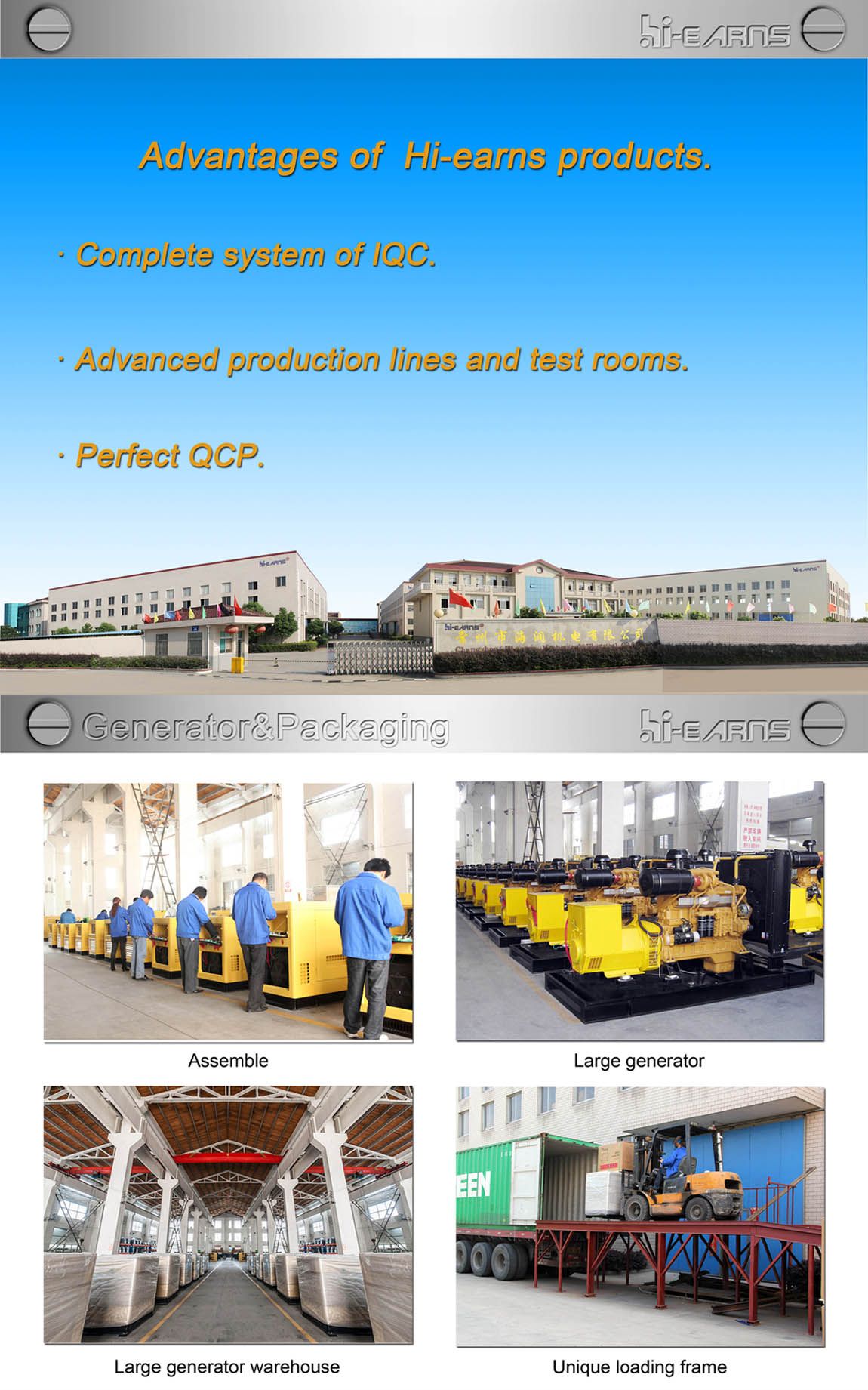

Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
