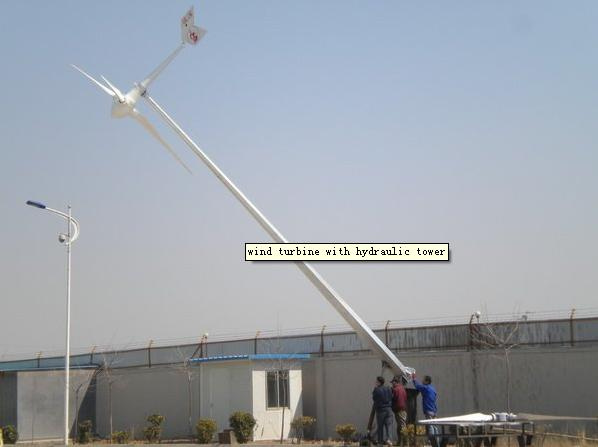

Tower is a significant part for the wind turbine generator system, and there are 3 outstanding merits from our newly-designed hydraulic tower:
Direct drive permanent magnet wind turbine
Simple installation & easy operation
Low start-up wind speed
Optimum shape design
High efficiency
Low noise
Maintenance-friendly
Transportation-friendly
The additional expenditure for purchasing hydraulic tower system is equal to the installation cost when installing conventional tower at the first time. There is no other additional expenditure for future maintenance involved, which will save the cost. Meanwhile, provided that several sets of towers are purchased, you merely need a set of hydraulic system.
|
Type |
Wind Power Generator |
|
Type of Machine |
Horizontal Axis |
|
Certificate |
CE, ISO9001 |
|
Insulation |
level B |
|
protection level |
IP54 |
|
blades material |
glass fiber reinforced plastics |
|
Type of System |
Off-Grid |
|
Generator Color |
White (Optional) |
|
Rated output power (KW): |
3 |
|
Max output power (KW) |
4.5 |
|
Material and number of blades |
: GFRP *3 |
|
Length of blades(m): |
5 |
|
Rotor diameter(m): |
5 |
|
Start-up wind speed(m/s |
3 |
|
Rated wind speed(m/s): |
8 |
|
Survival wind speed(m/s |
40 |
|
Rated rotate speed (rpm): |
260 |
|
Speed regulation method |
Pitch-controlled system |
|
Output control system |
Controller& Inverter |
|
Type of generator |
3 phase, Permanent magnet |
|
Packaging Details |
Carton\ Bundled\Wooden box or others |
|
|
|
Windpower Engery Co. Limited, located in Shenzhen, one of China's coastal cities, take advantage of the natural resources, we export wind power system to world wide.
We have years experience in exporting. We have gained prestige from our customers.
