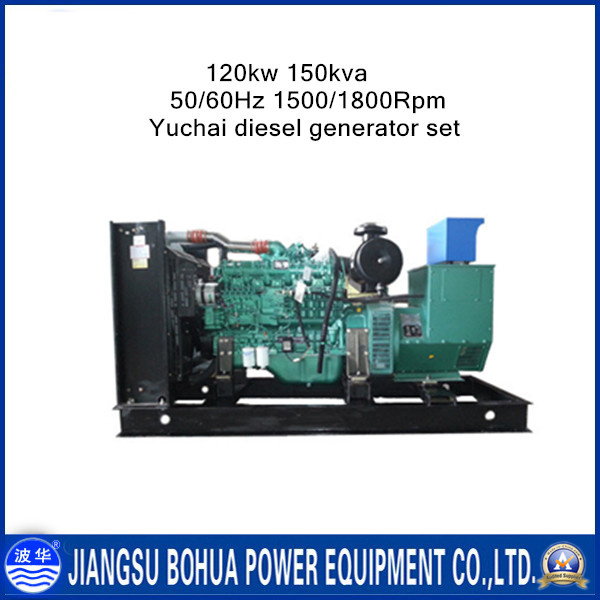

3 phase 4 wires Yuchai engine 150kva diesel generator
Engine introduction:
We use products of YC4, YC6 diesel engines produced by Yuchai Machinery Co., Ltd which have the advantages of compact structure, small volume, large power reserve, stable operation, excellent speed control performance and high reliability. The diesel engine applies to industrial and mining enterprises, post and telecommunications, transportation, shopping mall and hotels, government agencies and schools, as well as high-rise buildings as conventional power or standby emergency power. There is a service outlet within each 50 square kilometers in China and there are 30 more overseas service outlets which fill in gaps in our exportation of domestic famousbrand diesel engines to foreign country with a favorable after sale service system.
YC Engine features
1. Adopting technology from AVL Company, Europe;
2. Forged steel crankshaft made in a single piece and cylinder head made out of high -quality alloy cast iron, featruing with smaller in size, lighter in weight, less vibration, lower noise and higher reliability;
3. Yuchai sepical sealing technology for piston ring and oil sealing technology for valve, lowering oil consumption by 30% compared with all similar products of same power at home;
4. Equipped with electronic speed governor, ensuring stable operation;
5. Lower emission and lower noise are enviromentally friendly.
Optional accessories:
1. Soundproof enclosure
2. Trailer or movable power station
3. Automatic transfer switches(ATS)
4. Battery charger
5. Jacket water heater
6. Extra fuel tank
7. Fuel water sepatator
Warranty and maintenance:
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
Product package:
Export Wooden Case (Standard) or Plywood Case
Company introduction:
Jiangsu Bohua Power Equipment Co. Ltd is a technologyoriented enterprise and also a professional production and management enterprise, which integrates production, sale, leasing, parts and components, services of alternator and diesel generator set with its offices set up in the main cities of China.
Our factory have Cummins, Volvo, Deutz, Shangchai, Weichai, Yuchai etc brand generator set, and silent/low noise/spound-proof, mobile/ trailer generator.
1 |
Power |
KVA/KW |
150/120 |
2 |
Voltage |
V |
400/230 |
3 |
Frequency |
HZ |
50/60 |
4 |
Speed |
RPM |
1500/1800 |
5 |
Power factor |
|
0.8 |
6 |
Ambient temp |
ºC |
40 |
7 |
Altitude |
M |
1000 |
8 |
Cooling method |
|
A/W |
9 |
100% load fuel consumption |
L/wh |
≤0.25 |
10 |
Phase |
|
3 Phase |
11 |
Protection grade |
|
lp23 |
12 |
Insulation class |
|
H |
13 |
Temperature rise |
|
H |
14 |
Engine Model |
Yuchai |
YC6A210L-D21 |
15 |
Generator Model |
BOHUA |
274E |
We are Jiangsu Bohua Power Equipment Co., Ltd. in China. We supply diesel generator set with good quality and low price.
We main produce and sell diesel generator sets from3kw-3000kw.
We also provide custom solutions for special products based on customers requirment.
