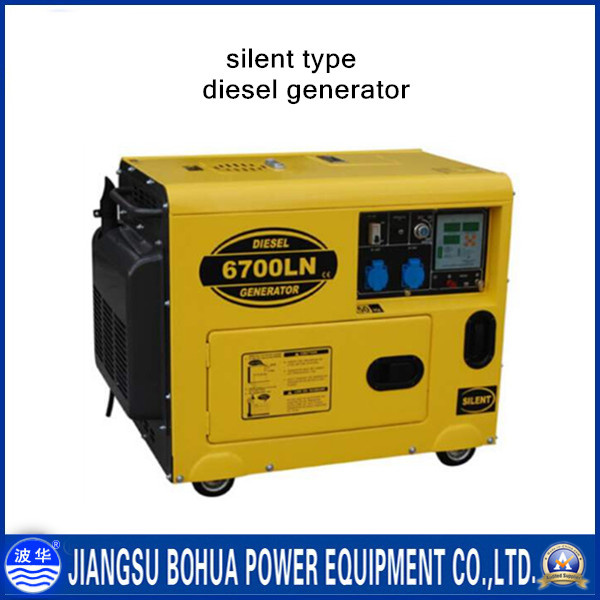

Silent type small power diesel engine generator
Diesel generator set
Diesel generator, portable diesel generator with 4 wheels, diesel generator professional export manufacturer. Diesel engine, diesel water pump, diesel generator and welder set, gasoline engine, gasoline generator set are also our best-selling products.
Introduction
Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power including 2KW, 3KW and 5KW Structural style: Open type, semi-open type, silent type. Single phase or three phase. Have CE(CONFORMITE EUROPEENNE) certificate. Have steady quality and competitive price.
Advantages:
1. Diesel generator set with CE
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
Optional accessories
Soundproof enclosure
Trailer or movable power station
Automatic transfer switches(ATS)
Battery charger
Jacket water heater
Extra fuel tank
Fuel water sepatator
Warranty and maintenance:
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
Product package:
1. Export Wooden Case (Standard) or Plywood Case
2. According to customer's requirements
Company introduction:
Jiangsu Bohua Power Equipment Co. Ltd is a technologyoriented enterprise and also a professional production and management enterprise, which integrates production, sale, leasing, parts and components, services of alternator and diesel generator set with its offices set up in the main cities of China.
Our factory have Cummins, Volvo, Deutz, Shangchai, Weichai, Yuchai etc brand generator set, and silent/low noise/spound-proof, mobile/ trailer generator.
|
Model Number |
|
HP3500T |
|
Rated frequency |
Hz |
50 60 |
|
Rated power |
KVA |
3.2 3.8 |
|
Rated voltage |
V |
115/230 120/240 |
|
Rated speed |
rpm |
3000 3600 |
|
Number of phase |
|
single phase |
|
Power factor |
|
1.0 |
|
Insulation class |
|
B |
|
Series |
|
2 |
|
Excitation Way |
|
automatic regulator |
|
Size: L×W×H |
|
830×532×740 |
|
Weight |
|
154 |
|
Noise level (7m) |
dB(A) |
72 |
|
Structure form |
|
silent type |
|
Type |
|
Single cylinder, vertical, four-stroke |
|
Cylinder No- bore ×stroke |
mm |
1-70×55 |
|
Total emission |
ml |
296 |
|
Compression ratio |
|
20:1 |
|
Cooling way |
|
air cooling |
|
Start way |
|
E |
|
Lubricating oil capacity |
L |
1.1 |
|
The capacity of start motor |
V-kW |
12V 0.8kW |
|
The capacity of charging generator |
V-A |
12V 3A |
|
Battery capacity |
V-Ah |
12V 36Ah |
|
Specific fuel consumption |
g/kW.h |
276.1 285.6 |
|
Fuel tank capacity |
L |
15 |
|
Continuous running time |
hr |
11 |
We are Jiangsu Bohua Power Equipment Co., Ltd. in China. We supply diesel generator set with good quality and low price.
We main produce and sell diesel generator sets from3kw-3000kw.
We also provide custom solutions for special products based on customers requirment.
