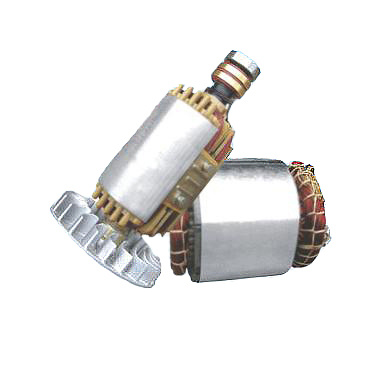

3-8kw Gasoline Generator Parts (Stator & Armature)
| Price: |
Negotiable |
| Min Order: |
1 |
| Pay Type: |
T/T |
1, Portable emergency power supply when working with gasoline generator;
2, Monophase or three phase current output;
3, Both Brush excitation and Brushless excitation model available;
4, AVR (automatic voltage regulator) makes the stable voltage output (brush excitation);
5, The capacitance compensation makes easy maintenance and reliable operation (brushless excitation).
6, Parts list: Stator + Armature(Include Ball Bearing & Radiator Fan) + Protect Plate +Electric Brush.
Type
| Rated Frequency
(HZ)
| Rated Power
(KW)
| Max. Output Power
(KW)
| Operation Method
| THDu%
| Phase
| External Dimension
|
Diameter D (mm)
| Length
L (mm)
| Matching
Taper
|
TFDW190-3.0
| 50/60
| 3.0
| 3.3
| S1
| ≤15%
| 1
| 190
| 85
| 1:5
|
TFD190-3.0
| 50/60
| 3.0
| 3.3
| S1
| ≤15%
| 1
| 190
| 85
| 1:5
|
TFD190-4.0
| 50/60
| 4.0
| 4.5
| S1
| ≤15%
| 1
| 190
| 125
| 1:5
|
TFD190-5.0
| 50/60
| 5.0
| 5.5
| S1
| ≤15%
| 1
| 190
| 140
| 1:5
|
TFS190-5.0
| 50/60
| 5.0
| 5.5
| S1
| ≤10%
| 3
| 190
| 140
| 1:5
|
TFDW190-5.0
| 50/60
| 5.0
| 5.5
| S1
| ≤15%
| 1
| 190
| 140
| 1:5
|
TFD190-6.5
| 50/60
| 6.5
| 7.0
| S1
| ≤15%
| 1
| 198
| 148
| 1:5
|
TFS190-6.5
| 50/60
| 6.5
| 7.0
| S1
| ≤10%
| 3
| 198
| 148
| 1:5
|
TFD190-7.0
| 50/60
| 7.0
| 7.8
| S1
| ≤15%
| 1
| 198
| 155
| 1:5
|
TFD190-8.0
| 60
| 8.0
| 8.5
| S1
| ≤15%
| 1
| 198
| 165
| 1:5
|
TFS190-8.0
| 60
| 8.0
| 8.5
| S1
| ≤10%
| 3
| 198
| 165
| 1:5
|
Insulation Class
| B (T≤85K) & F (T≤105K)
|
Power Factor (cosφ)
| cosφ=1
|
Rated Voltage (V)
| 110,115,120,220,230,240,110/220,120/240,230/400
|
DC Output
| No-DC Output
| DC Output 12V / 8.3A
|
Excitation
| TFD/TFS190 Type: Brush-excitation
| TFDW : Brushless-excitation
|
Taper ratio
| Honda engine matching taper is 1:5.333
|
| Prod Model: |
TFD/TFDW 190 Series |
