Rated frequency (Hz) 50 60
Rated voltage (V) 230 240/120
Rated current (A) 13 13. 8
Rated output power (kVA) 3 3. 3
Rated rotation speed (rpm ) 3000 3600
DC output 12V 8. 3A
Power factor cosφ 0. 8(lag)
Phase number single phase
Excitation mode AVR
Noise level dB (A)/7m (zero load ~full load ) 70~74
Overall dimension [mm (in)] (LxWxH )
830x520x740(32. 68x20. 47x29. 13)
Dry weight [kg (lbs)] 140(308)

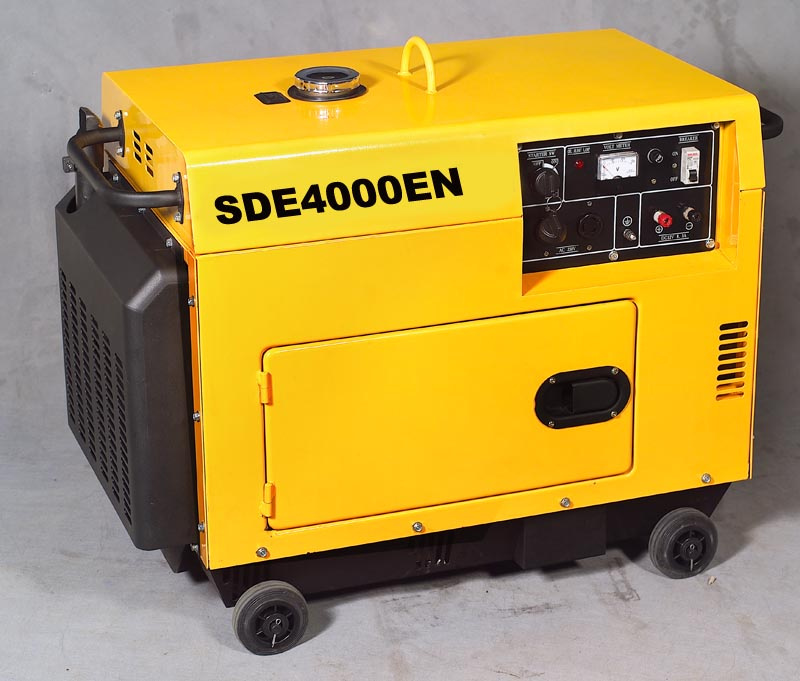

Structure model Silent type
Connection mode Single bearing, rotor drive shaft rigid coupling
Engine model SD178F
Engine type Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement [cm3 (cu-in)] 296(18. 06)
Compression ratio 20: 01
Rated power [kW (Hp)/rpm] 4. 0(5. 5)/3600
Rated rotation speed (rpm)
T. C. I with
Spark plug ----
Starting system Electric starting
Rotation direction (view from wheel) Clockwise
Fuel type 0# (summer ), -10# (winter)diesel oil
Lube brand SAE10W30 (above CC grade)
Low oil pressure alarm system With
