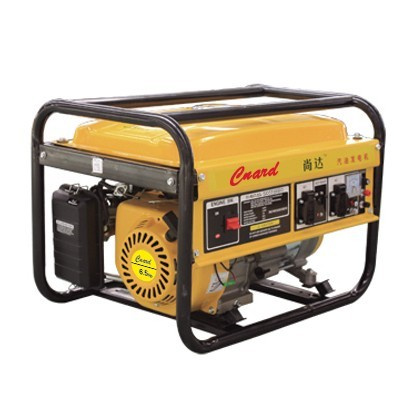

2kw single phase gasoline generator.
With CE, SONCAP, ISO9001: 2000 certificate.
|
SD2500 |
GASOLINE GENERATOR |
|
MODEL |
SD2500 |
|
Type |
Revolving field type 2-poles generator |
|
Voltage Regulate |
Capacitance & AVR |
|
AC Frequency(Hz) |
60 50 |
|
AC Output Voltage(V) |
110; 120; 110/120; 120/240 220; 230; 115/230 |
|
Rated. AC Output |
2400 2200 |
|
Max. AC Output |
2800 2400 |
|
DC Output |
12/8.3 |
|
Rated rotation speed(rpm) |
3600 |
|
Phase number |
Single phase |
|
Engine Model |
SD-168F |
|
Type |
Single cylinder, Air-cooled, 4-stroke; OHV |
|
Starting System |
Recoil/Electric |
|
Displacement(CC) |
163 |
|
Compression ratio |
8: 5: 1 |
|
Fuel Tank Capacity(L/gal) |
15/3.96 |
|
Packing Dimensions(mm) |
605*430*435 |
|
Net Weight(kg) |
43 |
|
Cont. work(h) |
18 |
|
Operating Noise Level(at 7m) |
66dB(A)/64dB(A) |
