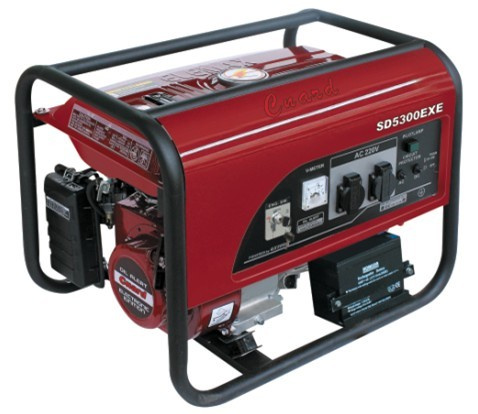

5kw single phase portable gasoline generator.
Electric/Recoil start, Aluminum/Copper wire, Hand and wheels are available
With CE, SONCAP, ISO9001: 2000 certificate.
|
SD3500 |
GASOLINE GENERATOR |
|
MODEL |
SD5500 |
|
Type |
Revolving field type 2-poles generator |
|
Voltage Regulate |
Capacitance & AVR |
|
AC Frequency(Hz) |
60 50 |
|
AC Output Voltage(V) |
110; 120; 110/120; 120/240 220; 230; 115/230 |
|
Rated. AC Output |
5000 4500 |
|
Max. AC Output |
5500 5000 |
|
DC Output |
12/8.3 |
|
Rated rotation speed(rpm) |
3600 |
|
Phase number |
Single phase |
|
Engine Model |
SD-390 |
|
Type |
Single cylinder, Air-cooled, 4-stroke; OHV |
|
Starting System |
Recoil/Electric |
|
Displacement(CC) |
389 |
|
Compression ratio |
8: 5: 1 |
|
Fuel Tank Capacity(L/gal) |
25/6.6 |
|
Packing Dimensions(mm) |
690*520*545 |
|
Net Weight(kg) |
88 |
|
Cont. work(h) |
24/25 |
|
Operating Noise Level(at 7m) |
72dB(A)/70dB(A) |
Anhui An Er Da Machinery & Electrical Co., Ltd was founded in April, 2007, located in Tianchang City, Anhui province where is nearby Shanghai and Nanjing. With a plot of 53000 square meters, there are over 150 workers and 18 senior engineers, technical advisers, middle level all full time technicians in company.
As one of the leading manufacturers, we produce generators, water pumps and engines, etc. The organizational quality system involves every aspect of our process. Everyone who works for or with the company is empowered and expected to maintain the highest standards of quality in products. The company has approved ISO9001 quality system certificate while most of the products have approved the CE certificate. The company also enjoys a high prestige at home and abroad.
We believes that our people and our brands(Cnard, SHANG DA) are the two core assets on which the manufacturer is built. Each plays a vital role in the promise to benefit every customer. We sincerely hopes to have opportunities to cooperate with internal and external friends.
