WIND GENERATOR, WIND TURBINE, WIND POWER SYSTEM
Key Technology
NPS-2KW wind turbine: 1. Yawing technology 2. manual bake
Technical characteristic
1. Special yawing design: exactly regulate wind rotor rotating speed, automatic yawing when wind speed is over rated wind speed. No slow-moving
2. Anti-fatigue tail vane: tail vane adopts new material, spring design, improve anti-fatigue largely, extend service life.
3. Pure mechanical structure, failure rate lower.
Application field
GSM base station, forest-fire prevention, monitor system, sight lighting, island, sentry post, boats, agriculture and so on.
NPS-2KW pitch controlled wind turbine output power curve
Strict Testing

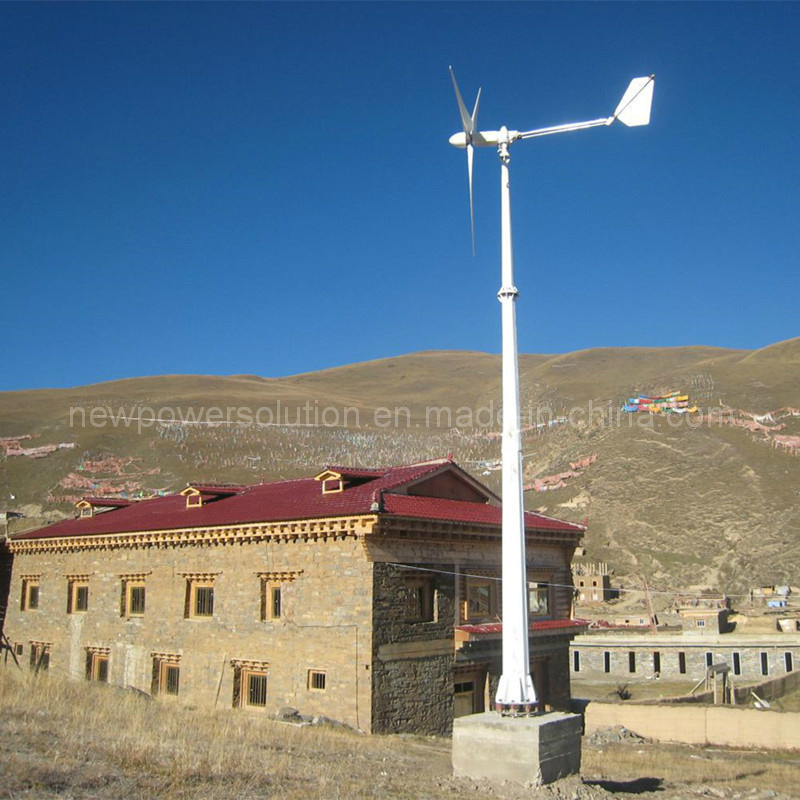

Project Case Pictures
NPS-2KW pitch controlled wind turbine technical parameters
|
Model |
NPS-2kW |
|
Wind rotor diameter(m) |
3.4 |
|
Blade material & quality |
Reinforced fiber glass*3 |
|
Rated power(W)/maximum power(W) |
2000/2500 |
|
Rated wind speed (m/s) |
10 |
|
Rated rotating speed (r/min) |
400 |
|
Working wind speed (m/s) |
3-25 |
|
Start-up wind speed (m/s) |
3 |
|
Survive wind speed (m/s) |
50 |
|
Rated voltage(V) |
DC48/DC120 |
|
Regulation method |
Yawing |
|
Stop method |
Manual brake |
|
Generator type |
Three phase, permanent magnet generator |
|
Wind turbine body weight (kg) |
120 |
|
Guyed tower height/weight(m/kg) |
7/100 |
|
Tilt-up tower height /weight (m/kg) |
7/350 |
