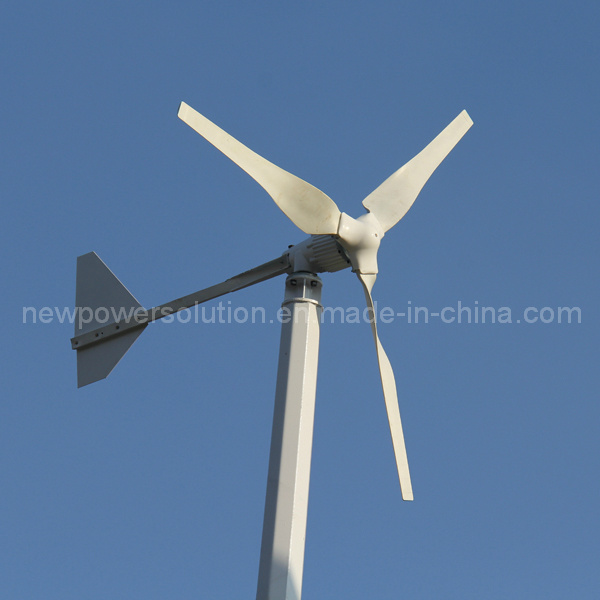

2kW WIND GENERATOR, WIND TURBINE, WIND POWER SYSTEM
Technical characteristic
1. Casting aluminum alloy body, compact, little vibration
2.2kw wind generator, excellent output
3. Easy installation, tube or flange connection optional
4. Blades matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.
5. Tail adopts mechanical yaw technique, making it survive storm and run safely
6. Patented permanent magnet ac generator with special stator, effectively reduce torque, ensure the performance of whole system.
NPS-W2KW yawing wind turbine technical parameters
|
Model |
NPS-W2kW |
|
Rated power |
2000w |
|
Maximum power |
2300w |
|
Rated voltage |
48/96v |
|
Start-up wind speed |
3m/s |
|
Rated wind speed |
11m/s |
|
Survival wind speed |
45m/s |
|
Top net weight |
43kg |
|
Wheel diameter |
3.2m |
|
Number of blades |
3 |
|
Blades material |
Nylon fiber/reinforced glass fiber |
|
Generator |
Three phase permanent magnet ac synchronous generator |
|
Magnet |
NdFeB |
|
Generator case |
Casting aluminum alloy |
|
Control system |
Electromagnet/wind wheel yaw |
|
Speed regulation |
Tail furling |
|
Working temperature |
-40ºC-80ºC |
|
tower height (m) |
6( 3m*2) |
|
Cable tower size(mm) |
Φ89*4 |
|
Suggested solar panels(W) |
600-1000 |
|
wind solar hybrid controller(w) |
2000w |
|
Suggested Inverter |
2000w |
|
Batteries(AH) |
250AH*4 |
|
can supply power for |
TV,Lighting, charging,Fan,water pump |
