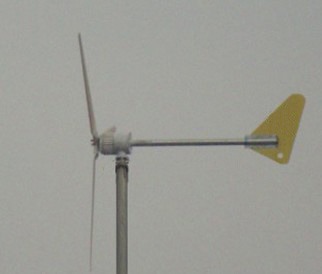

2KW Horizontal Wind Turbine Generators (E-2000)
Model E-2000
Rated voltage(DCV) 48/120
Rated current(DCA) 41/20
Rated power(W) 2000
Start-uo wind speed(m/s) 2.5
Rated wind speed(m/s) 12
Security wind speed(m/s) 45
Generator type PMG
Rotor diameter(m) 3.2
Designed life time(year) 15-20
Gross weight(kgs) 220
|
Brand Name |
Saip |
|
Model Number |
S-400 |
|
Type |
Wind Power Generator |
|
Rated power |
600w |
|
Rated voltage (DCV): |
24 or 48 |
|
Rotor diameter(M): |
1.5 |
|
Rated current(A): |
16 or 8 |
|
Security wind speed(m/s): |
45 |
|
wind turbine type |
permanent magnet synchronous... |
|
Yaw mode |
mechanical |
|
wind turbine work life(year): |
15-20 |
|
Blade material |
carbon fiber |
|
Guy cable tower height |
6 |
|
Model |
S-400 |
S-600 |
S-1000 |
|
Rated power(W) |
400 |
600 |
1000 |
|
Rated voltage (DCV) |
24 or 48 |
24 or 48 |
24 or 48 |
|
Rated current(A) |
16 or 8 |
25 or 12.5 |
41/20 |
|
Rotor diameter(M) |
1.5 |
1.6 |
1.8 |
|
Start-up wind speed(m/s) |
2.5 |
2.5 |
2.5 |
|
Rated wind speed/FONT>m/s |
9.6 |
10.5 |
13 |
|
Security wind speed(m/s) |
45 |
45 |
45 |
|
wind turbine type |
permanent magnet synchronous generator |
permanent magnet synchronous generator |
permanent magnet synchronous generator |
|
Yaw mode |
mechanical |
mechanical |
mechanical |
|
wind turbine work life(year) |
15-20 |
15-20 |
15-20 |
|
Blade material |
carbon fiber |
carbon fiber |
carbon fiber |
|
Blade quantity |
3 or 5 |
3 or 5 |
3 |
|
Guy cable tower height |
6 |
6 |
6 |
|
Matched inverter type |
sine wave |
sine wave |
sine wave |
